Is the Nickel-Plated Brass Adapter, Type A5, with BSPT Male / BSP Female Threads suitable for use at 60 bar in pneumatic systems?

Yes — the Nickel-Plated Brass Adapter, Type A5, with BSPT Male / BSP Female Threads is suitable for use at 60 bar in pneumatic systems. The product description states it is designed to operate at working pressures up to 60 bar and is made from durable nickel‑plated brass for corrosion and wear resistance. For reliable, leak‑free performance at this pressure, follow sealing recommendations: use PTFE (Teflon) tape or thread sealant on tapered BSPT threads, and aluminum or copper washers for cylindrical BSP female connections. Ensure all fittings and hoses in the system are also rated for 60 bar and that installation torque and sealing practices are correct to maintain system safety.

Can the Nickel-Plated Brass Adapter, Type A5, with BSPT Male / BSP Female Threads be used with standard pneumatic hoses and fittings from different manufacturers without compatibility issues?

Yes — the Nickel-Plated Brass Adapter, Type A5, with BSPT Male / BSP Female Threads can generally be used with standard pneumatic hoses and fittings from different manufacturers, but with two important caveats: 1. Thread type match: The adapter uses an external BSPT (tapered) male and internal BSP (cylindrical) female. Ensure the mating components have the corresponding BSPT or BSP thread forms (and correct sizes). Mismatching taper vs. parallel threads or different standards (NPT, metric, etc.) will lead to poor fit or leaks. 2. Proper sealing: Because the adapter includes a tapered BSPT male, use Teflon tape or thread sealant for leak‑free joints; for the cylindrical BSP female side, use the correct aluminum or copper washer where required. Following these sealing recommendations prevents leaks and maintains pressure integrity up to the adapter’s 60 bar rating. In short: compatibility is high with standard pneumatic hoses/fittings from other manufacturers if the thread standards and sizes match and you apply the recommended sealing method.

Nickel-Plated Brass Adapter, Type A5, with BSPT Male / BSP Female Threads

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

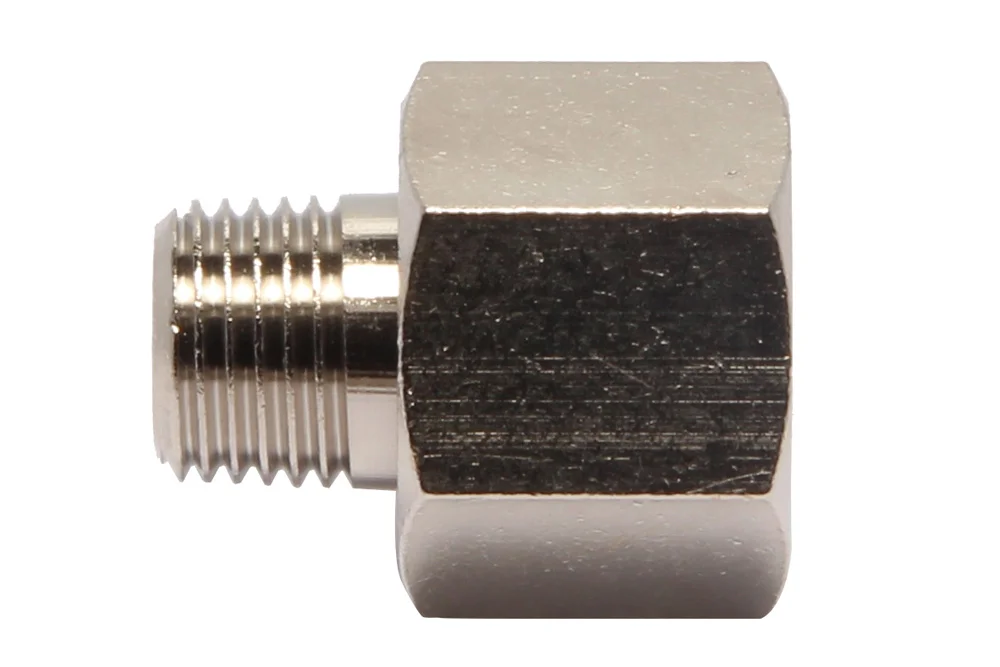

The A5 adaptor with external BSPT thread and internal BSP connection is a reliable solution for joining pneumatic components, including hoses, in demanding industrial environments. Manufactured from durable nickel‑plated brass, it ensures excellent resistance to corrosion and mechanical wear, while maintaining a professional appearance. Designed to operate at working pressures up to 60 bar, it provides secure and stable connections even under intensive use. To guarantee leak‑free performance, additional sealing is recommended: tapered threads are best paired with Teflon tape or sealant, while cylindrical threads achieve optimal tightness with aluminum or copper washers. This versatile adaptor combines strength, precision, and ease of installation, making it an essential element for efficient and safe pneumatic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2105001	Adaptor A5, GW BSP 1/8" / GZ BSPT 1/8"	-	60	In stock	Enquiry
MW-2105002	Adaptor A5, GW BSP 1/4" / GZ BSPT 1/8"	-	60	In stock	Enquiry
MW-2105003	Adaptor A5, GW BSP 1/4" / GZ BSPT 1/4"	-	60	In stock	Enquiry
MW-2105004	Adaptor A5, GW BSP 3/8" / GZ BSPT 1/4"	-	60	In stock	Enquiry
MW-2105005	Adaptor A5, GW BSP 3/8" / GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2105006	Adaptor A5, GW BSP 1/2" / GZ BSPT 3/8"	-	60	In stock	Enquiry
MW-2105007	Adaptor A5, GW BSP 1/2" / GZ BSPT 1/2"	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The A5 adaptor with external BSPT thread and internal BSP connection is a reliable solution for joining pneumatic components, including hoses, in demanding industrial environments. Manufactured from durable nickel‑plated brass, it ensures excellent resistance to corrosion and mechanical wear, while maintaining a professional appearance. Designed to operate at working pressures up to 60 bar, it provides secure and stable connections even under intensive use. To guarantee leak‑free performance, additional sealing is recommended: tapered threads are best paired with Teflon tape or sealant, while cylindrical threads achieve optimal tightness with aluminum or copper washers. This versatile adaptor combines strength, precision, and ease of installation, making it an essential element for efficient and safe pneumatic systems.
