Is the Adaptor – BSP Male Nipple, Carbon Steel, Type A101 compatible with all standard BSP hydraulic ports and operating pressures?

Adaptor – BSP Male Nipple, Carbon Steel, Type A101 is designed to be compatible with standard external BSP hydraulic ports that use a 60° cone sealing system. Its precision‑cut external BSP threads and accurate geometry ensure a secure, leak‑free fit with matching BSP female ports. Manufactured from robust carbon steel and zinc‑galvanized for corrosion resistance, the A101 is engineered for high‑pressure applications and offers reliable performance under extreme operating conditions. However, compatibility depends on matching thread type, size, and the 60° cone sealing interface; it will not be compatible with non‑BSP thread standards (e.g., NPT, metric parallel without cone, or JIC) or mismatched thread sizes. Also, while the A101 is built for high pressures, you should verify the adapter’s specific pressure rating against your system’s maximum operating pressure and any applicable safety factors or certifications before use.

Does the Adaptor – BSP Male Nipple, Carbon Steel, Type A101 require specific torque values or installation tools to ensure a leak‑free 60° cone seal?

Adaptor – BSP Male Nipple, Carbon Steel, Type A101 does not list specific torque values or special tools in the provided description. However, because it uses precision‑cut BSP external threads with a 60° cone sealing system and is intended for high‑pressure applications, achieving a leak‑free seal typically requires: - Proper torque: Use manufacturer or industry‑standard torque figures for BSP male fittings of the given size and material (carbon steel). If no value is supplied, consult BSP torque charts or the adapter vendor for exact numbers. - Correct installation practice: Clean threads and mating surfaces, inspect the 60° cone for damage, and align fittings before tightening. - Appropriate tools: Standard spanners/wrenches sized to the fitting are normally sufficient; avoid overtightening with cheater bars. For critical/high‑pressure systems, use a calibrated torque wrench to ensure consistent torque. - Seal inspection and testing: After installation, perform a pressure/leak test per system specifications. For precise torque values and any special tooling recommendations, request the manufacturer’s installation data or technical datasheet for Adaptor – BSP Male Nipple, Carbon Steel, Type A101.

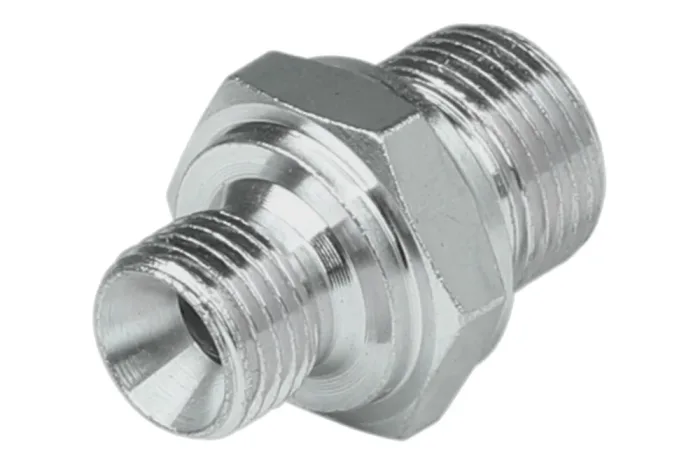

Adapter – nipple BSP male, steel carbon, type A101

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

Hydraulic high-pressure adapter, type A101, with threads external BSP (sealing 60° cone). Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-A101-02-02	Adapter 1/8" BSP male / 1/8" BSP male	-	400	In stock	Enquiry
TI-A101-02-04	Adapter 1/8" BSP male / 1/4" BSP male	-	400	In stock	Enquiry
TI-A101-02-06	Adapter 1/8" BSP male / 3/8" BSP male	-	400	In stock	Enquiry
TI-A101-02-08	Adapter 1/8" BSP male / 1/2" BSP male	-	350	In stock	Enquiry
TI-A101-04-04	Adapter 1/4" BSP male / 1/4" BSP male	-	400	In stock	Enquiry
TI-A101-04-06	Adapter 1/4" BSP male / 3/8" BSP male	-	400	In stock	Enquiry
TI-A101-04-08	Adapter 1/4" BSP male / 1/2" BSP male	-	350	In stock	Enquiry
TI-A101-04-10	Adapter 1/4" BSP male / 5/8" BSP male	-	350	In stock	Enquiry
TI-A101-04-12	Adapter 1/4" BSP male / 3/4" BSP male	-	315	In stock	Enquiry
TI-A101-04-16	Adapter 1/4" BSP male / 1" BSP male	-	250	In stock	Enquiry
TI-A101-06-06	Adapter 3/8" BSP male / 3/8" BSP male	-	400	In stock	Enquiry
TI-A101-06-08	Adapter 3/8" BSP male / 1/2" BSP male	-	350	In stock	Enquiry
TI-A101-06-10	Adapter 3/8" BSP male / 5/8" BSP male	-	350	In stock	Enquiry
TI-A101-06-12	Adapter 3/8" BSP male / 3/4" BSP male	-	315	In stock	Enquiry
TI-A101-06-16	Adapter 3/8" BSP male / 1" BSP male	-	250	In stock	Enquiry
TI-A101-08-08	Adapter 1/2" BSP male / 1/2" BSP male	-	350	In stock	Enquiry
TI-A101-08-10	Adapter 1/2" BSP male / 5/8" BSP male	-	350	In stock	Enquiry
TI-A101-08-12	Adapter 1/2" BSP male / 3/4" BSP male	-	315	In stock	Enquiry
TI-A101-08-16	Adapter 1/2" BSP male / 1" BSP male	-	250	In stock	Enquiry
TI-A101-08-20	Adapter 1/2" BSP male / 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A101-08-24	Adapter 1/2" BSP male / 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A101-10-10	Adapter 5/8" BSP male / 5/8" BSP male	-	350	In stock	Enquiry
TI-A101-10-12	Adapter 5/8" BSP male / 3/4" BSP male	-	315	In stock	Enquiry
TI-A101-10-16	Adapter 5/8" BSP male / 1" BSP male	-	250	In stock	Enquiry
TI-A101-12-12	Adapter 3/4" BSP male / 3/4" BSP male	-	315	In stock	Enquiry
TI-A101-12-16	Adapter 3/4" BSP male / 1" BSP male	-	250	In stock	Enquiry
TI-A101-12-20	Adapter 3/4" BSP male / 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A101-12-24	Adapter 3/4" BSP male / 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A101-16-16	Adapter 1" BSP male / 1" BSP male	-	250	In stock	Enquiry
TI-A101-16-20	Adapter 1" BSP male / 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A101-16-24	Adapter 1" BSP male / 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A101-16-32	Adapter 1" BSP male / 2" BSP male	-	125	In stock	Enquiry
TI-A101-20-20	Adapter 1.1/4" BSP male / 1.1/4" BSP male	-	200	In stock	Enquiry
TI-A101-20-24	Adapter 1.1/4" BSP male / 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A101-20-32	Adapter 1.1/4" BSP male / 2" BSP male	-	125	In stock	Enquiry
TI-A101-24-24	Adapter 1.1/2" BSP male / 1.1/2" BSP male	-	160	In stock	Enquiry
TI-A101-24-32	Adapter 1.1/2" BSP male / 2" BSP male	-	125	In stock	Enquiry
TI-A101-32-32	Adapter 2" BSP male / 2" BSP male	-	125	In stock	Enquiry
TI-A101-32-40	Adapter 2" BSP male / 2.1/2" BSP male	-		In stock	Enquiry
TI-A101-32-48	Adapter 2" BSP male / 3" BSP male	-		In stock	Enquiry
TI-A101-40-40	Adapter 2.1/2" BSP male / 2.1/2" BSP male	-		In stock	Enquiry
TI-A101-40-48	Adapter 2.1/2" BSP male / 3" BSP male	-		In stock	Enquiry
TI-A101-48-48	Adapter 3" BSP male / 3" BSP male	-		In stock	Enquiry
