Is the Adaptor for UHP with GZ, Black Galvanized Steel, Type 199501611 rated for continuous use at 3000 bar in UHP hydraulic systems?

Adaptor for UHP with GZ, Black Galvanized Steel, Type 199501611 is rated for continuous use at up to 3000 bar in UHP hydraulic systems. The product description specifies a working pressure capacity of up to 3000 bar and highlights robust black galvanized steel construction, precise BSP (120° cone) and UNF (60° cone) sealing interfaces for secure, leak-free connections, and suitability for extreme operating conditions—indicating it is intended for sustained service at that pressure.

Can the Adaptor for UHP with GZ, Black Galvanized Steel, Type 199501611 be used with different quick couplings and UHP hoses without adapters?

Adaptor for UHP with GZ, Black Galvanized Steel, Type 199501611 can be used with different quick couplings and UHP hoses provided their connections match the adapter’s threads and cone seals. The adapter features an external BSP thread with a 120° cone seal and an external UNF thread with a 60° cone seal, so compatibility requires mating parts that accept those specific thread standards and cone angles. When matched correctly, the precision seals ensure secure, leak-free connections without additional adapters, supporting reliable operation up to 3000 bar. If couplings or hoses use different thread forms, sizes, or seal geometries, an additional adapter will be needed to achieve a proper, safe connection.

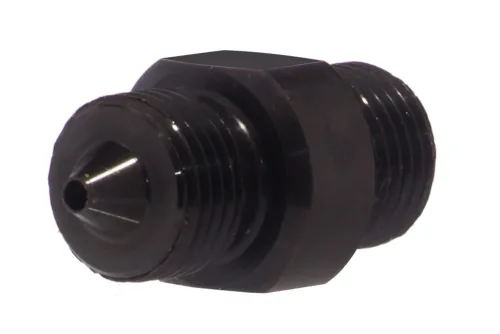

Adaptor for UHP with GZ, Black Galvanized Steel, Type 199501611

All products, UHP adapters and accessories/

Additional information

Material	CS – steel (cast iron)

The adapter is designed for maximum reliability in ultra-high-pressure applications, featuring an external BSP thread with a 120° cone seal and an external UNF thread with a 60° cone seal. This precise configuration ensures secure and leak-free connections between quick couplings, UHP hoses, and UHP connection blocks, making it an essential component in demanding hydraulic systems. Manufactured from robust black galvanized steel, the adapter offers outstanding resistance to wear, corrosion, and mechanical stress, guaranteeing long-lasting performance even under extreme operating conditions. With an impressive working pressure capacity of up to 3000 bar, it provides the strength and durability required for the most challenging industrial environments. Its versatile design allows seamless integration into existing systems, reducing downtime and enhancing operational efficiency. This makes it an ideal solution for professionals seeking dependable, high-performance components that ensure safety, reliability, and precision in every application.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
CJ-HP-199501611	Adaptor GZ 1/4" male 120° / GZ 3/4"-16 UNF male 60°, 3000 bar	-	3000

The adapter is designed for maximum reliability in ultra-high-pressure applications, featuring an external BSP thread with a 120° cone seal and an external UNF thread with a 60° cone seal. This precise configuration ensures secure and leak-free connections between quick couplings, UHP hoses, and UHP connection blocks, making it an essential component in demanding hydraulic systems. Manufactured from robust black galvanized steel, the adapter offers outstanding resistance to wear, corrosion, and mechanical stress, guaranteeing long-lasting performance even under extreme operating conditions. With an impressive working pressure capacity of up to 3000 bar, it provides the strength and durability required for the most challenging industrial environments. Its versatile design allows seamless integration into existing systems, reducing downtime and enhancing operational efficiency. This makes it an ideal solution for professionals seeking dependable, high-performance components that ensure safety, reliability, and precision in every application.
