Is the Adaptor – Quadrant GZ BSP, Carbon Steel, Type A125 compatible with both metric and BSPP threaded hydraulic components?

Adaptor – Quadrant GZ BSP, Carbon Steel, Type A125 is specifically manufactured with BSP (British Standard Pipe) external threads and a 60° cone sealing. It is therefore fully compatible with BSPP/BSP threaded hydraulic components that match the same thread size and cone sealing standard. It is not inherently compatible with metric-threaded components unless an appropriate adapter or conversion fitting is used to match thread form and sealing method. Always verify thread type and size before assembly to ensure leak-free and secure connections.

Does the Adaptor – Quadrant GZ BSP, Carbon Steel, Type A125 require a specific torque setting for proper installation to ensure leak-free 60° cone sealing?

Adaptor – Quadrant GZ BSP, Carbon Steel, Type A125 Format: The product description emphasizes precise BSP threading and 60° cone sealing for secure, leak-free connections but does not specify a numeric torque setting. For proper installation and reliable 60° cone sealing, follow these general best practices: use manufacturer or system supplier torque recommendations when available; tighten to achieve full thread engagement without overloading threads or deforming the cone; apply a calibrated torque wrench and tighten progressively in stages; ensure mating surfaces are clean and undamaged; use correct thread sealant if specified for BSP external threads. If no torque value is provided by the manufacturer, consult the hydraulic system designer, component supplier, or relevant BSP torque charts for comparable carbon-steel fittings to determine an appropriate torque range to ensure leak-free sealing without risking damage.

Adaptor – Quadrant GZ BSP, Carbon Steel, Type A125

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

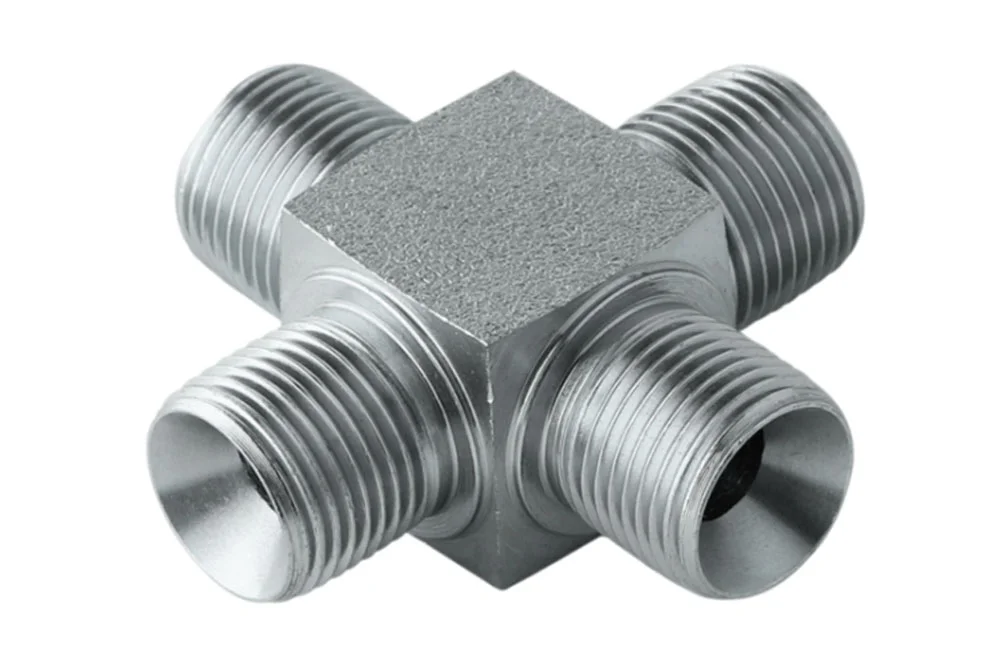

The A125 high-pressure four-way adaptor with external BSP thread and 60° cone sealing is a robust and reliable solution designed for demanding hydraulic applications. Manufactured from premium carbon steel and finished with a durable galvanization layer, it ensures excellent resistance to corrosion, mechanical stress, and wear, even under extreme operating conditions. Its precise BSP threading guarantees secure and leak-free connections, while the four-way configuration allows for versatile system integration, enabling efficient fluid distribution and optimized installation flexibility. Engineered for performance and durability, this adaptor is an ideal choice for industries requiring dependable hydraulic fittings, such as construction, agriculture, manufacturing, and heavy machinery. By combining strength, precision, and long-lasting protection, the A125 adaptor delivers consistent reliability and helps maximize the efficiency and safety of hydraulic systems.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TI-A125-02	Four-way connector 4 x GZ BSP 1/8"	-	400
TI-A125-04	Four-way fitting 4 x GZ BSP 1/4"	-	400
TI-A125-06	Four-way connector 4 x GZ BSP 3/8"	-	400
TI-A125-08	Four-way fitting 4 x GZ BSP 1/2"	-	350
TI-A125-12	Four-way fitting 4 x GZ BSP 3/4"	-	315
TI-A125-16	Four-way fitting 4 x G threaded BSP 1"	-	250
TI-A125-20	Four-way connector 4 x GZ BSP 1.1/4"	-	200
TI-A125-24	Four-way fitting 4 x G threaded BSP 1.1/2"	-	160
TI-A125-32	Four-way fitting 4 x GZ BSP 2"	-	125

The A125 high-pressure four-way adaptor with external BSP thread and 60° cone sealing is a robust and reliable solution designed for demanding hydraulic applications. Manufactured from premium carbon steel and finished with a durable galvanization layer, it ensures excellent resistance to corrosion, mechanical stress, and wear, even under extreme operating conditions. Its precise BSP threading guarantees secure and leak-free connections, while the four-way configuration allows for versatile system integration, enabling efficient fluid distribution and optimized installation flexibility. Engineered for performance and durability, this adaptor is an ideal choice for industries requiring dependable hydraulic fittings, such as construction, agriculture, manufacturing, and heavy machinery. By combining strength, precision, and long-lasting protection, the A125 adaptor delivers consistent reliability and helps maximize the efficiency and safety of hydraulic systems.
