What is the maximum working pressure and temperature range for the ANFOR Lever Connector Socket with Hose End, Galvanized Steel, Type A.7?

The ANFOR Lever Connector Socket with Hose End, Galvanized Steel, Type A.7 has a working pressure range from 5 bar up to 19 bar (maximum 19 bar, depending on connector size) and an operating temperature range of -20°C to +50°C.

How should the ANFOR Lever Connector Socket with Hose End, Galvanized Steel, Type A.7 be maintained to ensure long-term corrosion and seal performance?

To ensure long-term corrosion resistance and reliable seal performance for the ANFOR Lever Connector Socket with Hose End, Galvanized Steel, Type A.7, follow these maintenance guidelines: - Regular inspection: Visually check the connector, hose tail and lever mechanism before and after use for signs of corrosion, mechanical damage, wear or deformation. Inspect the NR/SBR rubber seal for cuts, hardening, swelling or cracking. - Cleaning: Rinse the connector and hose end with fresh water after exposure to soil, salt, chemicals or wastewater. For stubborn deposits use a soft brush and mild detergent; avoid aggressive solvents or abrasive tools that could damage the galvanised coating or rubber seal. - Drying and storage: After cleaning, dry the coupling thoroughly to minimise corrosion. Store disconnected connectors in a dry, shaded area away from direct sunlight and extreme temperatures to protect the galvanised surface and the NR/SBR seal. - Lubrication and moving parts: Lightly lubricate pivot points of the lever with a corrosion-inhibiting, non-petroleum-based lubricant compatible with rubber (silicone or PTFE-based) to ensure smooth operation and prevent wear. Avoid over-lubrication that can attract dirt. - Seal replacement: Replace the NR/SBR seal at first signs of aging or damage, or on a preventive schedule based on frequency of use and operating conditions. Keep spare seals on hand for quick replacement to prevent leaks. - Protective measures: In highly corrosive environments (marine or chemical exposure), consider additional protective coatings or frequent rinsing and inspections. Use compatible hose materials and clamps to avoid galvanic corrosion. - Pressure and temperature checks: Operate within the specified working pressure (5–19 bar depending on size) and temperature range (-20°C to +50°C). Avoid pressure spikes and temperature excursions that can degrade the seal or galvanised finish. Following these practices will maximise the service life, maintain leak-tight performance and reduce downtime for the ANFOR Lever Connector Socket with Hose End, Galvanized Steel, Type A.7.

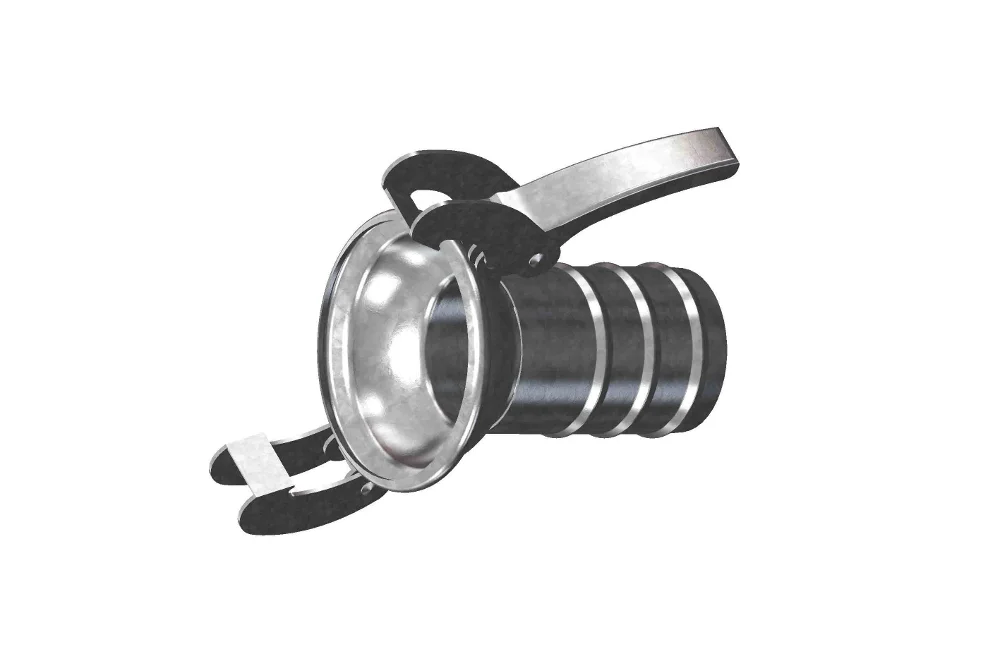

ANFOR Lever Connector Socket with Hose End, Galvanized Steel, Type A.7

All products, Lever couplings/

Additional information

Material	CS – steel (cast iron)

The ANFOR lever connector socket with hose tail is a durable and versatile solution designed for demanding applications across agriculture, horticulture, industry, construction, road and tunnel engineering, groundwater drainage, wastewater treatment, sewage discharge, and environmental protection projects. Manufactured from high-quality galvanized steel, it ensures excellent resistance to corrosion and mechanical wear, while the NR/SBR rubber sealing provides a reliable, leak-proof connection even under intensive use. With a working pressure range from 5 bar up to 19 bar, depending on the connector size, this coupling guarantees safe and efficient performance in both light and heavy-duty operations. Its operating temperature span from -20°C to +50°C makes it suitable for year-round use in diverse environments, ensuring consistent functionality in both cold and warm conditions. Engineered for quick assembly and secure fastening, the ANFOR lever connector socket with tail is the ideal choice for professionals seeking robust, long-lasting, and easy-to-use hose connections that optimize workflow and minimize downtime.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
OM-A7-060-060	ANFOR socket 60 mm with end for hose 60 mm, galvanized steel.	60	19	In stock	Enquiry
OM-A7-080-080	ANFOR socket 80 mm with end for hose 80 mm, galvanized steel.	80	16	In stock	Enquiry
OM-A7-100-100	ANFOR socket 100 mm with end for hose 100 mm, galvanized steel.	100	14	In stock	Enquiry
OM-A7-120-120	ANFOR socket 120 mm with end for hose 120 mm, galvanized steel.	120	13	In stock	Enquiry
OM-A7-150-150	ANFOR socket 150 mm with end for hose 150 mm, galvanized steel.	150	12	In stock	Enquiry
OM-A7-200-200	ANFOR socket 200 mm with end for hose 200 mm, galvanized steel.	200	6	In stock	Enquiry
OM-A7-250-250	ANFOR socket 250 mm with end for hose 250 mm, galvanized steel.	250	5	In stock	Enquiry
OM-A7-300-300	ANFOR socket 300 mm with end for hose 300 mm, galvanized steel.	300	5	In stock	Enquiry
OM-A7-400-400	ANFOR socket 400 mm with end for hose 400 mm, galvanized steel.	400	5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The ANFOR lever connector socket with hose tail is a durable and versatile solution designed for demanding applications across agriculture, horticulture, industry, construction, road and tunnel engineering, groundwater drainage, wastewater treatment, sewage discharge, and environmental protection projects. Manufactured from high-quality galvanized steel, it ensures excellent resistance to corrosion and mechanical wear, while the NR/SBR rubber sealing provides a reliable, leak-proof connection even under intensive use. With a working pressure range from 5 bar up to 19 bar, depending on the connector size, this coupling guarantees safe and efficient performance in both light and heavy-duty operations. Its operating temperature span from -20°C to +50°C makes it suitable for year-round use in diverse environments, ensuring consistent functionality in both cold and warm conditions. Engineered for quick assembly and secure fastening, the ANFOR lever connector socket with tail is the ideal choice for professionals seeking robust, long-lasting, and easy-to-use hose connections that optimize workflow and minimize downtime.
