Is the BURGACLIP 45° Steel Tip with GW UNF ORFS, Type 54502 compatible with 3090 type air conditioning hoses and standard ORFS flat-seal ports?

Yes. The BURGACLIP 45° Steel Tip with GW UNF ORFS, Type 54502 is designed specifically for use with 3090 type air conditioning hoses and features an internal UNF ORFS thread with a flat (ORFS) seal. It provides a precise, durable connection between rubber 3090 hoses and standard ORFS flat-seal ports, offering pressure and wear resistance and a leak-free 45° installation. Clips and clamps are sold separately for a complete assembly.

Can the BURGACLIP 45° Steel Tip with GW UNF ORFS, Type 54502 withstand sustained high-pressure cycles in heavy-duty automotive A/C systems?

Yes — the BURGACLIP 45° Steel Tip with GW UNF ORFS, Type 54502 is engineered to endure sustained high-pressure cycles typical of heavy-duty automotive A/C systems. Manufactured from high-quality steel and featuring an internal UNF ORFS thread with a flat seal, it delivers strong pressure and wear resistance and a reliable, leak-free connection. Designed for use with 3090 type A/C hose, the assembly provides a precise, durable interface between rubber hoses and system components, supporting repeated pressure cycling without compromising integrity. Its robust construction and proper sealing make it suitable for demanding applications where durability and safety are essential, though final performance depends on correct hose matching, installation, clamp selection, and adherence to the system’s specified pressure and maintenance practices.

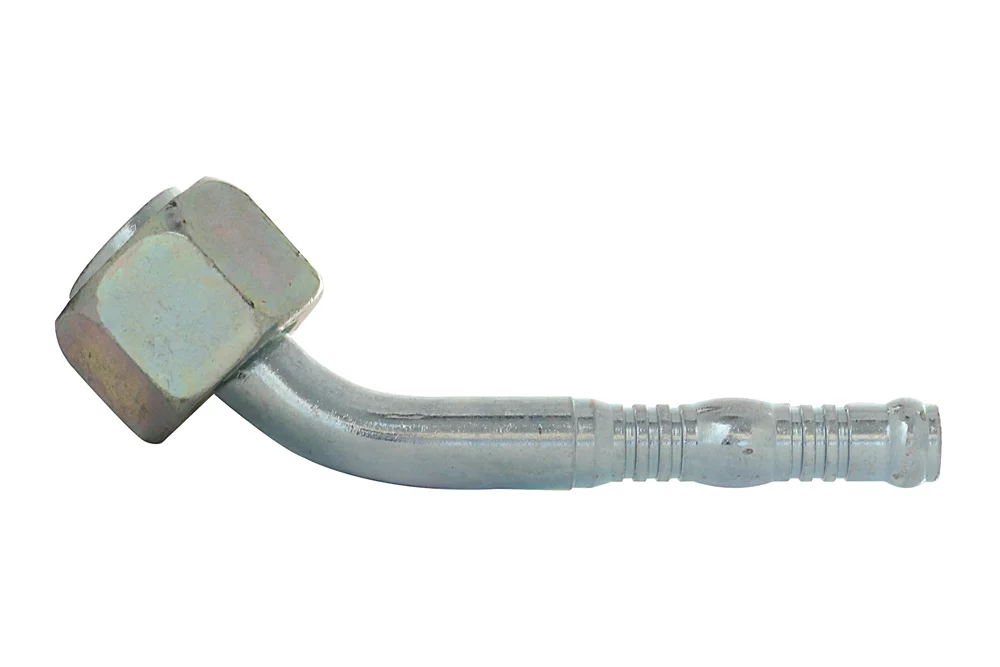

BURGACLIP 45° Steel Tip with GW UNF ORFS, Type 54502

Additional information

Material	CS – steel (cast iron)

The 45° BURGACLIP fitting with internal UNF ORFS thread and flat seal is a reliable solution designed for secure and efficient connections in air conditioning systems. Engineered for use with the 3090 type air conditioning hose, it ensures a precise and durable link between rubber hoses and system components, supporting optimal performance and long-lasting functionality. Manufactured from high-quality steel, this fitting offers excellent resistance to pressure and wear, making it ideal for demanding applications where durability and safety are essential. Its 45° angled design provides flexibility in installation, allowing for easier routing of hoses in confined spaces while maintaining a tight, leak-free seal. To complement the fitting, a full range of clips and clamps is available separately, enabling a complete and professional assembly tailored to specific system requirements. This makes the BURGACLIP fitting not only a practical choice but also a cost-effective solution for ensuring reliable operation of air conditioning systems in automotive and industrial environments.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
BU-54502-04-06-S	End 45° BC ORFS, G 9/16", hose 5/16", steel	-	35
BU-54502-06-06-S	End 45° BC ORFS, G 11/16", hose 5/16", steel	-	35
BU-54502-08-08-S	End. 45° BC ORFS, G 13/16", hose 13/32", steel	-	35
BU-54502-10-10-S	End 45° BC ORFS, G1" (1 inch), hose 1/2", steel	-	35
BU-54502-12-12-S	End 45° BC ORFS, G1/16", hose 5/8", steel	-	35

The 45° BURGACLIP fitting with internal UNF ORFS thread and flat seal is a reliable solution designed for secure and efficient connections in air conditioning systems. Engineered for use with the 3090 type air conditioning hose, it ensures a precise and durable link between rubber hoses and system components, supporting optimal performance and long-lasting functionality. Manufactured from high-quality steel, this fitting offers excellent resistance to pressure and wear, making it ideal for demanding applications where durability and safety are essential. Its 45° angled design provides flexibility in installation, allowing for easier routing of hoses in confined spaces while maintaining a tight, leak-free seal. To complement the fitting, a full range of clips and clamps is available separately, enabling a complete and professional assembly tailored to specific system requirements. This makes the BURGACLIP fitting not only a practical choice but also a cost-effective solution for ensuring reliable operation of air conditioning systems in automotive and industrial environments.
