Can the 45° NON-SKIVE DKOR End, Carbon Steel Fitting, Type NBW310 be used with 4SP/4SH/R13/R15 hoses without skiving and still meet high-pressure safety standards?

Yes. The 45° NON-SKIVE DKOR End, Carbon Steel Fitting, Type NBW310 is specifically engineered for use with high‑pressure hoses such as 4SP, 4SH, R13 and R15 without skiving. Its NON‑SKIVE design eliminates the need to remove the hose rubber, simplifying and speeding installation while preserving hose integrity. When assembled with the correct TI‑N… crimping sleeve and crimped to recommended specifications, the internal BSP thread, 60° cone sealing supported by an O‑ring, precise geometry and robust carbon steel construction with zinc coating provide secure, durable connections that meet high‑pressure safety requirements. Proper assembly to manufacturer torque/crimping specs and use of the compatible sleeve are essential to ensure the rated pressure performance and safety.

Is the 45° NON-SKIVE DKOR End, Carbon Steel Fitting, Type NBW310 compatible with TI-N crimping sleeves for reliable assembly without skiving?

Yes. The 45° NON-SKIVE DKOR End, Carbon Steel Fitting, Type NBW310 is compatible with TI-N crimping sleeves for reliable assembly without skiving. It is specifically engineered for use with high-pressure hoses (4SP, 4SH, R13, R15) and, together with the TI-N sleeve, leverages NON SKIVE technology so the hose rubber jacket does not need to be removed. This simplifies and speeds up installation while improving safety, consistency and sealing reliability. Made of carbon steel with a zinc coating and featuring an internal BSP thread, 60° cone sealing and O-ring support, the fitting provides durable corrosion and wear resistance and robust performance under extreme pressure when correctly assembled with the TI-N sleeve.

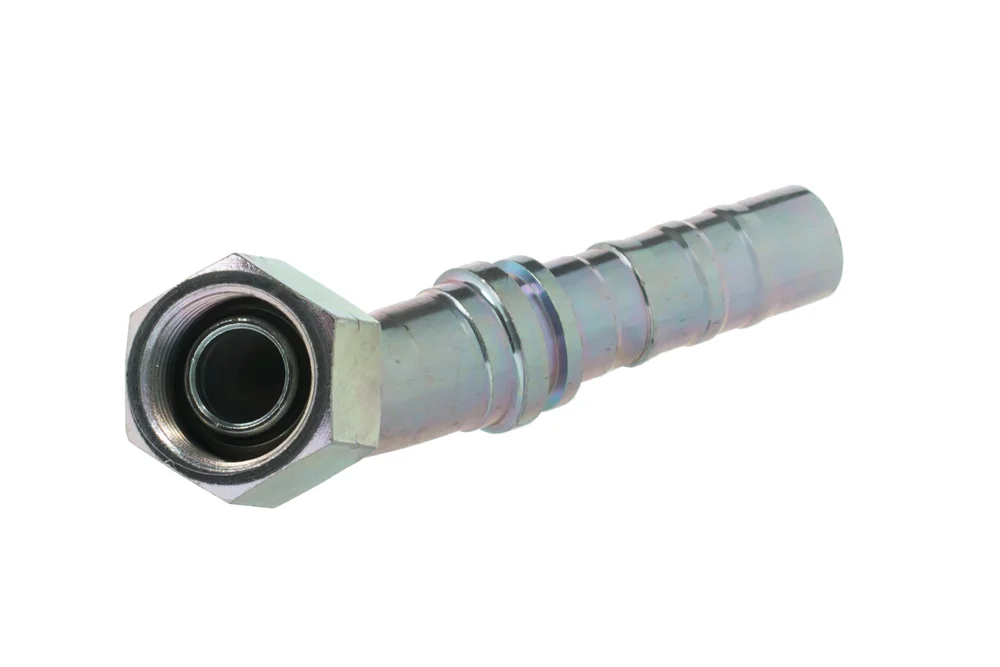

45° NON-SKIVE DKOR End, Carbon Steel Fitting, Type NBW310

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The 45° NON SKIVE fitting with internal BSP thread and 60° cone sealing supported by an O-ring (DKOR 45) is a reliable solution designed for demanding hydraulic applications. Engineered for use with high-pressure hoses such as 4SP, 4SH, R13, and R15, it ensures secure and durable connections when paired with the TI-N… crimping sleeve. Thanks to the NON SKIVE technology, installation is simplified and faster, as there is no need to remove the rubber layer of the hose, which not only saves time but also enhances safety and consistency of assembly. Manufactured from robust carbon steel with a high-quality zinc coating, the fitting offers excellent resistance to corrosion and mechanical wear, guaranteeing long-lasting performance even in harsh working environments. Its precise geometry and reinforced sealing system provide maximum reliability under extreme pressure, making it an ideal choice for industries where efficiency, durability, and safety are paramount.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NBW310-12-12	End 45° NON SKIVE GW 3/4" BSP, hose 3/4", o-ring	20	420	In stock	Enquiry
TI-NBW310-16-12	End 45° NON SKIVE GW 1" BSP, hose 3/4", o-ring	20	380	In stock	Enquiry
TI-NBW310-16-16	End 45° NON SKIVE GW 1" BSP, hose 1", o-ring	25	380	In stock	Enquiry
TI-NBW310-20-16	End 45° NON SKIVE GW 1.1/4" BSP, hose 1", o-ring	25	325	In stock	Enquiry
TI-NBW310-20-20	End 45° NON SKIVE GW 1.1/4" BSP, hose 1.1/4", o-ring	32	325	In stock	Enquiry
TI-NBW310-24-20	End 45° NON SKIVE GW 1.1/2" BSP, hose 1.1/4", o-ring	32	290	In stock	Enquiry
TI-NBW310-24-24	End 45° NON SKIVE GW 1.1/2" BSP, hose 1.1/2", o-ring	38	290	In stock	Enquiry
TI-NBW310-32-32	End 45° NON SKIVE GW 2" BSP, hose 2", o-ring	50	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 45° NON SKIVE fitting with internal BSP thread and 60° cone sealing supported by an O-ring (DKOR 45) is a reliable solution designed for demanding hydraulic applications. Engineered for use with high-pressure hoses such as 4SP, 4SH, R13, and R15, it ensures secure and durable connections when paired with the TI-N… crimping sleeve. Thanks to the NON SKIVE technology, installation is simplified and faster, as there is no need to remove the rubber layer of the hose, which not only saves time but also enhances safety and consistency of assembly. Manufactured from robust carbon steel with a high-quality zinc coating, the fitting offers excellent resistance to corrosion and mechanical wear, guaranteeing long-lasting performance even in harsh working environments. Its precise geometry and reinforced sealing system provide maximum reliability under extreme pressure, making it an ideal choice for industries where efficiency, durability, and safety are paramount.
