Is the NON SKIVE DKOR Straight End, Carbon Steel, NBW110 Type compatible with hoses 4SP, 4SH, R13, and R15 using TI-N crimping sleeves?

Yes. The NON SKIVE DKOR Straight End, Carbon Steel, NBW110 Type is compatible with hoses 4SP, 4SH, R13, and R15 when used with TI-N crimping sleeves. It is specifically designed for crimping these hose types without skiving the hose rubber, providing a secure, durable connection with an internal BSP thread and 60° cone seal supported by an O-ring. Manufactured from carbon steel with a galvanized coating, it offers high resistance to wear, corrosion, and high-pressure conditions, reliable leak protection, and simplified installation that reduces assembly time.

Can the NON SKIVE DKOR Straight End, Carbon Steel, NBW110 Type be used with alternative crimping sleeves or only TI-N for hoses 4SP, 4SH, R13, and R15?

Can the NON SKIVE DKOR Straight End, Carbon Steel, NBW110 Type be used with alternative crimping sleeves or only TI-N for hoses 4SP, 4SH, R13, and R15? According to the product description, the NON SKIVE DKOR Straight End, Carbon Steel, NBW110 Type is designed specifically to be crimped in combination with the TI-N crimping sleeve for hoses 4SP, 4SH, R13, and R15. The fitting’s NON SKIVE construction, internal BSP thread with 60° cone seal and O‑ring, and the specified assembly method are optimized for use with TI-N to ensure secure sealing, correct crimp dimensions, and reliable high‑pressure performance. Using alternative sleeves that are not specified (or not validated by the manufacturer) could compromise crimp geometry, sealing integrity and safety, so only the TI-N sleeve should be used unless the manufacturer explicitly approves another sleeve type.

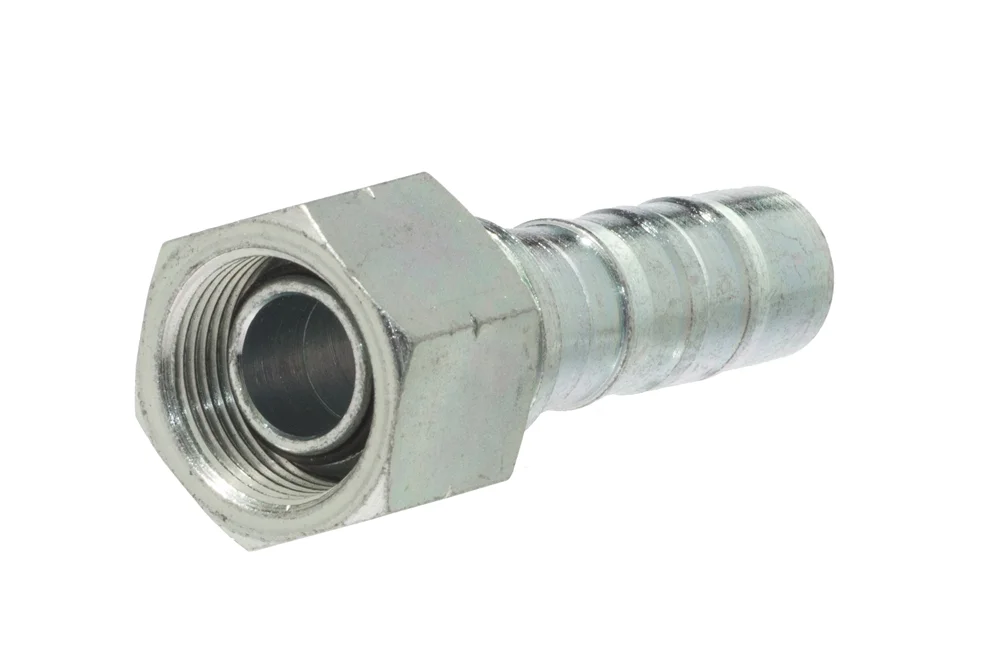

NON SKIVE DKOR Straight End, Carbon Steel, NBW110 Type

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2

The Straight NON SKIVE end with internal BSP thread and 60° cone seal supported by an O-ring (DKOR) is a high-performance solution engineered for demanding hydraulic applications. Designed specifically for crimping with hoses of types 4SP, 4SH, R13, and R15 in combination with crimping sleeve TI-N, it ensures a secure and durable connection without the need to cut the hose rubber, significantly simplifying installation and reducing assembly time. Manufactured from robust carbon steel with a protective galvanized coating, the fitting offers excellent resistance to wear, corrosion, and high-pressure conditions, guaranteeing long-lasting reliability even in intensive operating environments. Its precise construction and advanced sealing system provide maximum safety against leaks, while the NON SKIVE technology minimizes preparation work and enhances efficiency. This fitting is an ideal choice for industries requiring dependable hydraulic connections, combining strength, ease of use, and superior sealing performance to optimize system productivity.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NBW110-12-12	End. NON SKIVE GW 3/4" BSP, hose 3/4", o-ring	20	420	In stock	Enquiry
TI-NBW110-16-12	End. NON SKIVE GW 1" BSP, hose 3/4", o-ring	20	380	In stock	Enquiry
TI-NBW110-16-16	End. NON SKIVE GW 1" BSP, hose 1", o-ring	25	380	In stock	Enquiry
TI-NBW110-20-16	End. NON SKIVE GW 1.1/4" BSP, hose 1", o-ring	25	325	In stock	Enquiry
TI-NBW110-20-20	End. NON SKIVE GW 1.1/4" BSP, hose 1.1/4", o-ring	32	325	In stock	Enquiry
TI-NBW110-24-20	End. NON SKIVE GW 1.1/2" BSP, hose 1.1/4", o-ring	32	290	In stock	Enquiry
TI-NBW110-24-24	End. NON SKIVE GW 1.1/2" BSP, hose 1.1/2", o-ring	38	290	In stock	Enquiry
TI-NBW110-32-32	End. NON SKIVE GW 2" BSP, hose 2", o-ring	50	250	In stock	Enquiry
