Is the ORFS Straight Bulkhead Nipple with UNF Male Thread, Carbon Steel, Type SV compatible with standard ORFS ports and does it require a specific O-ring size for proper sealing?

ORFS Straight Bulkhead Nipple with UNF Male Thread, Carbon Steel, Type SV is designed to be compatible with standard ORFS ports. The fitting uses a flat-face ORFS sealing surface with an O-ring seated in the groove on the face, which mates with the corresponding flat port to provide a reliable, high-pressure seal. For proper sealing the correct O-ring size and material are required—typically the O-ring must match the groove dimensions of the Type SV face and be appropriate for the hydraulic fluid and pressure/temperature conditions. While standard ORFS fittings commonly use metric or inch O-rings per industry norms, confirm the exact O-ring inner diameter, cross-section (thickness) and material from the product’s technical drawing or supplier specification to ensure a proper fit and compatibility.

Can the ORFS Straight Bulkhead Nipple with UNF Male Thread, Carbon Steel, Type SV be used in high-vibration applications without additional locking or retightening procedures?

ORFS Straight Bulkhead Nipple with UNF Male Thread, Carbon Steel, Type SV can perform well in many vibration-prone environments thanks to its O‑ring flat‑face seal and robust carbon‑steel construction with galvanized finish, which together resist leakage, corrosion and mechanical wear. However, high‑vibration applications can promote thread loosening and O‑ring extrusion over time. The product description does not explicitly state integrated anti‑vibration locking features (e.g., positive locking washer, safety wire, or prevailing‑torque thread), nor does it provide guaranteed torque/retorque intervals for such conditions. Recommendation: for continuous or severe vibration use, apply industry best practices — proper torque to the manufacturer’s spec, use of an appropriate thread locking method or mechanical retention (lock washer, safety clip, or adhesive rated for hydraulic service), and scheduled inspections/retightening. If permanent vibration resistance without additional measures is required, consult the manufacturer’s technical data sheet or their engineering support to confirm suitability or request vibration‑tested alternatives.

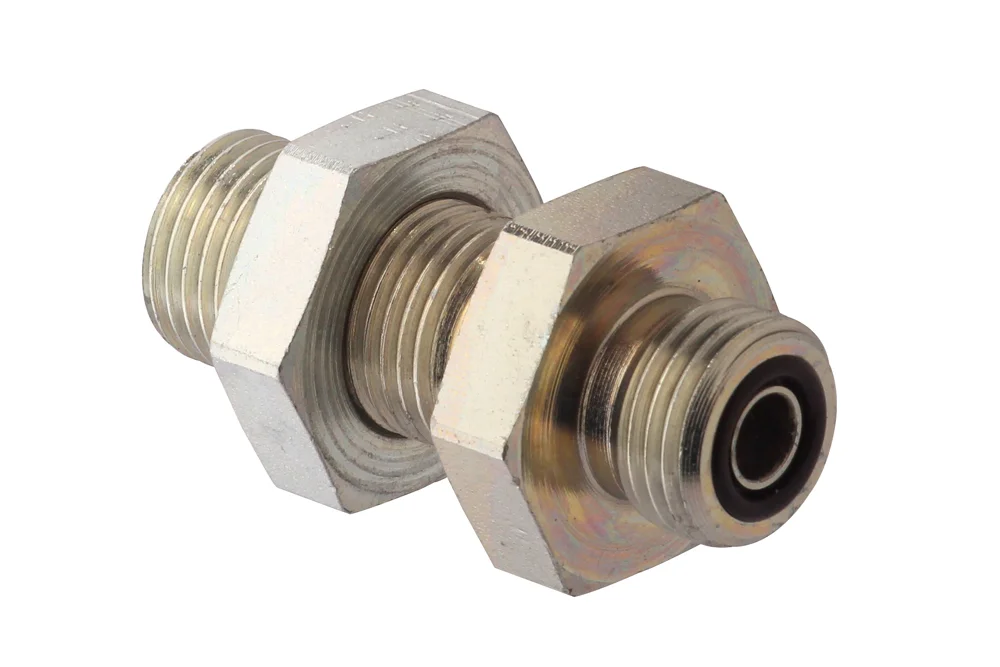

ORFS Straight Bulkhead Nipple with UNF Male Thread, Carbon Steel, Type SV

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2, 60/ 120

The straight partition fitting ORFS type SV with external UNF thread is a reliable solution designed for secure and leak-free hydraulic connections. Equipped with an O-ring seal positioned in the groove of the flat face, it ensures optimal tightness even under high pressure, reducing the risk of fluid loss and system downtime. Manufactured from high-quality carbon steel and finished with a durable galvanized coating, the fitting offers excellent resistance to corrosion, mechanical stress, and wear, extending the service life of hydraulic installations. Its precise threading guarantees easy assembly and compatibility with a wide range of hydraulic components, making it an ideal choice for demanding industrial applications. Engineered for performance and durability, this fitting provides both safety and efficiency, supporting smooth operation in sectors such as construction, agriculture, and heavy machinery. By combining robust material strength with advanced sealing technology, it delivers a cost-effective and dependable connection solution tailored to modern hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HO-SV-09	GZ ORFS bulkhead fitting 9/16"-18	-	630	In stock	Enquiry
HO-SV-11	GZ ORFS bulkhead fitting 11/16"-16	-	630	In stock	Enquiry
HO-SV-13	GZ ORFS bulkhead fitting 13/16"-16	-	630	In stock	Enquiry
HO-SV-16	GZ ORFS bulkhead fitting 1"-14	-	420	In stock	Enquiry
HO-SV-19	GZ ORFS bulkhead fitting 1.3/16"-12	-	420	In stock	Enquiry
HO-SV-23	GZ ORFS bulkhead fitting 1.7/16"-12	-	420	In stock	Enquiry
HO-SV-27	GZ ORFS bulkhead fitting 1.11/16"-12	-	280	In stock	Enquiry
HO-SV-32	GZ ORFS bulkhead fitting 2"-12	-	280	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The straight partition fitting ORFS type SV with external UNF thread is a reliable solution designed for secure and leak-free hydraulic connections. Equipped with an O-ring seal positioned in the groove of the flat face, it ensures optimal tightness even under high pressure, reducing the risk of fluid loss and system downtime. Manufactured from high-quality carbon steel and finished with a durable galvanized coating, the fitting offers excellent resistance to corrosion, mechanical stress, and wear, extending the service life of hydraulic installations. Its precise threading guarantees easy assembly and compatibility with a wide range of hydraulic components, making it an ideal choice for demanding industrial applications. Engineered for performance and durability, this fitting provides both safety and efficiency, supporting smooth operation in sectors such as construction, agriculture, and heavy machinery. By combining robust material strength with advanced sealing technology, it delivers a cost-effective and dependable connection solution tailored to modern hydraulic systems.
