Is the Collet for R7 Thermoplastic Hoses, AISI 316 Stainless Steel, BP7 Type compatible with SAE100R7 hoses without additional machining?

Yes. The Collet for R7 Thermoplastic Hoses, AISI 316 Stainless Steel, BP7 Type is specifically designed for thermoplastic hoses type R7 (SAE100R7) and provides a secure, durable connection without the need for additional machining. Made from AISI 316 stainless steel, it resists corrosion and wear, delivers consistent clamping force, and supports easy installation—making it compatible with SAE100R7 hoses as supplied.

How do I install the Collet for R7 Thermoplastic Hoses, AISI 316 Stainless Steel, BP7 Type to ensure a leak-free connection without machining?

How to install the Collet for R7 Thermoplastic Hoses, AISI 316 Stainless Steel, BP7 Type to ensure a leak-free connection without machining: 1. Inspect hose end: cut hose squarely, remove debris and ensure inner bore and outer cover are clean and undamaged. Verify hose is R7 (SAE100R7) compatible. 2. Slide components on hose: first slide the BP7 clamping sleeve over the hose with the larger/open end facing the hose end. If an adapter or insert is supplied, insert it into the hose bore fully to support the internal layers. 3. Position sleeve correctly: push the BP7 sleeve forward until it seats against the hose cover and adapter/insert, ensuring it covers the reinforcement braid evenly and aligns concentrically. 4. Clamp evenly: using the recommended torque or specified tightening method for BP7 (follow supplier torque specs), tighten the sleeve’s clamping mechanism evenly to apply uniform radial pressure. For split or bolted BP7 designs, tighten bolts in a crisscross pattern to the specified torque in multiple stages. 5. Verify seals and alignment: confirm the sleeve compresses the braid onto the insert without crushing the hose. Ensure no gaps between hose, insert and sleeve; the assembly should be straight and concentric. 6. Pressure-test: perform a hydrostatic or pneumatic pressure test at the application’s working pressure (or as recommended) and inspect for leaks, movement, or deformation. Retighten bolts to spec after initial pressurization if required. 7. Final check and documentation: re-inspect for leaks after a short operating period, document torque values and test results, and schedule periodic inspections. Following these steps with the BP7 clamping sleeve (AISI 316) ensures a secure, corrosion-resistant, leak-free connection without machining.

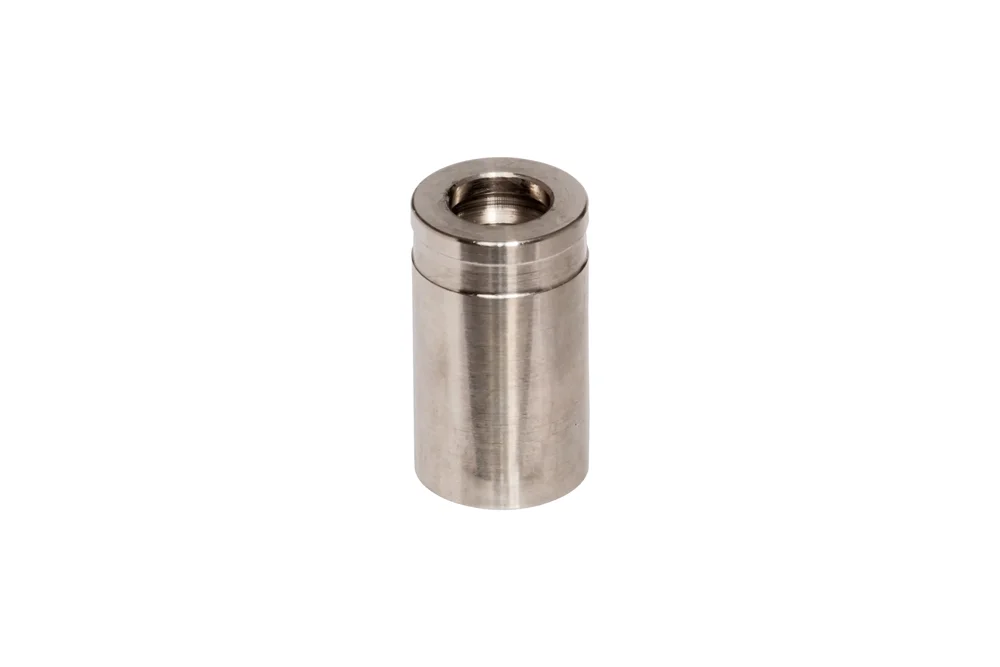

Collet for R7 Thermoplastic Hoses, AISI 316 Stainless Steel, BP7 Type

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

The BP7 clamping sleeve is a reliable solution designed specifically for thermoplastic hoses type R7 (SAE100R7), ensuring a secure and durable connection without the need for additional machining. Manufactured from premium AISI 316 stainless steel, it offers outstanding resistance to corrosion, wear, and harsh environmental conditions, making it ideal for demanding industrial and hydraulic applications. Its user-friendly installation process reduces assembly time and minimizes downtime, while the robust construction guarantees long-lasting performance even under high pressure. Engineered for precision and safety, the BP7 sleeve provides consistent clamping force, protecting hoses from leaks and mechanical stress. This makes it a cost-effective and efficient choice for professionals seeking dependable components that combine strength, durability, and ease of use. With its superior material quality and optimized design, the BP7 clamping sleeve ensures maximum reliability and efficiency in every application.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
ZC-BP7-03-SS	Thermoplastic hose sleeve SAE100R7 3/16", AISI 316L	5	-

The BP7 clamping sleeve is a reliable solution designed specifically for thermoplastic hoses type R7 (SAE100R7), ensuring a secure and durable connection without the need for additional machining. Manufactured from premium AISI 316 stainless steel, it offers outstanding resistance to corrosion, wear, and harsh environmental conditions, making it ideal for demanding industrial and hydraulic applications. Its user-friendly installation process reduces assembly time and minimizes downtime, while the robust construction guarantees long-lasting performance even under high pressure. Engineered for precision and safety, the BP7 sleeve provides consistent clamping force, protecting hoses from leaks and mechanical stress. This makes it a cost-effective and efficient choice for professionals seeking dependable components that combine strength, durability, and ease of use. With its superior material quality and optimized design, the BP7 clamping sleeve ensures maximum reliability and efficiency in every application.
