Is the 90° Hose Connector, PP/PVDF, Series 1D EM Type compatible with all flexible PFA hoses and installation using thermal expansion?

The 90° Hose Connector, PP/PVDF, Series 1D EM Type is specifically engineered for flexible PFA hoses and requires installation by thermal expansion of the hose ends. It is not a universal connector for all flexible hoses—compatibility is limited to PFA hoses that can be flared via thermal expansion to form the required secure fit. When used with the correct flexible PFA hose and installed according to the thermal expansion method, it ensures a tight, particle-free, and hygienic connection suitable for demanding lab, medical, pharmaceutical, chemical, and food applications (working pressure up to 10 bar). Using it with hoses of different materials or with hoses that cannot be thermally expanded will not provide the intended secure seal and is not recommended.

Can the 90° Hose Connector, PP/PVDF, Series 1D EM Type withstand repeated sterilization cycles without compromising the PFA hose seal or material integrity?

Yes. The 90° Hose Connector, PP/PVDF, Series 1D EM Type is designed to withstand repeated sterilization cycles without compromising the PFA hose seal or overall material integrity, provided recommended sterilization methods and limits are observed. Key reasons: - Flared PFA hose connection: The installation method uses thermal expansion to create a precise, particle-free seal that resists bacterial ingress and maintains complete tightness through repeated thermal cycles. - Material choice: Connector bodies in polypropylene or PVDF deliver excellent chemical resistance and durability, tolerating typical laboratory and pharmaceutical sterilization media and conditions. - Seal compatibility: The PFA hose and flared joint are inherently resistant to common sterilization processes (autoclaving, steam, many chemical disinfectants) and retain sealing performance when properly installed. - Operational robustness: Rated up to 10 bar working pressure, the assembly sustains mechanical and pressure demands during repeated sterilization and use. Recommendations: follow manufacturer installation (proper thermal expansion), verify specific sterilization parameters (temperature, duration, chemical agents) against PFA, PP, and PVDF compatibility, and perform periodic inspections for wear or damage to ensure long-term reliability.

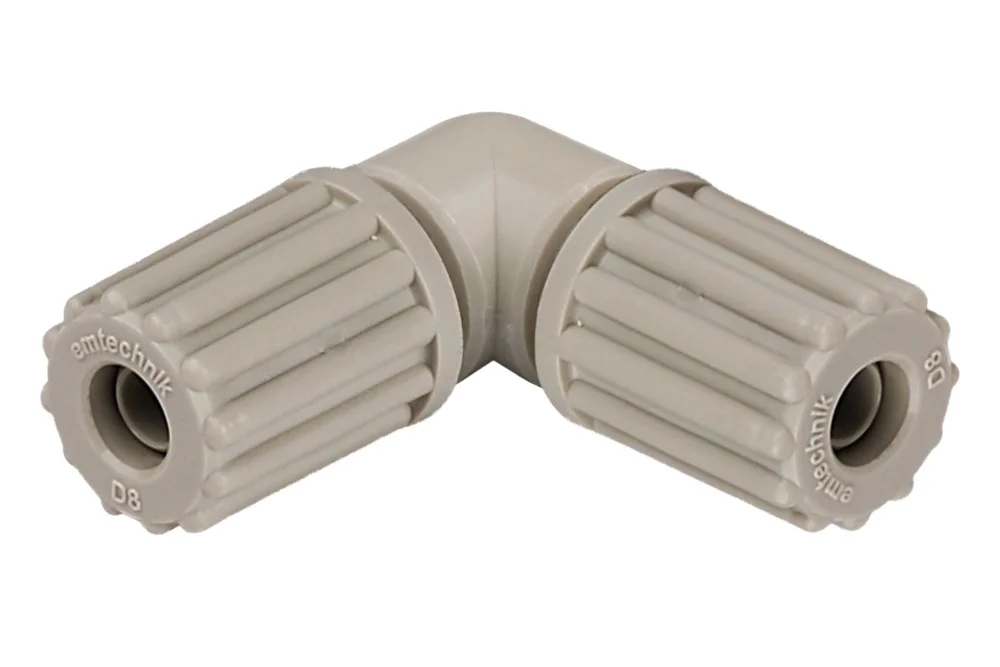

90° Hose Connector, PP/PVDF, Series 1D EM Type

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

The 90° connector for hose series 1D type EM is a highly reliable solution designed for demanding applications in laboratories, medical environments, as well as the pharmaceutical, chemical, and food industries. Engineered specifically for flexible PFA hoses, it utilizes a flared connection method that requires thermal expansion of the hose ends during installation, ensuring a secure and precise fit. This advanced design eliminates the risk of particle build-up, prevents bacterial accumulation, and guarantees complete tightness of the medium, providing maximum safety and hygiene in critical processes. Manufactured from durable polypropylene or PVDF, the connector offers excellent chemical resistance and long-lasting performance even under challenging conditions. With a working pressure of up to 10 bar, it delivers both strength and reliability, making it an ideal choice for professionals seeking efficiency, cleanliness, and uncompromising quality in fluid handling systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1D200T03PN	90° connector (series 1D), hose 1/8" x 1/4", natural polypropylene	-	10	In stock	Enquiry
EM-1D200T03PV	90° connector (series 1D), hose 1/8" x 1/4", PVDF	-	10	In stock	Enquiry
EM-1D200T11PN	90° connector (series 1D), hose 1/4" x 3/8", natural polypropylene	-	10	In stock	Enquiry
EM-1D200T11PV	90° connector (series 1D), hose 1/4" x 3/8", PVDF	-	10	In stock	Enquiry
EM-1D200T15PN	90° connector (series 1D), hose 3/8" x 1/2", natural polypropylene	-	10	In stock	Enquiry
EM-1D200T15PV	90° connector (series 1D), hose 3/8" x 1/2", PVDF	-	10	In stock	Enquiry
EM-1D200T20PN	90° connector (series 1D), hose 5/8" x 3/4", natural polypropylene	-	10	In stock	Enquiry
EM-1D200T24PN	90° connector (series 1D), hose 7/8" x 1", natural polypropylene	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° connector for hose series 1D type EM is a highly reliable solution designed for demanding applications in laboratories, medical environments, as well as the pharmaceutical, chemical, and food industries. Engineered specifically for flexible PFA hoses, it utilizes a flared connection method that requires thermal expansion of the hose ends during installation, ensuring a secure and precise fit. This advanced design eliminates the risk of particle build-up, prevents bacterial accumulation, and guarantees complete tightness of the medium, providing maximum safety and hygiene in critical processes. Manufactured from durable polypropylene or PVDF, the connector offers excellent chemical resistance and long-lasting performance even under challenging conditions. With a working pressure of up to 10 bar, it delivers both strength and reliability, making it an ideal choice for professionals seeking efficiency, cleanliness, and uncompromising quality in fluid handling systems.
