Is the Straight Plug Connector with Tapered Male Thread, Type R1C suitable for both vacuum and 16 bar compressed air applications?

Yes. The Straight Plug Connector with Tapered Male Thread, Type R1C is suitable for both vacuum and compressed air applications up to 16 bar. Manufactured from nickel-plated brass with NBR sealing, it provides durable, corrosion-resistant performance, reliable leak protection and repeated assembly/disassembly without loss of tightness. It operates effectively from -20°C to +80°C, ensuring stable functionality across typical vacuum and compressed-air operating conditions.

Can the Straight Plug Connector with Tapered Male Thread, Type R1C withstand exposure to corrosive environments and maintain seal integrity over time?

Straight Plug Connector with Tapered Male Thread, Type R1C is manufactured from high-quality nickel-plated brass and uses NBR sealing, which gives it good baseline resistance to wear and many corrosive factors. In many industrial environments this construction will maintain mechanical and pneumatic seal integrity over time, especially where exposure is limited to mild to moderate corrosion agents (e.g., atmospheric moisture, oils, non-aggressive industrial atmospheres). However, resistance to strongly corrosive chemicals (strong acids, alkalis, chlorides, halogenated solvents, or saltwater/sea spray environments) is limited for nickel-plated brass and NBR. Prolonged or concentrated exposure to such media can accelerate corrosion of the metal plating and degrade the NBR seal, risking loss of tightness and shortened service life. Recommendation: For intermittent or mild corrosive conditions the Type R1C should perform well; for continuous or aggressive corrosive environments, choose connectors made from more resistant materials (stainless steel, special coatings) and compatible seal compounds (e.g., FKM/EPDM) to ensure long-term seal integrity.

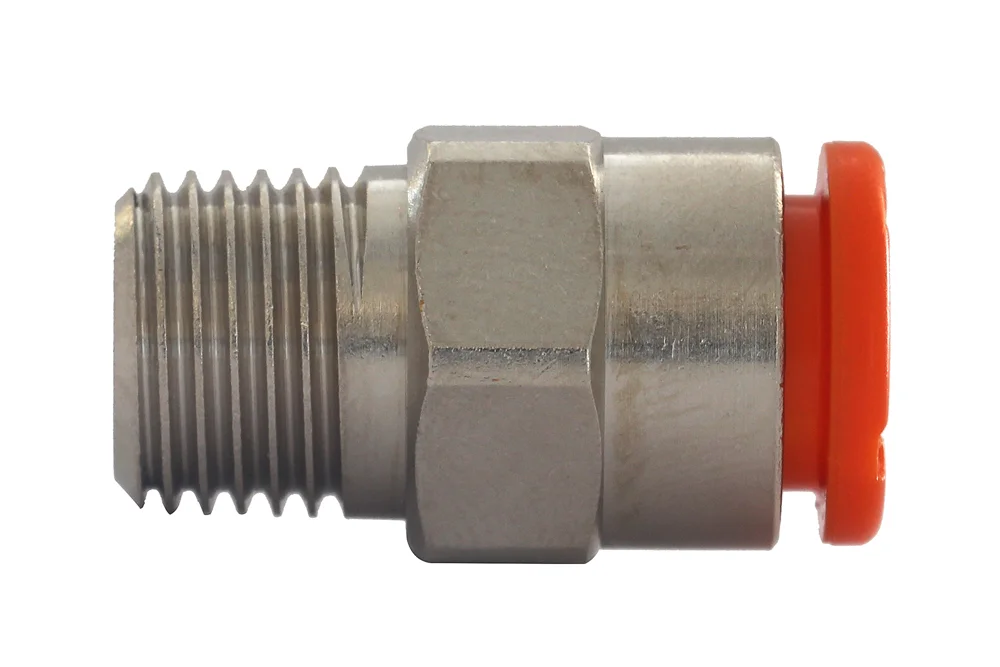

Straight Plug Connector with Tapered Male Thread, Type R1C

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

The straight plug connector type R1C with external tapered thread is a reliable solution for efficient and secure connections in pneumatic systems, ensuring durability and precision in every application. Manufactured from high-quality nickel-plated brass, it combines strength with excellent resistance to wear and corrosion, making it ideal for demanding industrial environments. Its design allows for quick and effortless assembly and disassembly, enabling multiple uses without compromising the tightness of either the mechanical or pneumatic seal. With a working pressure of up to 16 bar, it guarantees stable performance in both vacuum and compressed air applications. The connector operates effectively within a wide temperature range from -20°C to +80°C, ensuring consistent functionality in diverse conditions. Equipped with NBR sealing, it provides reliable protection against leaks, enhancing system safety and efficiency. This connector is the perfect choice for professionals seeking a robust, versatile, and easy-to-use component that optimizes workflow and minimizes downtime.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2001C15	Straight connector RL1C hose 12 mm, GZ 3/8" BSPT	-	16	In stock	Enquiry
MW-2001C16	Straight connector RL1C hose 12 mm, GZ 1/2" BSPT	-	16	In stock	Enquiry
MW-2001Z07	Straight connector RL1Z hose 6 mm, GZ M12x1 conical	-	16	In stock	Enquiry
MW-2001Z08	Straight connector RL1Z hose 6 mm, GZ M12x1.25 conical	-	16	In stock	Enquiry
MW-2L01C02	Straight connector RL1C hose 4 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2L01C07	Straight connector RL1C hose 6 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2L01C08	Straight connector RL1C hose 6 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2L01C09	Straight connector RL1C hose 8 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2L01C10	Straight connector RL1C hose 8 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2L01C11	Straight connector RL1C hose 8 mm, GZ BSPT 3/8"	-	16	In stock	Enquiry
MW-2L01C13	Straight connector RL1C hose 10 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2L01C14	Straight connector RL1C hose 10 mm, GZ BSPT 3/8"	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The straight plug connector type R1C with external tapered thread is a reliable solution for efficient and secure connections in pneumatic systems, ensuring durability and precision in every application. Manufactured from high-quality nickel-plated brass, it combines strength with excellent resistance to wear and corrosion, making it ideal for demanding industrial environments. Its design allows for quick and effortless assembly and disassembly, enabling multiple uses without compromising the tightness of either the mechanical or pneumatic seal. With a working pressure of up to 16 bar, it guarantees stable performance in both vacuum and compressed air applications. The connector operates effectively within a wide temperature range from -20°C to +80°C, ensuring consistent functionality in diverse conditions. Equipped with NBR sealing, it provides reliable protection against leaks, enhancing system safety and efficiency. This connector is the perfect choice for professionals seeking a robust, versatile, and easy-to-use component that optimizes workflow and minimizes downtime.
