Is the DIN quick coupling socket with female thread PDV1 for agricultural machinery compatible with ISO-A or ISO-B couplings?

The DIN quick coupling socket with female thread PDV1 for agricultural machinery is not compatible with ISO-A or ISO-B couplings. The product description states it features unique dimensions tailored to the manufacturer’s standard, unlike ISO-A and ISO-B couplings, so it will not interchange with those ISO types.

Is the DIN quick coupling socket with female thread PDV1 for agricultural machinery compatible with other manufacturers’ quick couplings that follow non-ISO dimensions?

The DIN quick coupling socket with female thread PDV1 for agricultural machinery is not compatible with quick couplings from other manufacturers that follow non‑ISO dimensions. The product description states it uses unique, manufacturer‑specific dimensions rather than ISO‑A or ISO‑B standards. Because coupling compatibility depends on exact mating dimensions, thread form and sealing geometry, mixing PDV1 with non‑ISO couplings risks poor sealing, leakage, pressure loss or mechanical damage—even at rated pressures up to 400 bar. To ensure safe, reliable connections, use PDV1 only with mating couplings specified by the same manufacturer or explicitly certified as compatible with the PDV1 non‑ISO dimensions.

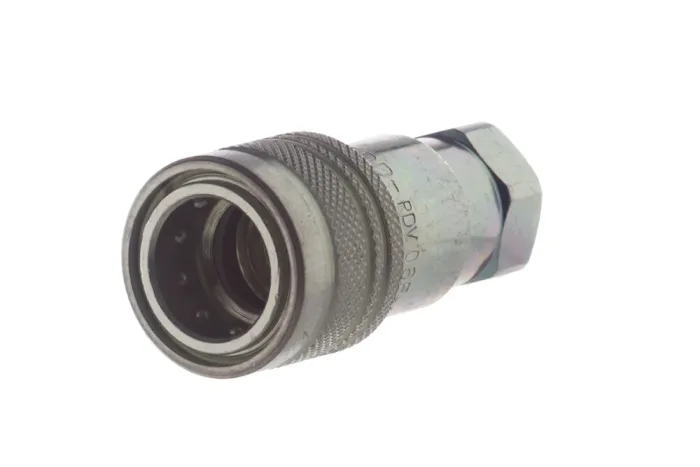

DIN quick coupling socket with female thread PDV1 for agricultural machinery

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 2, 4

The standard quick coupling socket with internal BSP thread is a reliable solution designed for demanding hydraulic applications, particularly in agricultural machinery where efficiency and durability are essential. Manufactured from robust galvanized steel, it ensures long-lasting resistance to wear and corrosion, while the NBR sealing system guarantees secure performance in a wide temperature range from -25°C to +100°C. Engineered to operate with hydraulic oil at working pressures of up to 400 bar, depending on the coupling size, this socket delivers consistent power transmission and dependable flow rates measured at Δp = 3 bar. Unlike ISO-A and ISO-B couplings, it features unique dimensions tailored to the manufacturer’s standard, making it an excellent choice for systems requiring precise compatibility and high operational safety. Its versatility and strength make it a trusted component for professionals seeking reliable hydraulic connections in intensive field conditions.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
DP-PDV1-0606002	PDV1 DN6 socket with 1/4" BSP thread, nitrile seal	-	400
DP-PDV1-1010002	PDV1 DN10 socket with 3/8" BSP female thread, nitrile seal	-	350
DP-PDV1-2019002	PDV1 DN19 socket with 3/4" BSP thread, nitrile seal	-	250
DP-PDV1-2525002	PDV1 DN25 socket with 1" BSP female thread, nitrile seal	-	250
DP-PDV1-3031002	PDV1 DN30 socket with 1.1/4" BSP thread, nitrile seal	-	220
DP-PDV1-3939002	PDV1 DN40 socket with 1.1/2" BSP thread, nitrile seal	-	200
DP-PDV1-5051002	PDV1 socket DN50 with 2" BSP thread, nitrile seal	-	100

The standard quick coupling socket with internal BSP thread is a reliable solution designed for demanding hydraulic applications, particularly in agricultural machinery where efficiency and durability are essential. Manufactured from robust galvanized steel, it ensures long-lasting resistance to wear and corrosion, while the NBR sealing system guarantees secure performance in a wide temperature range from -25°C to +100°C. Engineered to operate with hydraulic oil at working pressures of up to 400 bar, depending on the coupling size, this socket delivers consistent power transmission and dependable flow rates measured at Δp = 3 bar. Unlike ISO-A and ISO-B couplings, it features unique dimensions tailored to the manufacturer’s standard, making it an excellent choice for systems requiring precise compatibility and high operational safety. Its versatility and strength make it a trusted component for professionals seeking reliable hydraulic connections in intensive field conditions.
