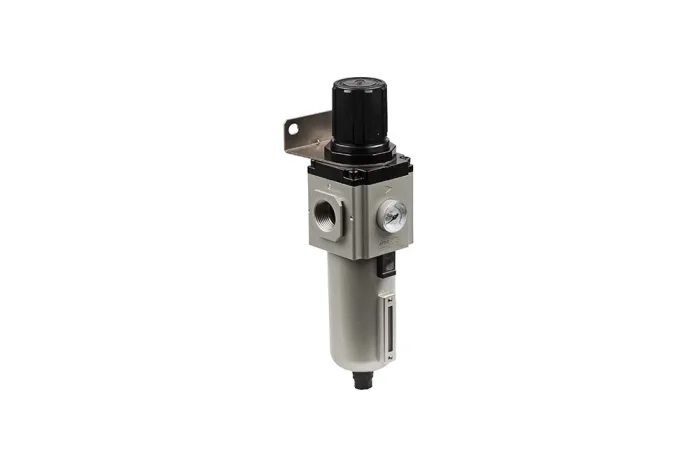

Filter – reducer compressed air GAFR with thread internal BSP, series GA
Filter – reducer GAFR series GA with thread internal BSP serves for removing contaminants contained in compressed air in order to correct use element systems pneumatic, a set manually reducer stays constant value pressure at the outlet, independently od fluctuations pressure supply. W set found angle bracket/A handle assembly and pressure gauge. Do connecting individual element of each other, serve sets connecting GA (shape L, T, U). Size: 200, 300, 400, 600. Filtration grade: 40 µm. Supply pressure: up to 10 bar. Operating temperature: od -5°C up to +70°C. Connection: 1/8″ BSP female ÷ 1″. Condensate drain: automatic (A). Flow rate: 1050 l/min – size 200, 2250 l/min – size 300, 4000 l/min – size 400, 6500 l/min – size 600 (at an inlet pressure of 6 bar Δp = 1 bar).
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Filter – reducer GAFR series GA with thread internal BSP serves for removing contaminants contained in compressed air in order to correct use element systems pneumatic, a set manually reducer stays constant value pressure at the outlet, independently od fluctuations pressure supply. W set found angle bracket/A handle assembly and pressure gauge. Do connecting individual element of each other, serve sets connecting GA (shape L, T, U). Size: 200, 300, 400, 600. Filtration grade: 40 µm. Supply pressure: up to 10 bar. Operating temperature: od -5°C up to +70°C. Connection: 1/8″ BSP female ÷ 1″. Condensate drain: automatic (A). Flow rate: 1050 l/min – size 200, 2250 l/min – size 300, 4000 l/min – size 400, 6500 l/min – size 600 (at an inlet pressure of 6 bar Δp = 1 bar).
Additional information
| Maximum operating temperature [°C] | 70 |
|---|---|
| Minimum operating temperature [°C] | -5 |
