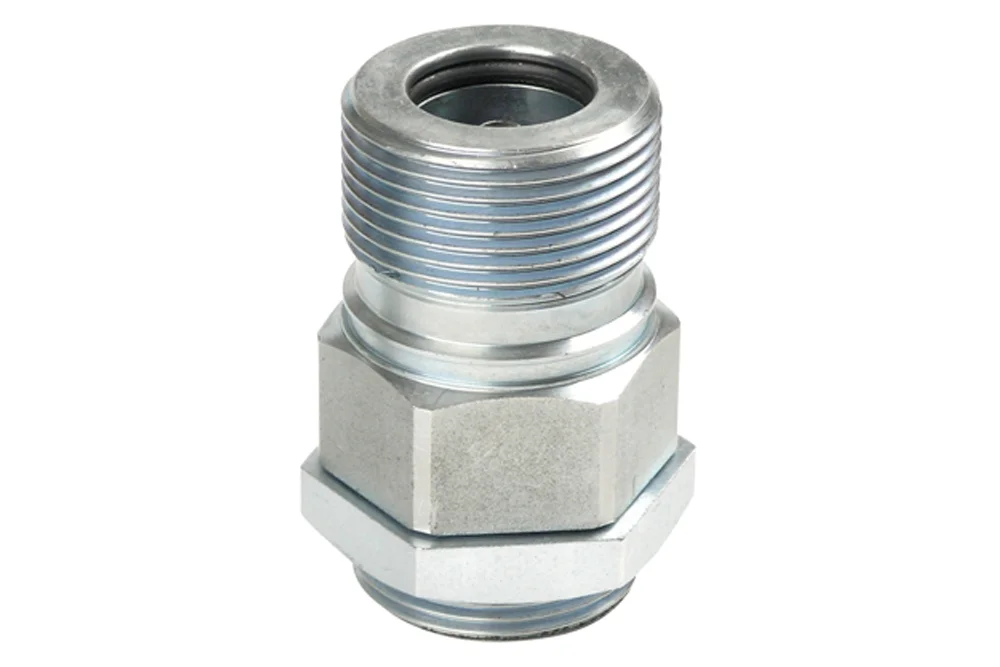

Galvanized Steel TC Socket, Screwed Quick‑Connector 3/4″–1″
The TC-type quick coupling socket is a robust solution engineered for demanding hydraulic systems in heavy-duty vehicles such as dump trucks, ensuring reliable performance even under extreme working conditions. Manufactured from high-quality galvanized steel, it offers outstanding resistance to corrosion and mechanical stress, while the NBR sealing guarantees secure and leak-free operation across a wide temperature range from -40°C to +106°C. Designed with a practical locking nut, the socket enables easy installation in partition versions, providing flexibility and convenience during assembly. A key advantage is the ability to tighten the coupling under residual pressure of up to 50 bar, ensuring uninterrupted workflow and minimizing downtime. With a working pressure capacity of up to 350 bar, depending on size, and a safety factor of 3:1, the coupling delivers maximum reliability and safety in high-pressure hydraulic applications. Optimized flow characteristics ensure efficient operation with a pressure drop limited to just 3 bar, supporting consistent hydraulic power transmission. This makes the TC-type quick coupling socket an ideal choice for operators seeking durability, efficiency, and safety in the most challenging environments.
Do you need a larger quantity of products or a bespoke quote?
The TC-type quick coupling socket is a robust solution engineered for demanding hydraulic systems in heavy-duty vehicles such as dump trucks, ensuring reliable performance even under extreme working conditions. Manufactured from high-quality galvanized steel, it offers outstanding resistance to corrosion and mechanical stress, while the NBR sealing guarantees secure and leak-free operation across a wide temperature range from -40°C to +106°C. Designed with a practical locking nut, the socket enables easy installation in partition versions, providing flexibility and convenience during assembly. A key advantage is the ability to tighten the coupling under residual pressure of up to 50 bar, ensuring uninterrupted workflow and minimizing downtime. With a working pressure capacity of up to 350 bar, depending on size, and a safety factor of 3:1, the coupling delivers maximum reliability and safety in high-pressure hydraulic applications. Optimized flow characteristics ensure efficient operation with a pressure drop limited to just 3 bar, supporting consistent hydraulic power transmission. This makes the TC-type quick coupling socket an ideal choice for operators seeking durability, efficiency, and safety in the most challenging environments.
Additional information
| Material | CS – steel (cast iron) |
|---|
