High-Pressure Hose 1800 bar, Type 4 for Bolt Tensioners & Hydraulic Wrenches

Additional information

Material

CS – steel (cast iron)

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Standard length [m]

10, 2

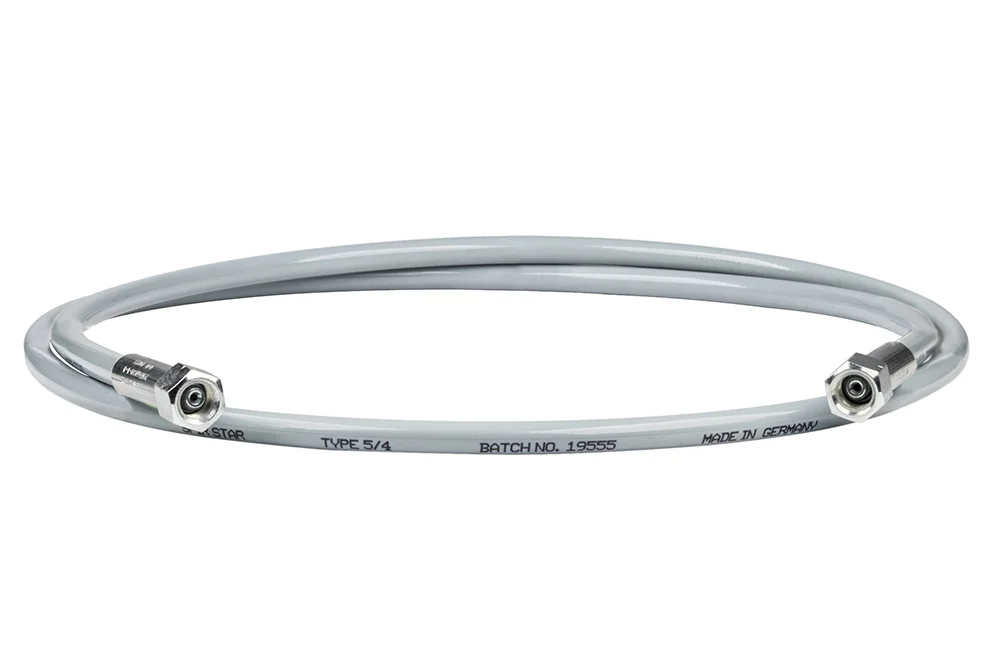

This ready-to-use, highly flexible four-braid high-pressure hose is designed to deliver maximum performance in the most demanding hydraulic applications, including bolt tensioning, water jet cutting, lifting systems, hydraulic wrenches, and a wide range of industrial tools. Engineered for reliability and safety, each hose undergoes rigorous pressure testing and is supplied with a quality certificate, ensuring full compliance with the EN 1829-2 standard. The inner layer, made of durable polyoxymethylene (POM), guarantees excellent resistance to wear and fluid compatibility, while the reinforcement of four high-strength steel wire braids provides outstanding pressure resistance up to 1800 bar. The robust outer layer of polyamide (PA) protects the hose against abrasion, mechanical stress, and environmental factors, extending its service life even in intensive use. Fittings and sleeves crafted from galvanized carbon steel ensure secure connections and corrosion resistance, making the hose a reliable choice for both indoor and outdoor operations. With an operating temperature range from -30°C to +70°C, this hose offers consistent performance in diverse working conditions, combining strength, flexibility, and safety to meet the highest professional standards.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HASS-05-002-L2MSpir Star Hose DN5 SS-NW-05/4 Lc=2m 2xGW 1/4" BSP WP 1800 bar51800In stock
Enquiry
HASS-05-002-L3MSpir Star Hose DN5 SS-NW-05/4 Lc=3m 2xGW 1/4" BSP WP 1800 bar51800In stock
Enquiry
HASS-05-002-L5MSpir Star Hose DN5 SS-NW-05/4 Lc=5m 2xGW 1/4" BSP WP 1800 bar51800In stock
Enquiry
TU-PL01-22-00041Spir Star Hose DN5 SS-NW-05/4 Lc=1m 2xGZ 1/4" BSP external cone 100° WP 1800 bar51800In stock
Enquiry
TU-PL01-22-00042Spir Star DN5 SS-NW-05/4 Hose Lc=2m 2xGZ 1/4" BSP external cone 100° WP 1800 bar51800In stock
Enquiry
TU-PL01-22-00043Spir Star DN5 SS-NW-05/4 hose Lc=3m 2xGZ 1/4" BSP external cone 100° WP 1800 bar51800In stock
Enquiry
TU-PL01-22-00044Spir Star Hose DN5 SS-NW-05/4 Lc=5m 2xGZ 1/4" BSP external cone 100° WP 1800 bar51800In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This ready-to-use, highly flexible four-braid high-pressure hose is designed to deliver maximum performance in the most demanding hydraulic applications, including bolt tensioning, water jet cutting, lifting systems, hydraulic wrenches, and a wide range of industrial tools. Engineered for reliability and safety, each hose undergoes rigorous pressure testing and is supplied with a quality certificate, ensuring full compliance with the EN 1829-2 standard. The inner layer, made of durable polyoxymethylene (POM), guarantees excellent resistance to wear and fluid compatibility, while the reinforcement of four high-strength steel wire braids provides outstanding pressure resistance up to 1800 bar. The robust outer layer of polyamide (PA) protects the hose against abrasion, mechanical stress, and environmental factors, extending its service life even in intensive use. Fittings and sleeves crafted from galvanized carbon steel ensure secure connections and corrosion resistance, making the hose a reliable choice for both indoor and outdoor operations. With an operating temperature range from -30°C to +70°C, this hose offers consistent performance in diverse working conditions, combining strength, flexibility, and safety to meet the highest professional standards.

Additional information

Material

CS – steel (cast iron)

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Standard length [m]

10, 2
