Is the ORFS 45° Hydraulic Fitting, ZOW310, Carbon Steel compatible with other UNF-threaded ORFS ports and standard hose assemblies?

Yes. The ORFS 45° Hydraulic Fitting, ZOW310, Carbon Steel is compatible with other ORFS ports and standard hose assemblies that use internal UNF-threaded ORFS connections and a flat sealing face. Its internal UNF thread with nut and flat (ORFS) sealing system follows the ORFS standard, so it will mate securely and provide leak-free performance with other components built to that same standard. Note: compatibility also requires matching thread size, pressure rating, hose type, and correct crimping sleeve for the specific hose to ensure a safe, durable connection.

Does the ORFS 45° Hydraulic Fitting, ZOW310, Carbon Steel require a specific sleeve type for crimping with certain hose materials?

Yes. The ORFS 45° Hydraulic Fitting, ZOW310, Carbon Steel requires a sleeve matched to the specific hose type for crimping. The fitting is engineered to be crimped with a sleeve that corresponds to the hose material and profile to ensure correct compression, long-term stability, and leak-free performance under high pressure. Using an incorrect sleeve can compromise the crimp, degrade sealing, and reduce service life. Always use the sleeve specified by the hose manufacturer or the crimping system recommendations for the hose you are using.

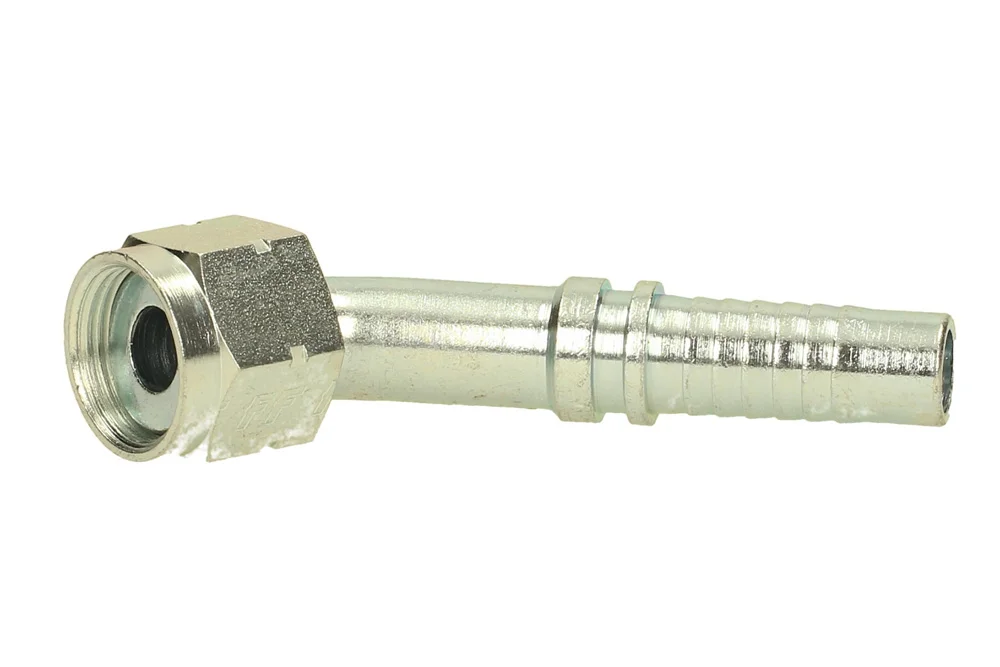

ORFS 45° Hydraulic Fitting, ZOW310, Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The standard hydraulic end type Z is a reliable and versatile solution designed for demanding hydraulic and industrial applications. Equipped with a classic hydraulic “tail” for hose connection, it features an internal UNF thread with nut and flat sealing system (ORFS), ensuring secure and leak-free performance even under high pressure. The 45° angled construction allows for flexible installation in confined spaces, making it easier to route hoses efficiently while maintaining optimal flow. Engineered for crimping with a sleeve matched to the specific hose type, this fitting guarantees durability and long-lasting stability of the connection. Manufactured from high-quality carbon steel and finished with a protective zinc coating, it offers excellent resistance to corrosion and wear, extending service life even in harsh working environments. This hydraulic end combines precision, strength, and reliability, making it an ideal choice for professionals seeking dependable components that enhance system safety and efficiency.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZOW310-09-04	End. ORFS 45° G 9/16", hose 1/4"	6	-	In stock	Enquiry
TI-ZOW310-09-05	End. ORFS 45° G 9/16", hose 5/16"	8	-	In stock	Enquiry
TI-ZOW310-09-06	End. ORFS 45° G 9/16", hose 3/8"	10	-	In stock	Enquiry
TI-ZOW310-11-04	End. ORFS 45° G 11/16", hose 1/4"	6	-	In stock	Enquiry
TI-ZOW310-11-05	End. ORFS 45° G 11/16", hose 5/16"	8	-	In stock	Enquiry
TI-ZOW310-11-06	End. ORFS 45° G 11/16", hose 3/8"	10	-	In stock	Enquiry
TI-ZOW310-13-06	End. ORFS 45° G 13/16", hose 3/8"	10	-	In stock	Enquiry
TI-ZOW310-13-08	End. ORFS 45° G 13/16", hose 1/2"	12	-	In stock	Enquiry
TI-ZOW310-16-08	End. ORFS 45° G1" hose 1/2"	12	-	In stock	Enquiry
TI-ZOW310-16-10	End. ORFS 45° G1", hose 5/8"	16	-	In stock	Enquiry
TI-ZOW310-19-10	End. ORFS 45° G1/4", hose 5/8"	16	-	In stock	Enquiry
TI-ZOW310-19-12	End. ORFS 45° G1/4", hose 3/4"	20	-	In stock	Enquiry
TI-ZOW310-23-12	End. ORFS 45° G1.7/16", hose 3/4"	20	-	In stock	Enquiry
TI-ZOW310-23-16	End. ORFS 45° G1.7/16", hose 1"	25	-	In stock	Enquiry
TI-ZOW310-27-20	End. ORFS 45° G1.11/16", hose 1.1/4"	32	-	In stock	Enquiry
TI-ZOW310-32-24	End. ORFS 45° G 2", hose 1.1/2"	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The standard hydraulic end type Z is a reliable and versatile solution designed for demanding hydraulic and industrial applications. Equipped with a classic hydraulic “tail” for hose connection, it features an internal UNF thread with nut and flat sealing system (ORFS), ensuring secure and leak-free performance even under high pressure. The 45° angled construction allows for flexible installation in confined spaces, making it easier to route hoses efficiently while maintaining optimal flow. Engineered for crimping with a sleeve matched to the specific hose type, this fitting guarantees durability and long-lasting stability of the connection. Manufactured from high-quality carbon steel and finished with a protective zinc coating, it offers excellent resistance to corrosion and wear, extending service life even in harsh working environments. This hydraulic end combines precision, strength, and reliability, making it an ideal choice for professionals seeking dependable components that enhance system safety and efficiency.
