Is the ORFS Hydraulic End ZOZ110, Carbon Steel, Y Type compatible with my hose and crimping sleeve specifications for high-pressure applications?

Yes — the ORFS Hydraulic End ZOZ110, Carbon Steel, Y Type is compatible with your hose and crimping sleeve specifications for high‑pressure applications, provided the following conditions are met: - Hose type and inner diameter match the fitting’s classic hydraulic “tail” dimensions (ensure nominal hose size corresponds to ZOZ110 tail size). - You use a crimping sleeve specifically sized for that hose and approved for the target working pressure; the fitting is engineered for crimped assemblies. - The crimping process follows manufacturer torque/radius and tooling specifications so the sleeve compresses correctly around the hose and tail. - System pressure does not exceed the rated pressure of the hose, sleeve, and ZOZ110 assembly; the ORFS face seal with integrated O‑ring is designed for excellent leak resistance under high pressure but must be paired with components rated for that pressure. - Materials and environment compatibility are acceptable (carbon steel body with zinc coating provides good corrosion and wear resistance; confirm suitability for fluids and operating conditions). If you confirm hose size, crimp sleeve model/rating, and intended working pressure, I can verify compatibility definitively.

Can ORFS Hydraulic End ZOZ110, Carbon Steel, Y Type be used with alternative hose materials or only with manufacturer-specified crimping sleeves for optimal sealing under high pressure?

ORFS Hydraulic End ZOZ110, Carbon Steel, Y Type is engineered to achieve optimal sealing and safety when used with crimping sleeves matched to the specific hose type. The product description states the fitting is designed for use with crimping sleeves tailored to the hose — the ORFS face seal and integrated O‑ring provide excellent leak resistance, but the mechanical integrity and high‑pressure performance depend on a properly crimped connection. Using alternative hose materials per se is acceptable if those hoses are compatible with the fitting’s dimensions, pressure rating and have manufacturer‑approved crimping sleeves or end fittings for that hose construction. Substituting non‑specified sleeves, improvised ferrules, or incompatible hose materials risks improper crimp geometry, reduced compression on the sealing surfaces, and potential leakage or catastrophic failure under high pressure. In short: for safe, reliable high‑pressure operation, use hoses and crimping sleeves approved for the hose type and crimping method recommended for ORFS Hydraulic End ZOZ110, Carbon Steel, Y Type; avoid non‑specified alternatives unless validated by engineering tests or manufacturer guidance.

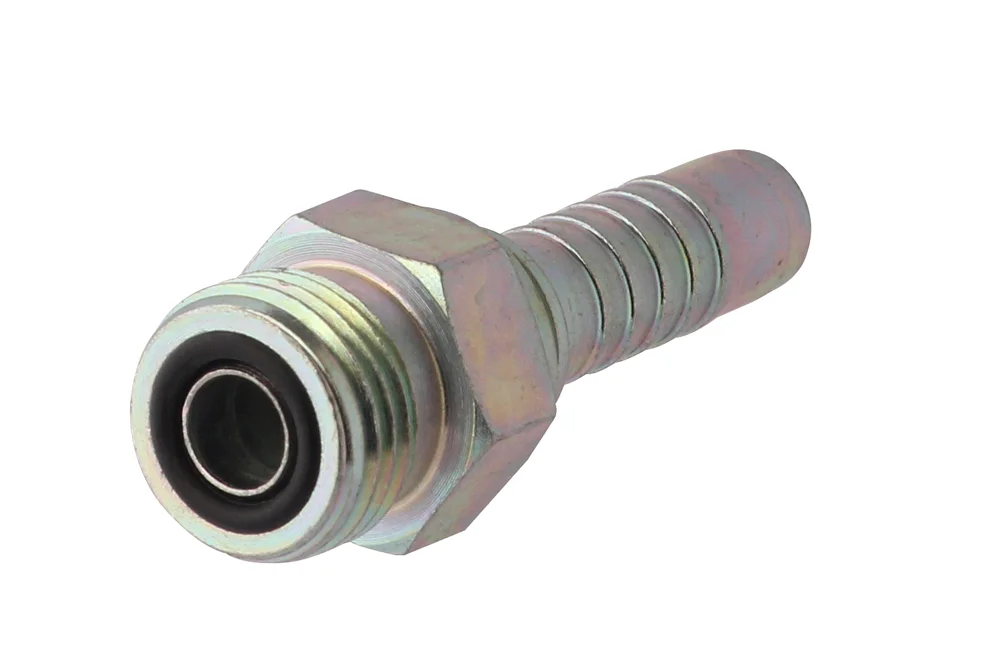

ORFS Hydraulic End ZOZ110, Carbon Steel, Y Type

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The standard hydraulic end type Z is a reliable and versatile solution designed for professional hydraulic and industrial applications. Equipped with a classic hydraulic “tail” for hose connection, it ensures secure and efficient assembly. The external UNF thread combined with an ORFS face seal and integrated O-ring guarantees excellent tightness, minimizing the risk of leakage even under high pressure. Engineered for use with crimping sleeves tailored to the specific hose type, this fitting provides a durable and precise connection that enhances system performance and safety. Manufactured from high-quality carbon steel and finished with a protective zinc coating, it offers outstanding resistance to corrosion and mechanical wear, extending service life even in demanding environments. Its robust construction and compatibility with a wide range of hoses make it an ideal choice for industries requiring reliable hydraulic connections, from construction and agriculture to manufacturing and heavy machinery. This fitting not only simplifies installation but also ensures long-term operational efficiency, making it a cost-effective and dependable component for modern hydraulic systems.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TI-ZOZ110-11-04-Y	End. ORFS GZ 11/16", hose 1/4"	6	-
TI-ZOZ110-11-06-Y	End. ORFS GZ 11/16", hose 3/8"	10	-
TI-ZOZ110-13-06-Y	End. ORFS GZ 13/16", hose 3/8"	10	-
TI-ZOZ110-13-08-Y	End. ORFS GZ 13/16", hose 1/2"	12	-
TI-ZOZ110-16-08-Y	End. ORFS GZ 1", hose 1/2"	12	-
TI-ZOZ110-16-10-Y	End. ORFS GZ 1", hose 5/8"	16	-
TI-ZOZ110-19-12-Y	End. ORFS GZ 1.3/16", hose 3/4"	20	-
TI-ZOZ110-23-16-Y	End. ORFS GZ 1.7/16", hose 1"	25	-

The standard hydraulic end type Z is a reliable and versatile solution designed for professional hydraulic and industrial applications. Equipped with a classic hydraulic “tail” for hose connection, it ensures secure and efficient assembly. The external UNF thread combined with an ORFS face seal and integrated O-ring guarantees excellent tightness, minimizing the risk of leakage even under high pressure. Engineered for use with crimping sleeves tailored to the specific hose type, this fitting provides a durable and precise connection that enhances system performance and safety. Manufactured from high-quality carbon steel and finished with a protective zinc coating, it offers outstanding resistance to corrosion and mechanical wear, extending service life even in demanding environments. Its robust construction and compatibility with a wide range of hoses make it an ideal choice for industries requiring reliable hydraulic connections, from construction and agriculture to manufacturing and heavy machinery. This fitting not only simplifies installation but also ensures long-term operational efficiency, making it a cost-effective and dependable component for modern hydraulic systems.
