Is the MSL Female Threaded Coupling with Smooth Tail and Lock, AISI 316 Steel, Brass Nut suitable for both rubber and selected plastic hoses under 25 bar pressure?

Yes. The MSL Female Threaded Coupling with Smooth Tail and Lock, AISI 316 Steel, Brass Nut Format is suitable for both rubber hoses and selected plastic hoses and is rated for working pressures up to 25 bar. It is designed for secure, quick assembly when used with shell clamps EN 14420-3 / DIN 2817 (RS 636… and RS 637…) or appropriate crimping sleeves. The hose tail is AISI 316 stainless steel for excellent corrosion resistance, the rotating nut is brass, and a flat PTFE gasket is included for reliable sealing. Operating temperature range: -20°C to +65°C (EN-14420).

Can the MSL Female Threaded Coupling with Smooth Tail and Lock, AISI 316 Steel, Brass Nut be used with shell clamps EN 14420-3 / DIN 2817 or crimping sleeves for quick and secure assembly?

Yes. The MSL Female Threaded Coupling with Smooth Tail and Lock, AISI 316 Steel, Brass Nut is suitable for use with shell clamps EN 14420-3 / DIN 2817 (e.g., RS 636… and RS 637…) or with appropriate crimping sleeves. It is designed for rubber and selected plastic hoses and allows quick, secure assembly with those clamp/crimp systems. Made with an AISI 316 stainless steel hose end and a brass rotating nut, it provides corrosion resistance and durable operation, includes a flat PTFE gasket for reliable sealing, and is rated for up to 25 bar and −20°C to +65°C per EN-14420.

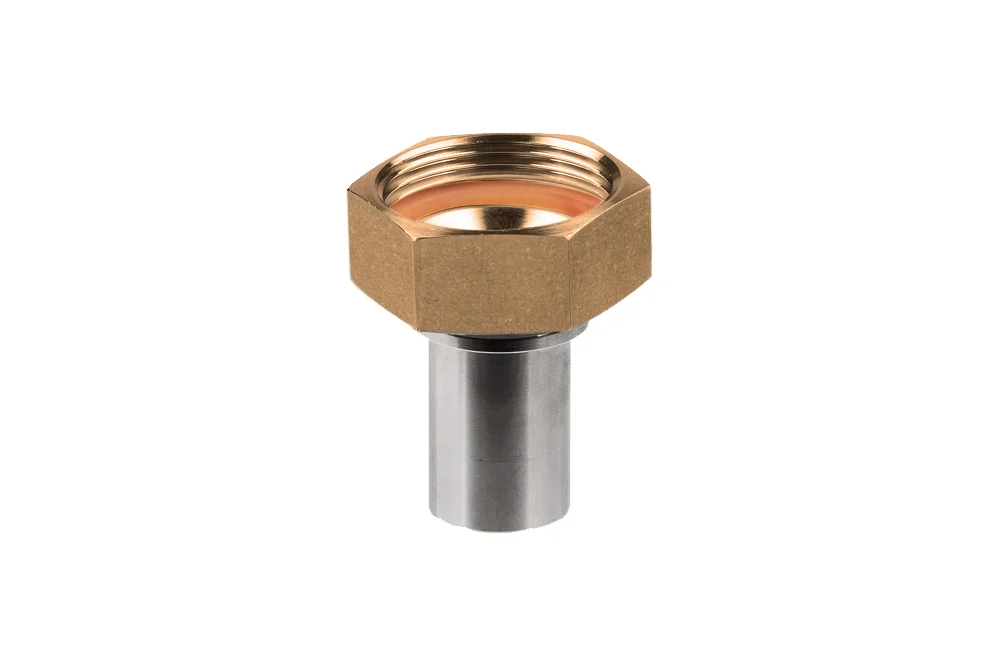

MSL Female Threaded Coupling with Smooth Tail and Lock, AISI 316 Steel, Brass Nut

All products, Threaded couplings and adapters/

Additional information

Material	SS – stainless steel

The MSL internal BSP threaded connector with rotating nut and hose end is a reliable solution for secure and durable hose connections in demanding industrial environments. Designed for use with rubber hoses as well as selected plastic hoses, it ensures quick and safe assembly when combined with shell clamps EN 14420-3 / DIN 2817 (RS 636… and RS 637…) or with suitable crimping sleeves. With a working pressure of up to 25 bar, this connector guarantees consistent performance under intensive operating conditions. The hose end is manufactured from high-grade stainless steel AISI 316, providing excellent corrosion resistance, while the rotating nut is made of robust brass for long-lasting functionality. A flat PTFE gasket is included as standard, ensuring reliable sealing and leak-free operation. Engineered to operate within a temperature range of -20°C to +65°C in accordance with EN-14420, this connector combines strength, safety, and versatility, making it an ideal choice for industries requiring dependable hose connections and optimal efficiency.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GD-MSLB-025-019-SSMS	MSL GW BSP 1" connector, for 19 mm hose, AISI 316, brass nut	20	25	In stock	Enquiry
GD-MSLB-025-025-SSMS	MSL GW BSP 1" connector, for 25 mm hose, AISI 316, brass nut	25	25	In stock	Enquiry
GD-MSLB-032-025-SSMS	MSL GW BSP 1.1/4" connector, for 25 mm hose, AISI 316, brass nut	25	25	In stock	Enquiry
GD-MSLB-032-032-SSMS	MSL connection GW BSP 1.1/4", for hose 32 mm, AISI 316, brass nut	32	25	In stock	Enquiry
GD-MSLB-038-032-SSMS	MSL GW BSP 1.1/2" connector, for hose 32 mm, AISI 316, brass nut	32	25	In stock	Enquiry
GD-MSLB-038-038-SSMS	MSL GW BSP 1.1/2" connector, for hose 38 mm, AISI 316, brass nut	38	25	In stock	Enquiry
GD-MSLB-050-038-SSMS	MSL GW BSP 2" connector, for 38 mm hose, AISI 316, brass nut	38	25	In stock	Enquiry
GD-MSLB-050-050-SSMS	MSL GW BSP 2" connector, for 50 mm hose, AISI 316, brass nut	50	25	In stock	Enquiry
GD-MSLB-065-050-SSMS	MSL GW BSP connector 2.1/2", for hose 50 mm, AISI 316, brass nut	50	25	In stock	Enquiry
GD-MSLB-065-065-SSMS	MSL GW BSP 2.1/2" connector, for hose 65 mm, AISI 316, brass nut	65	25	In stock	Enquiry
GD-MSLB-080-075-SSMS	MSL GW BSP 3" connector, for 75 mm hose, AISI 316, brass nut	75	25	In stock	Enquiry
