Is the Connector with BSP Female Thread and Corrugated Tail Shell Clamp, Type MSLR suitable for continuous operation at 25 bar and within -20°C to +65°C?

Yes. The Connector with BSP Female Thread and Corrugated Tail Shell Clamp, Type MSLR is specified for continuous operation at up to 25 bar and within the temperature range −20°C to +65°C. It is designed to EN 14420-3 / DIN 2817 standards, offers durable hose connection with a corrugated tail, and comes in brass (MS) or stainless steel 316 (SS) with appropriate gaskets (polyurethane for brass, PTFE for SS) to ensure reliable performance and tightness under those conditions.

Can the Connector with BSP Female Thread and Corrugated Tail Shell Clamp, Type MSLR be used with aggressive chemicals or abrasive media without compromising its gasket and material integrity?

Connector with BSP Female Thread and Corrugated Tail Shell Clamp, Type MSLR can handle many demanding industrial fluids, but suitability with aggressive chemicals or highly abrasive media depends on selected materials and gasket type. Key points: - Material choice: Stainless steel 316 versions offer substantially better corrosion resistance to many aggressive chemicals than brass (MS). For strongly corrosive media, SS316 is the preferred option; brass may degrade with acids, chlorides or other aggressive agents. - Gasket compatibility: Standard flat gaskets are polyurethane for brass and PTFE for stainless steel. PTFE provides excellent chemical resistance across a wide range of aggressive solvents, acids and alkalis; polyurethane is less resistant to strong chemicals and may swell or degrade with certain solvents. - Abrasive media: Neither version is specifically hardened against heavy abrasion; abrasive solids in the fluid can wear the corrugated tail and sealing surfaces over time. Stainless steel resists wear better than brass, but high-solid or highly abrasive slurries will shorten service life and may compromise seal integrity. - Temperature/pressure limits: Designed for up to 25 bar and -20°C to +65°C. Chemical compatibility must be evaluated within these limits; elevated temperatures can accelerate chemical attack or gasket failure. Recommendation: For aggressive chemicals choose the SS316 with PTFE gasket and verify chemical compatibility against the specific media and operating temperature. For abrasive slurries consider hardened or abrasion-resistant alternatives, additional filtration, or more frequent inspection/replacement.

Connector with BSP Female Thread and Corrugated Tail Shell Clamp, Type MSLR

All products, Threaded couplings and adapters/

Additional information

Material	B – brass (bronze)
Standard length [m]	15

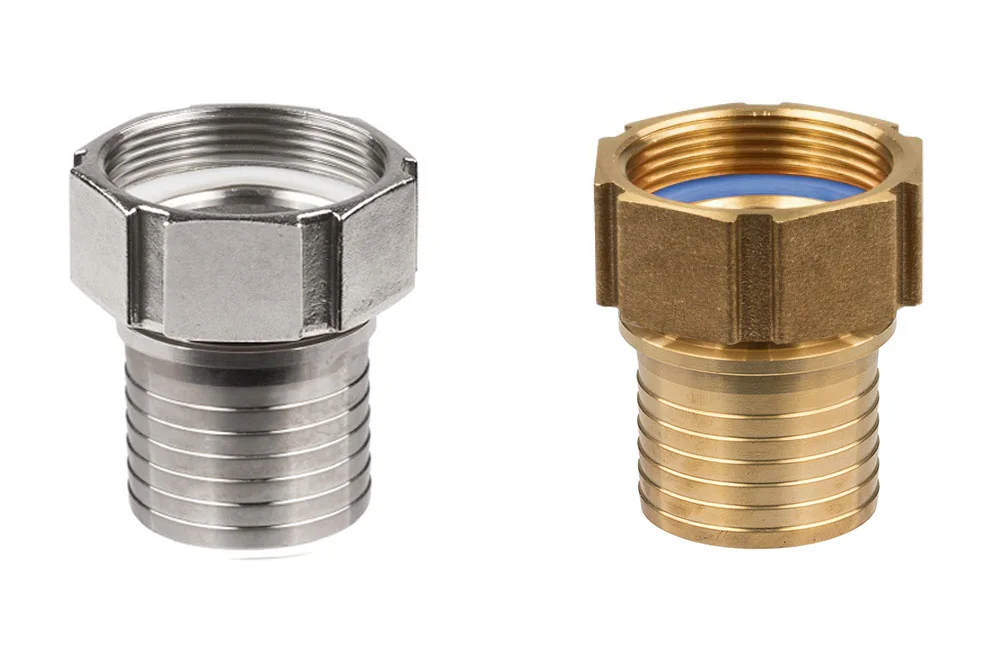

The internal BSP threaded coupling type MSLR is a robust and reliable solution designed in accordance with EN 14420-3 / DIN 2817 standards, perfectly matching the dedicated clamp indices RS 636… and RS 637…. Equipped with a corrugated tail, it ensures secure and durable hose connections, making it ideal for demanding industrial applications such as material handling and fluid transfer. With a working pressure of up to 25 bar, this coupling guarantees consistent performance even under intensive operating conditions. Available in high-quality brass (MS) or corrosion-resistant stainless steel 316 (SS), it offers excellent durability and resistance to wear. The flat gasket seal is included as standard, with polyurethane for brass versions and PTFE for stainless steel, ensuring reliable tightness and extended service life. Designed to operate within a temperature range from -20°C to +65°C, this coupling provides versatility and safety across a wide spectrum of industrial environments, delivering both efficiency and long-term reliability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GD-MSLRB-025-025-MS	MSLR GW BSP 1" connector, with a ribbed tail for a 25 mm hose, brass	25	25	In stock	Enquiry
GD-MSLRB-025-025-SS	MSLR GW BSP 1" connector, with a corrugated tail for a 25 mm hose, AISI 316	25	25	In stock	Enquiry
GD-MSLRB-032-032-MS	MSLR GW BSP 1 1/4" connector, with a ribbed tail for 32 mm hose, brass	32	25	In stock	Enquiry
GD-MSLRB-032-032-SS	MSLR GW BSP 1 1/4" connector, with a ribbed tail for 32 mm hose, AISI 316	32	25	In stock	Enquiry
GD-MSLRB-038-038-MS	MSLR GW BSP 1 1/2" connector, with a corrugated tail for a 38 mm hose, brass	38	25	In stock	Enquiry
GD-MSLRB-038-038-SS	MSLR GW BSP 1 1/2" connector, with a corrugated tail for a 38 mm hose, AISI 316	38	25	In stock	Enquiry
GD-MSLRB-050-050-MS	MSLR GW BSP 2" connector, with a ribbed tail for a 50 mm hose, brass	50	25	In stock	Enquiry
GD-MSLRB-050-050-SS	MSLR GW BSP 2" connector, with a corrugated tail for a 50 mm hose, AISI 316	50	25	In stock	Enquiry
GD-MSLRB-063-063-MS	MSLR GW BSP 2 1/2" connector, with a corrugated tail for hose 63/65 mm, brass	65	25	In stock	Enquiry
GD-MSLRB-063-063-SS	MSLR GW BSP 2 1/2" connector, with a corrugated tail for hose 63/65 mm, AISI 316	65	25	In stock	Enquiry
GD-MSLRB-080-075-MS	MSLR GW BSP 3" connector, with a corrugated tail for a 75 mm hose, brass	75	25	In stock	Enquiry
GD-MSLRB-080-075-SS	MSLR GW BSP 3" connector, with a corrugated tail for a 75 mm hose, AISI 316	75	25	In stock	Enquiry
GD-MSLRB-100-100-MS	MSLR GW BSP 4" connector, with a corrugated tail for a 100 mm hose, brass	100	25	In stock	Enquiry
GD-MSLRB-100-100-SS	MSLR GW BSP 4" connector, with a corrugated tail for a 100 mm hose, AISI 316	100	25	In stock	Enquiry
