Can the Nickel-Plated Brass Pressure Gauge Shut-Off Valve, Female Thread, Type FPEA be panel-mounted using the threaded section under the knob and the separate DC-FPE-FPEA adapter?

Yes. The Nickel-Plated Brass Pressure Gauge Shut-Off Valve, Female Thread, Type FPEA can be panel-mounted using the threaded section under the knob and the separate DC-FPE-FPEA adapter. The valve’s threaded design beneath the knob is specifically provided for convenient panel installation, and the dedicated DC-FPE-FPEA adapter (ordered separately) ensures a secure, precise connection. This configuration preserves the valve’s isolation function, allows controlled opening for manometer protection, and enables quick, safe replacement while maintaining reliable sealing and mechanical strength.

Is the Nickel-Plated Brass Pressure Gauge Shut-Off Valve, Female Thread, Type FPEA compatible with standard 1/4" BSP pressure gauges and fittings?

Yes. The Nickel-Plated Brass Pressure Gauge Shut-Off Valve, Female Thread, Type FPEA is compatible with standard 1/4" BSP pressure gauges and fittings. It features dual 1/4" BSP female connections designed for universal applicability in manometric systems, and its threaded design (with optional DC-FPE-FPEA adapter if needed) allows secure, precise panel mounting and connection. Materials and NBR sealing ensure reliable tightness and performance across -20°C to +100°C.

Valve pressure-gauge shut-off with thread internal, brass nickel-plated, type FPEA

All products, Manometers reducers and valves/

Additional information

Material	B – brass (bronze)

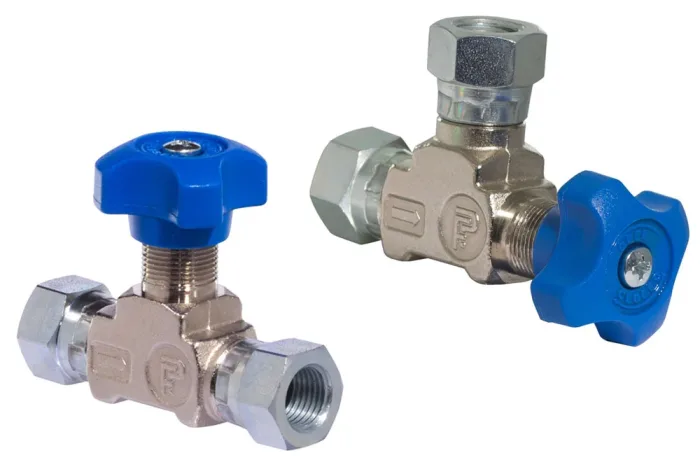

Brass needle valve shut-off with connection under pressure gauge, used in systems hydraulic as element insulating pressure gauge od installation. valve secures pressure gauge against overload and stroke pressure during opening and allows its replacement. occurs in two versions: straight – in-line (FPE) and angled 90° (FPEA). has thread under knob, enabling assembly panel. Do valve should use adapter o index DC-FPE-FPEA, tightened for the connection with thread internal (ordered separately). Material: brass nickel-plated (body), steel carbon (needle), steel galvanized (connection – A nut), plastic (knob). sealing: NBR. Connection: 2 x 1/4″ BSP female (pressure-gauge). Operating temperature: od -20°C up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
DC-FPE-2G-04	Valve man. shut-off straight FPE, 2 x female 1/4” BSP	-	350	In stock	0 €		Enquiry
DC-FPEA-2G-04	Valve man. shut-off angled FPEA, 2 x female 1/4” BSP	-	350	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Brass needle valve shut-off with connection under pressure gauge, used in systems hydraulic as element insulating pressure gauge od installation. valve secures pressure gauge against overload and stroke pressure during opening and allows its replacement. occurs in two versions: straight – in-line (FPE) and angled 90° (FPEA). has thread under knob, enabling assembly panel. Do valve should use adapter o index DC-FPE-FPEA, tightened for the connection with thread internal (ordered separately). Material: brass nickel-plated (body), steel carbon (needle), steel galvanized (connection – A nut), plastic (knob). sealing: NBR. Connection: 2 x 1/4″ BSP female (pressure-gauge). Operating temperature: od -20°C up to +100°C.
