Is the Straight Bulkhead Connector, Type R10 suitable for both vacuum and compressed air applications up to 16 bar?

Yes. The Straight Bulkhead Connector, Type R10 is suitable for both vacuum and compressed air applications up to 16 bar. Made of nickel-plated brass with NBR sealing, it provides secure mechanical and pneumatic sealing, corrosion resistance, repeated assembly capability, and a temperature range of -20°C to +80°C, ensuring reliable performance in demanding pneumatic and vacuum systems.

Can the Straight Bulkhead Connector, Type R10 withstand repeated assembly and disassembly without losing pneumatic or mechanical sealing integrity?

Yes. The Straight Bulkhead Connector, Type R10 is designed for repeated assembly and disassembly without losing pneumatic or mechanical sealing integrity. Made of nickel-plated brass for wear and corrosion resistance and using NBR seals, it supports quick, repeated connections while maintaining tightness and durability. Rated for up to 16 bar and compatible with vacuum and compressed air, it preserves reliable sealing over many cycles across a wide temperature range (‑20°C to +80°C), making it suitable for demanding industrial use.

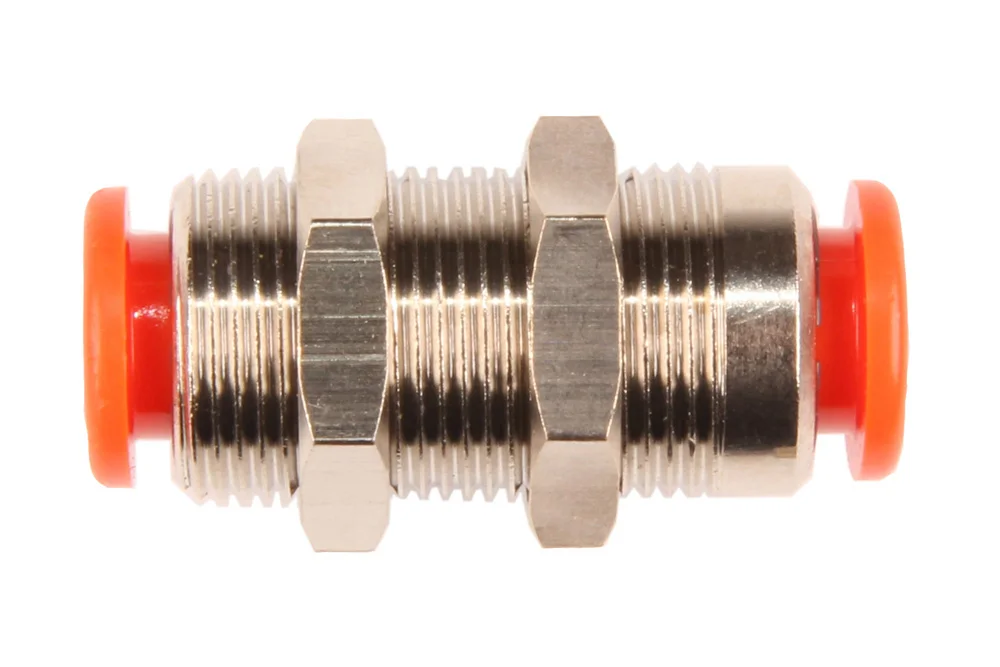

Straight Bulkhead Connector, Type R10

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

The straight plug-in partition fitting type R10 is a reliable solution designed for effortless connection of wires and components in pneumatic systems, ensuring secure and durable performance in every application. Manufactured from high-quality nickel-plated brass, it combines strength with excellent resistance to wear and corrosion, making it ideal for demanding industrial environments. Its user-friendly design allows for quick and repeated assembly without compromising sealing integrity, both mechanically and pneumatically. With a working pressure of up to 16 bar and compatibility with vacuum and compressed air, this fitting guarantees versatility across various processes. The NBR sealing ensures optimal tightness and long-lasting durability, while the wide operating temperature range from -20°C to +80°C provides consistent functionality in diverse conditions. This makes the R10 fitting a dependable choice for professionals seeking efficiency, safety, and reliability in pneumatic installations.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2011002	R10 bulkhead fitting with nuts, 5 mm hose - 5 mm hose	-	16	In stock	Enquiry
MW-2011006	RL10 bulkhead fitting with nuts, 12 mm hose - 12 mm hose	-	16	In stock	Enquiry
MW-2011007	RL10 bulkhead fitting with nuts, 14 mm hose - 14 mm hose	-	16	In stock	Enquiry
MW-2011A01	R10 bulkhead fitting with nuts, hose 3.17 mm - hose 3.17 mm	-	16	In stock	Enquiry
MW-2011A02	R10 bulkhead fitting with nuts, 3 mm hose - 3 mm hose	-	16	In stock	Enquiry
MW-2L11001	RL10 bulkhead fitting with nuts, 4 mm hose - 4 mm hose	-	16	In stock	Enquiry
MW-2L11003	RL10 bulkhead fitting with nuts, hose 6 mm - hose 6 mm	-	16	In stock	Enquiry
MW-2L11004	RL10 bulkhead fitting with nuts, 8 mm hose - 8 mm hose	-	16	In stock	Enquiry
MW-2L11005	RL10 bulkhead fitting with nuts, hose 10 mm - hose 10 mm	-	16	In stock	Enquiry
MW-2L11301	RL10 reduced partition connector with nuts, 6 mm hose - 4 mm hose	-	16	In stock	Enquiry
MW-2L11302	RL10 reduced partition connector with nuts, 8 mm hose - 4 mm hose	-	16	In stock	Enquiry
MW-2L11303	RL10 reduced partition connector with nuts, 8 mm hose - 6 mm hose	-	16	In stock	Enquiry
MW-2L11304	RL10 reduced partition connector with nuts, 10 mm hose - 6 mm hose	-	16	In stock	Enquiry
MW-2L11305	RL10 reduced partition connector with nuts, 10 mm hose - 8 mm hose	-	16	In stock	Enquiry
MW-2L11306	RL10 reduced partition fitting with nuts, 12 mm hose - 6 mm hose	-	16	In stock	Enquiry
MW-2L11307	RL10 reduced partition connector with nuts, 12 mm hose - 8 mm hose	-	16	In stock	Enquiry
MW-2L11308	RL10 reduced partition fitting with nuts, 12 mm hose - 10 mm hose	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The straight plug-in partition fitting type R10 is a reliable solution designed for effortless connection of wires and components in pneumatic systems, ensuring secure and durable performance in every application. Manufactured from high-quality nickel-plated brass, it combines strength with excellent resistance to wear and corrosion, making it ideal for demanding industrial environments. Its user-friendly design allows for quick and repeated assembly without compromising sealing integrity, both mechanically and pneumatically. With a working pressure of up to 16 bar and compatibility with vacuum and compressed air, this fitting guarantees versatility across various processes. The NBR sealing ensures optimal tightness and long-lasting durability, while the wide operating temperature range from -20°C to +80°C provides consistent functionality in diverse conditions. This makes the R10 fitting a dependable choice for professionals seeking efficiency, safety, and reliability in pneumatic installations.
