Is the BURGACLIP Steel Tip GW UNF ORFS, Type 54501 compatible with 3090 type air conditioning hoses and which clamp size is recommended?

Yes — the BURGACLIP Steel Tip GW UNF ORFS, Type 54501 is compatible with 3090 type air conditioning hoses. The product description explicitly states it is designed for flat sealing and reliable integration with 3090 rubber hoses, providing a secure, leak‑free connection and durable performance under pressure. Recommended clamp size: choose a clamp or band sized for the outer diameter of the 3090 hose when the fitting is installed. While the fitting itself does not list a single clamp size, use a professional hose clamp that matches the hose outer diameter range (typically specified by the hose manufacturer for 3090 type hoses). For best results, select a heavy‑duty stainless steel or band clamp whose adjustable range comfortably covers the hose OD with the fitting inserted to ensure proper compression for a flat seal and long‑term reliability.

Does the BURGACLIP Steel Tip GW UNF ORFS, Type 54501 require specific installation torque or tools for secure sealing with 3090 hoses?

BURGACLIP Steel Tip GW UNF ORFS, Type 54501 does not explicitly require a unique installation torque in the provided description. It is engineered for flat sealing with 3090 type air conditioning hoses to ensure a secure, leak‑free connection and long‑term durability. For best results and reliable sealing you should: - Use the correct UNF/ORFS mating thread and ensure clean, undamaged sealing surfaces. - Hand‑start threads and tighten until flat seal engages; avoid over‑torquing which can deform the sealing face or hose. - Follow the vehicle or hose manufacturer’s recommended torque values for UNF/ORFS fittings when available. - Use suitable tools (wrenches sized for the fitting) and, if using clamps or bands (sold separately), select and tighten them per the clamp manufacturer’s specs to secure the rubber hose. If no specific torque is supplied, consult system manufacturer documentation or a professional technician to determine appropriate torque for your application.

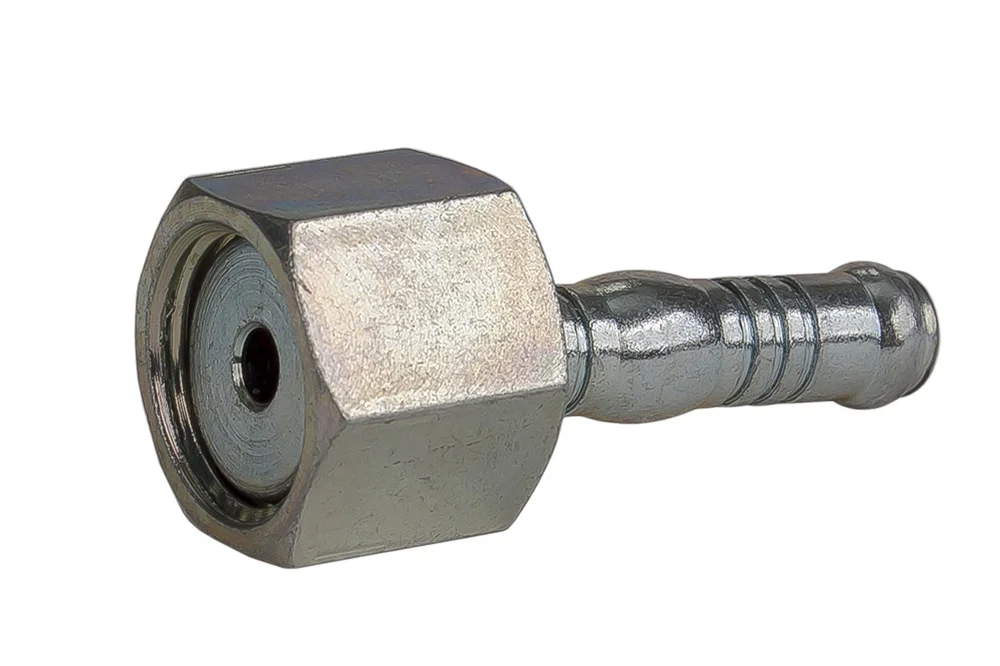

A fitting BURGACLIP with a female UNF thread ORFS, steel, type 54501

Additional information

Material	CS – steel (cast iron)

A fitting BURGACLIP with thread internal UNF ORFS – sealing flat, for hose for air conditioning type 3090. allows on connection lines rubber with element the system air conditioning. clips and clamps available as separate assortment. Material: steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
BU-54501-04-06-S	Fitting BC ORFS, 9/16" female, hose 5/16", steel	-	35	In stock	Enquiry
BU-54501-06-06-S	Fitting BC ORFS, 11/16" female, hose 5/16", steel	-	35	In stock	Enquiry
BU-54501-08-08-S	Fitting BC ORFS, 13/16" female, hose 13/32", steel	-	35	In stock	Enquiry
BU-54501-10-10-S	Fitting BC ORFS, 1" female, hose 1/2", steel	-	35	In stock	Enquiry
BU-54501-12-12-S	Fitting BC ORFS, 1.3/16" female, hose 5/8", steel	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting BURGACLIP with thread internal UNF ORFS – sealing flat, for hose for air conditioning type 3090. allows on connection lines rubber with element the system air conditioning. clips and clamps available as separate assortment. Material: steel.
