HOSES AND FITTINGS FOR INDUSTRY

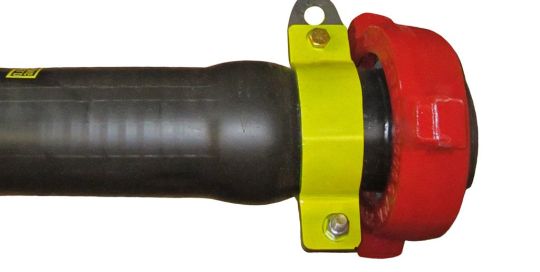

Rubber hose assembly for drilling mud compliant with API 7K Application flexible connection between a swivel (gooseneck) and a standpipe Medium drilling mud Pressure 395 bar (5000 psi) Working temperature ambient Assembly technology external crimping Testing 690 bar (10000 psi)/hydrostatic Description: rubber hose assembly with Hammer Lug union FIG. 1502 at both ends [...]

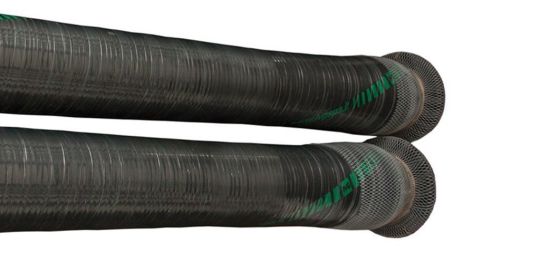

Sea water rubber hose assembly with vulcanised flanges Application engine cooling on a drilling rig Medium sea water Pressure 10 bar Working temperature 20°C Assembly technology vulcanised flanges Testing 30 bar/hydrostatic Description: rubber hose assembly with vulcanized flanges DN200 PN 10 made of carbon steel at both ends. Overall length 12500 mm. [...]

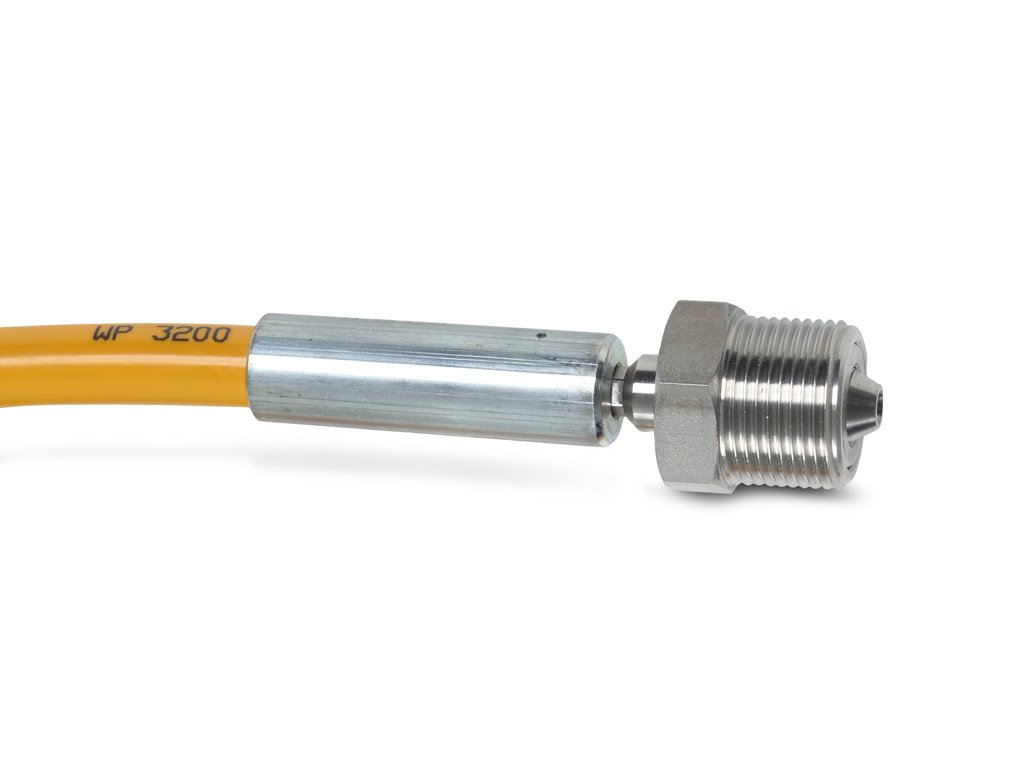

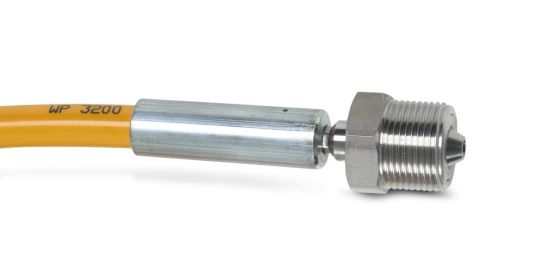

Ultra high pressure hose assembly for methanol Application dehydratation – natural gas purification Medium methanol Pressure 1000 bar Working temperature 20°C Testing 1560 bar/hydrostatic Assembly technology: external crimping with the use of special crimping machine and special die sets (slow dice movement to eliminate the risk of microcracks, which may occur in [...]

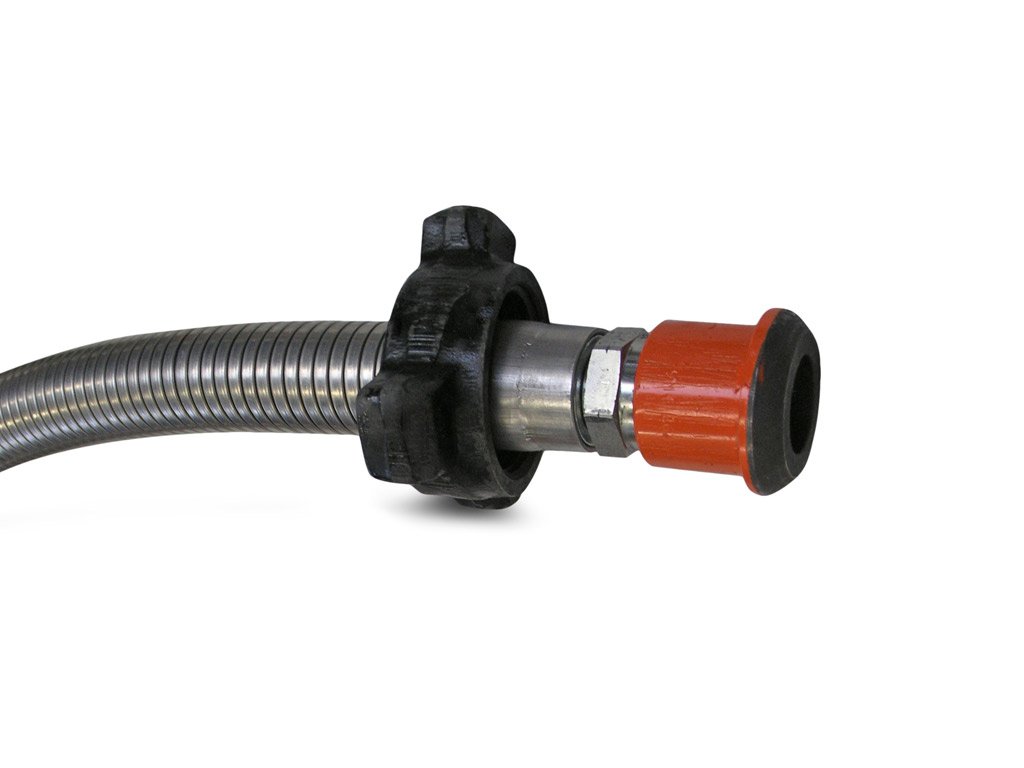

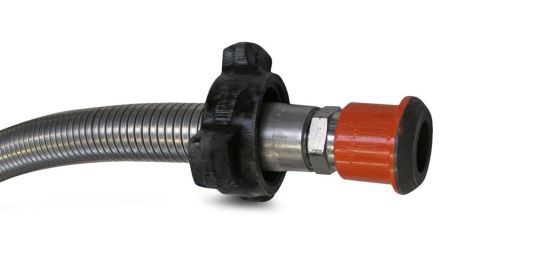

Multispiral rubber hose assembly for hydraulic oil Application blowout preventers control Medium hydraulic oil Pressure 210 bar Working temperature 20°C Assembly technology external crimping Testing 420 bar/hydrostatic Description: multispiral 4SP rubber hose assembly DN25 with 1” HAMMER LUG union FIG.602 (male part + nut at one end, female part at the other end) [...]

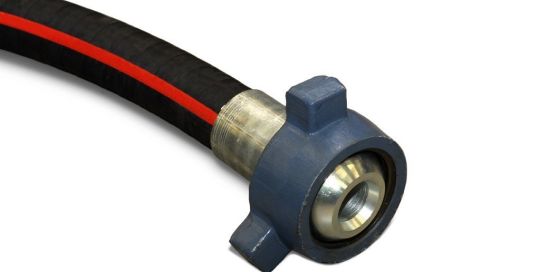

Hydraulic hose assembly for drilling mud, cement Application general-purpose hose assembly (cementing, manifold connection, injection) Medium drilling fluid, cement Pressure 350 bar Working temperature ambient Testing 700 bar/ hydrostatic Assembly technology: assembly of integral fittings - this version of HAMMER LUG coupling allows to crimp it directly on a hydraulic hose (type R13,R15) [...]

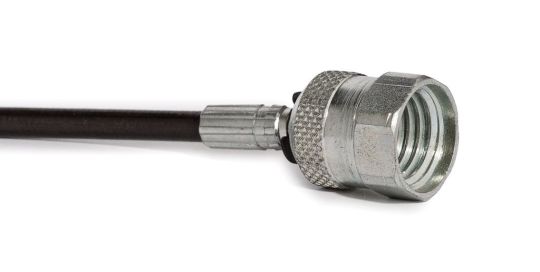

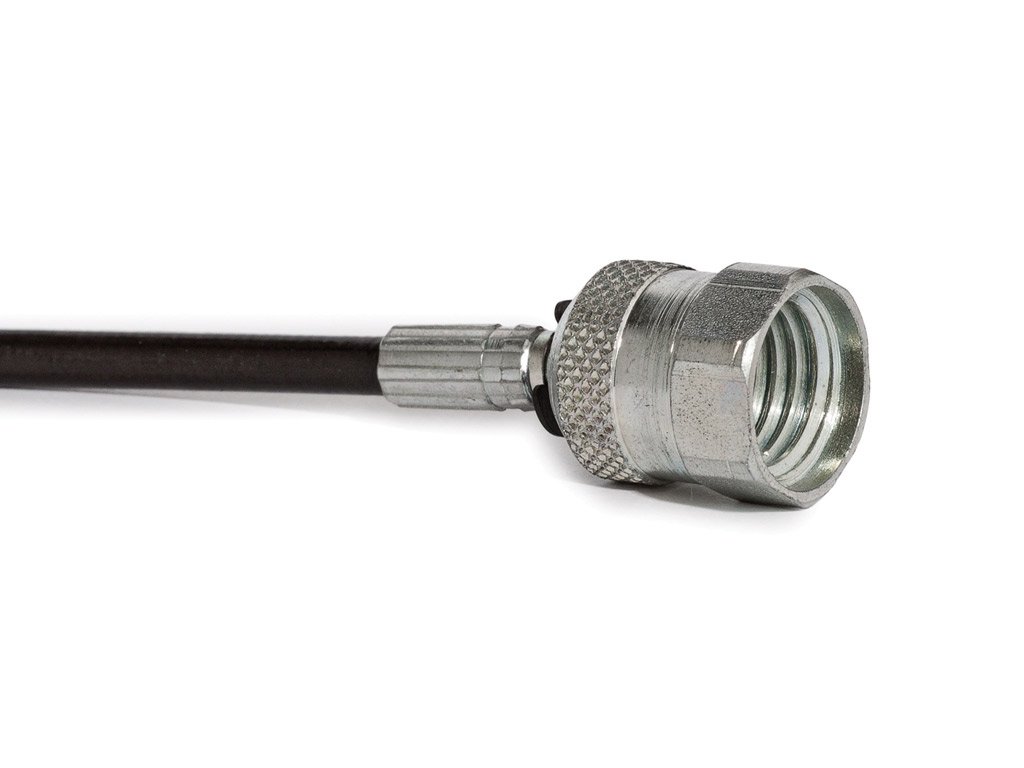

Thermoplastic hose assembly for  measuring system of hydraulic unit Application measuring system of a top drive power unit Medium hydraulic oil Pressure 300 bar Working temperature ambient Assembly technology external crimping Testing 600 bar / hydrostatic Description: lightweight, flexible thermoplastic hose designed for hydraulic control and measuring systems. Female thread M16x2 fittings made [...]

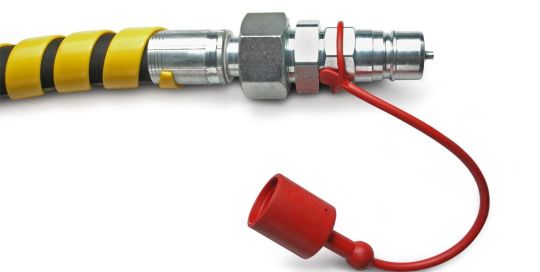

Rubber hydraulic hose assembly for hydraulic oil Application hydraulic connection of a top drive power unit Medium hydraulic oil Pressure 210 bar Working temperature 20°C Assembly technology external crimping Testing 420 bar/hydrostatic Description: multispiral rubber hydraulic hose assembly DN38 with 1 1/2“ QUICK RELEASE COUPLING DP-PVV3 (socket at one end, and plug at [...]

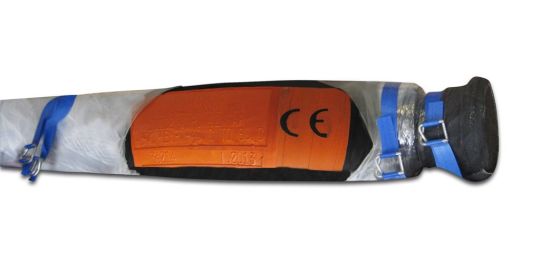

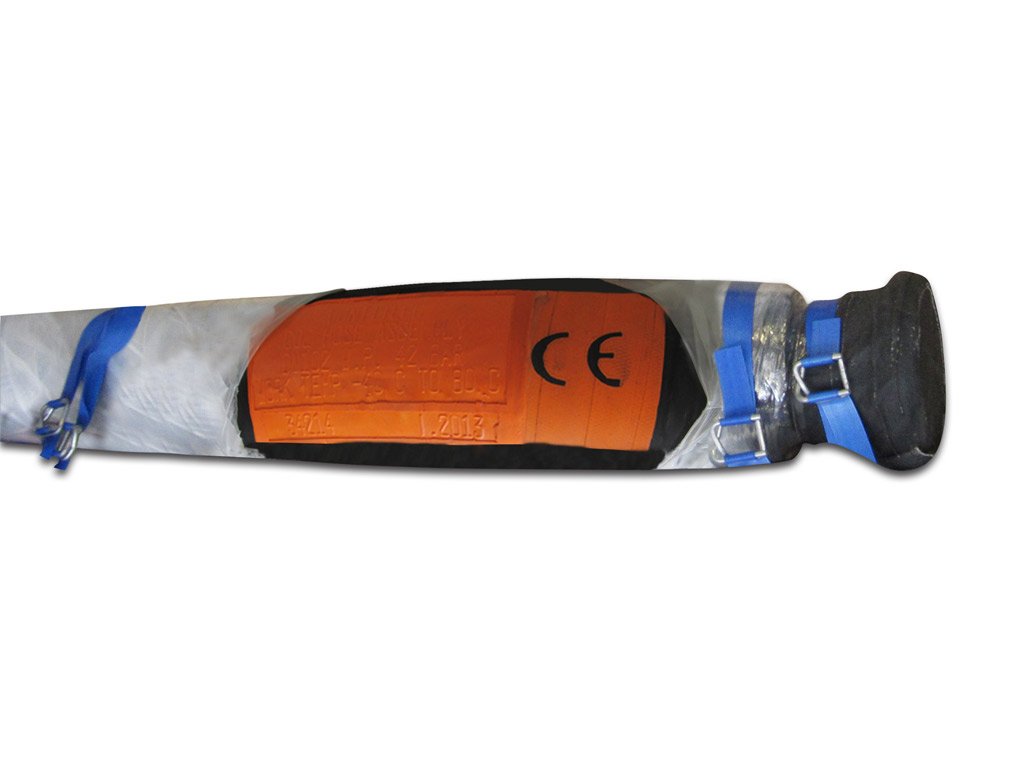

Rubber hose assembly for CO2 unloading Application unloading of CO2 from a tanker truck (connected to a pump) Medium CO2 Pressure 42 bar Working temperature ambient Testing 63 bar/hydrostatic Assembly technology: built-in (vulcanised) rubber protected flanges. Fittings are vulcanised together with a hose during hose production process - integrated with the hose, coated [...]

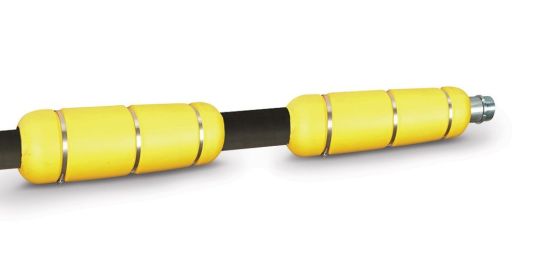

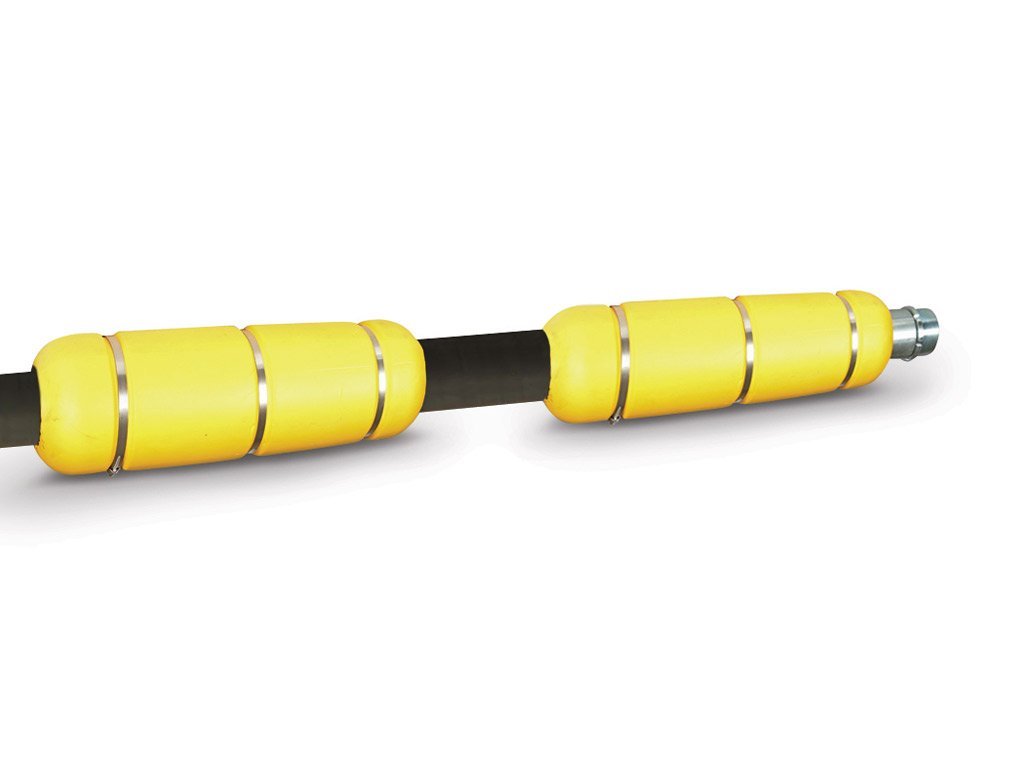

Rubber hose assembly for light diesel oil Application supply line between an oil rig and PSV (Platform Supply Vessel) Medium light diesel oil Pressure 10 bar Working temperature ambient Testing 15 bar/hydrostatic Assembly technology: internal swaging - an internal swaging system provides reliable and safe fitting-hose connection. It ensures full and unrestricted flow [...]

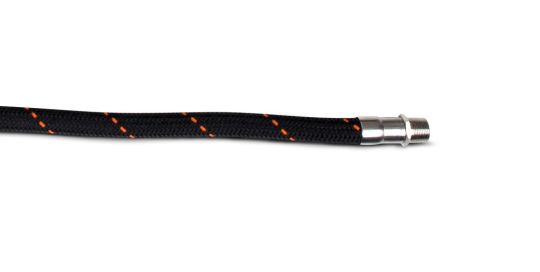

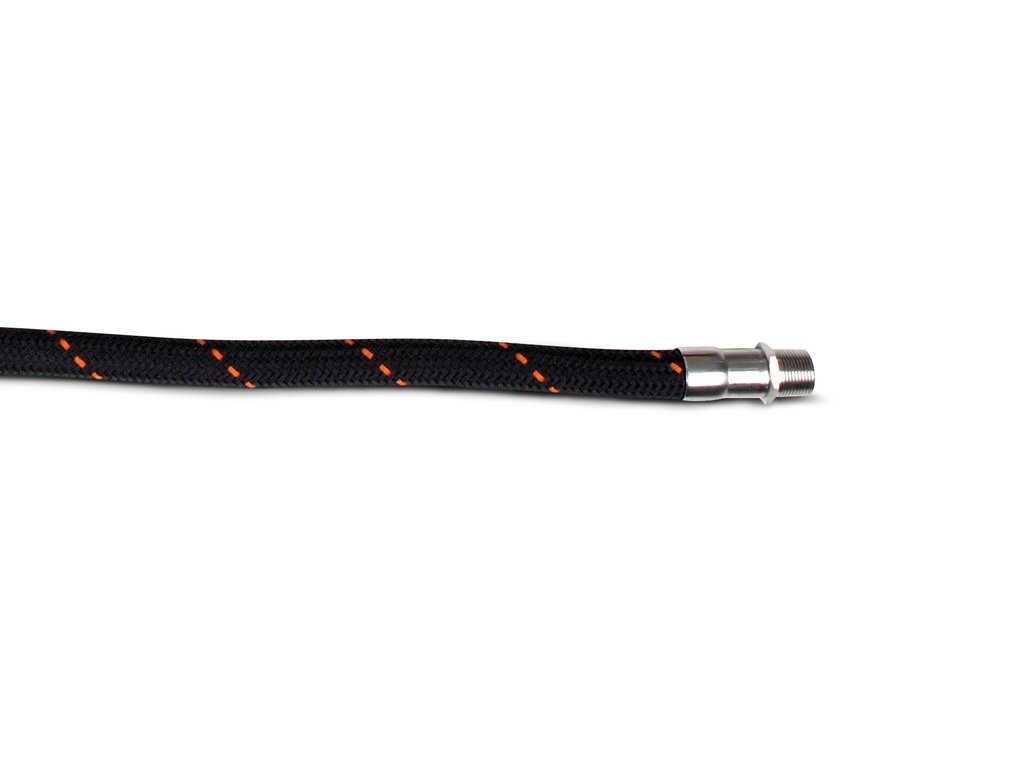

PTFE hose assembly for glycol Application dehydration systems – removing water from natural gas Medium glycol Pressure 2 bar Working temperature 100°C Assembly technology external crimping Testing 6 bar/hydrostatic Description: corrugated inside and outside, to ensure exceptional flexibility, PTFE hose assembly VISIFLON DN32 in polypropylene braid. PP braid is very light but extremely [...]
