Is the RIG STAR D Delivery Hose for Oil, Mud and Drilling Waste suitable for offshore North Sea drilling and land-based use?

Yes. The RIG STAR D Delivery Hose for Oil, Mud and Drilling Waste is explicitly designed for offshore operations (including North Sea drilling platforms) and is also well suited for land-based industrial use. Key reasons: - Materials and resistance: inner antistatic black NBR rubber resists hydrocarbons and aromatics; outer CR chloroprene rubber resists flames, abrasion, ozone, seawater and harsh weather. - Safety features: integrated copper wire ensures electrical continuity and antistatic performance for sensitive environments. - Performance: handles crude oil, petrochemical products and drilling cuttings (up to 50% aromatics), cement, barite, seawater and brine. - Operational ratings: working pressure 20 bar; temperature range −30°C to +85°C, supporting reliable service life in extreme offshore and varied land conditions. In short, it’s a trusted choice for North Sea offshore platforms and is fully applicable to demanding land-based applications.

Can the RIG STAR D Delivery Hose for Oil, Mud and Drilling Waste handle abrasive solids like barite and cement over long-term offshore use?

Yes. The RIG STAR D Delivery Hose for Oil, Mud and Drilling Waste is specifically engineered to handle abrasive solids such as barite and cement during long‑term offshore use. Key reasons: - Inner smooth antistatic NBR rubber resists hydrocarbons and provides a wear‑resistant surface that reduces internal abrasion. - Multiple layers of high‑strength synthetic cord give exceptional reinforcement and durability to withstand mechanical stress from abrasive slurries. - Outer CR chloroprene rubber offers excellent abrasion and seawater resistance, protecting the hose from external wear and harsh offshore conditions. - Proven offshore design and operational history on North Sea drilling platforms indicate suitability for prolonged, demanding service. - 20 bar working pressure and −30°C to +85°C temperature rating support reliable, long‑term operation across typical offshore temperature/pressure ranges. - Integrated copper wire for electrical continuity enhances safety when handling conductive, particle‑laden fluids. For maximum service life, follow recommended flow velocities, regular inspection, flushing schedules and abrasion monitoring; proper selection of diameter, fittings and operational procedures will further mitigate wear.

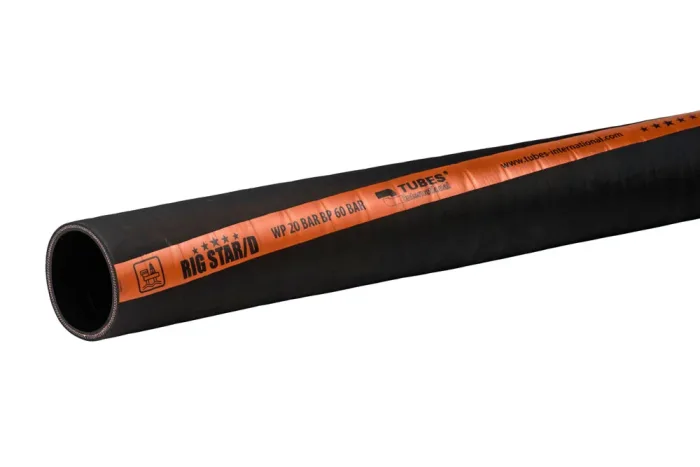

RIG STAR D Delivery Hose for Oil, Mud and Drilling Waste

All products, Oil and petroleum hoses, Star series/

Additional information

Material	NBR – nitrile rubber
Maximum operating temperature [°C]	85
Minimum operating temperature [°C]	-30
Vacuum resistance	no
Standard length [m]	60
Reinforcement	synthetic braid

This heavy-duty suction hose is engineered for the safe and efficient transfer of crude oil, petrochemical products, and drilling cuttings containing up to 50% aromatic compounds, while also proving highly effective for cement, barite, seawater, and brine applications. Its inner layer of smooth, antistatic black NBR rubber ensures reliable resistance to hydrocarbons, while multiple layers of high-strength synthetic cord provide exceptional reinforcement and durability under demanding conditions. Integrated copper wire guarantees electrical continuity, enhancing operational safety in sensitive environments. The outer layer, crafted from robust CR chloroprene rubber, delivers outstanding resistance to flames, abrasion, ozone, seawater, and harsh weather, making it an ideal solution for offshore platforms exposed to extreme elements. Designed specifically for offshore operations, this hose has become a trusted choice on North Sea drilling platforms, yet its versatility also makes it perfectly suited for land-based industrial applications. With a working pressure of 20 bar and an operating temperature range from -30°C to +85°C, it offers dependable performance and long service life even in the most challenging environments.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
SO-RIGSTAR-D-051	RIG STAR/D hose 51x65 mm	50	20
SO-RIGSTAR-D-076	RIG STAR/D hose 76x90 mm	75	20
SO-RIGSTAR-D-102	Hose RIG STAR/D 102x118 mm	100	20
SO-RIGSTAR-D-127	Hose RIG STAR/D 127x145 mm	125	20

This heavy-duty suction hose is engineered for the safe and efficient transfer of crude oil, petrochemical products, and drilling cuttings containing up to 50% aromatic compounds, while also proving highly effective for cement, barite, seawater, and brine applications. Its inner layer of smooth, antistatic black NBR rubber ensures reliable resistance to hydrocarbons, while multiple layers of high-strength synthetic cord provide exceptional reinforcement and durability under demanding conditions. Integrated copper wire guarantees electrical continuity, enhancing operational safety in sensitive environments. The outer layer, crafted from robust CR chloroprene rubber, delivers outstanding resistance to flames, abrasion, ozone, seawater, and harsh weather, making it an ideal solution for offshore platforms exposed to extreme elements. Designed specifically for offshore operations, this hose has become a trusted choice on North Sea drilling platforms, yet its versatility also makes it perfectly suited for land-based industrial applications. With a working pressure of 20 bar and an operating temperature range from -30°C to +85°C, it offers dependable performance and long service life even in the most challenging environments.

Additional information

Material	NBR – nitrile rubber
Maximum operating temperature [°C]	85
Minimum operating temperature [°C]	-30
Vacuum resistance	no
Standard length [m]	60
Reinforcement	synthetic braid
