Is the Stainless Steel BSP Thread Ball Valve 2006SC-X suitable for steam and chemical service within its -20°C to +200°C temperature range?

Yes. The Stainless Steel BSP Thread Ball Valve 2006SC-X is suitable for steam and many chemical services within its stated temperature range of -20°C to +200°C. Key reasons: - Materials: CF8M stainless steel body and ball provide excellent corrosion resistance for a wide range of media, including steam and many chemicals. - Sealing: PTFE or RTFE ball seals and PTFE stem sealing offer outstanding chemical resistance and tightness at elevated temperatures up to 200°C (check chemical compatibility with PTFE/RTFE for specific media). - Application note: The description explicitly lists steam and chemicals among suitable media, but compatibility must be verified for aggressive chemicals or extremes of pressure, concentration, or cyclic service where PTFE/RTFE limits or process conditions could be exceeded. Recommendation: Confirm the specific chemical’s compatibility with CF8M and PTFE/RTFE at operating temperature and pressure, and verify size/lock options if lever lock is required.

Can the Stainless Steel BSP Thread Ball Valve 2006SC-X be fitted with a lever lock for safety in high-vibration industrial environments?

Yes — Stainless Steel BSP Thread Ball Valve 2006SC-X can be fitted with a lever lock for safety in high‑vibration industrial environments, but with conditions. Key points: - The valve is supplied with an AISI 304 steel lever; many sizes of the 2006SC family accept an add‑on lever lock to prevent accidental or vibration‑induced actuation. - Not all sizes are available with a factory or aftermarket lever lock—availability depends on the specific size and supplier configuration. Confirm the exact size (port/thread) you need. - For high‑vibration settings, request a locking lever or a tamper‑proof lockable handle option at order time, or fit a compatible third‑party lever lock designed for stainless steel BSP threaded ball valves. - Verify compatibility with the valve’s materials (CF8M body, AISI 304 lever) and operating conditions (temperature −20°C to +200°C, media compatibility with PTFE/RTFE seals) to ensure the lock material and fasteners will perform reliably. Recommendation: Contact your supplier with the exact model/size and operating conditions to confirm lock availability or to source a certified lever‑locking accessory suitable for vibration‑prone environments.

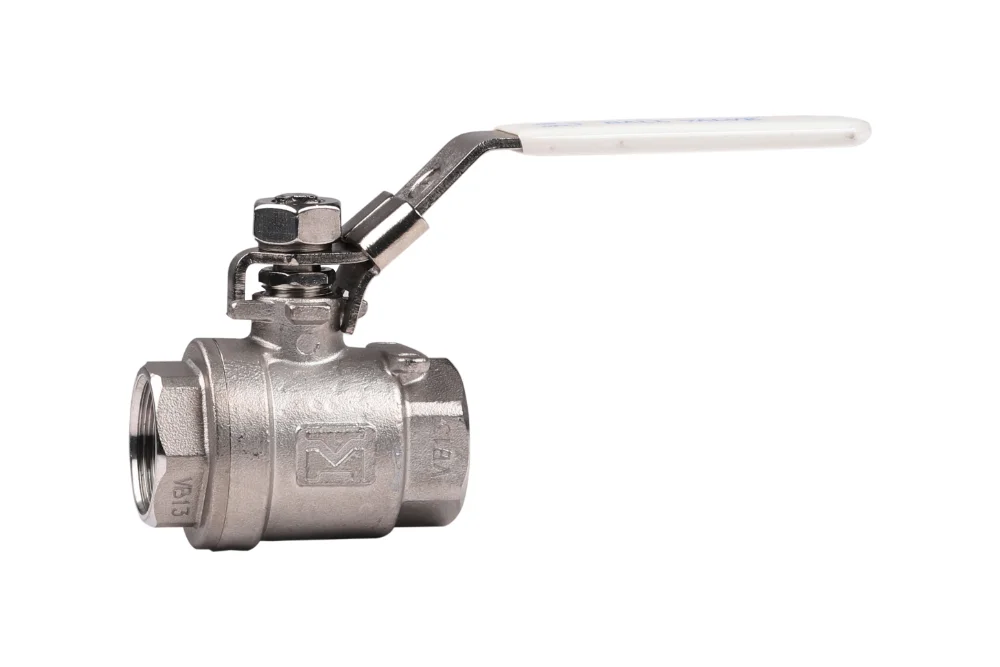

Ball valve stainless with a female BSP thread, type 2006SC-X

All products, Ball valves/

Additional information

Material	SS – stainless steel

A universal two-piece ball valve with full bore type 2006SC, intended for installation industrial. lock lever occurs not we all sizes. It can be used for air, gases, water, steam water, chemicals, products petrochemical, etc., taking into account resistance chemical material valve and seal. Material body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. Connection: BSP female. Operating temperature: od -20°C up to +200°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HT-2006SC-08X	Valve ball type 2006 SC-X 1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-100X	Valve ball type 2006 SC-X 4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-10X	Valve ball type 2006 SC-X 3/8" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-15X	Valve ball type 2006 SC-X 1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-20X	Valve ball type 2006 SC-X 3/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-25X	Valve ball type 2006 SC-X 1" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-32X	Valve ball type 2006 SC-X 1.1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-40X	Valve ball type 2006 SC-X 1.1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-50X	Valve ball type 2006 SC-X 2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-65X	Valve ball type 2006 SC-X 2.1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-80X	Valve ball type 2006 SC-X 3" BSP female, AISI 316	-	63	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A universal two-piece ball valve with full bore type 2006SC, intended for installation industrial. lock lever occurs not we all sizes. It can be used for air, gases, water, steam water, chemicals, products petrochemical, etc., taking into account resistance chemical material valve and seal. Material body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. Connection: BSP female. Operating temperature: od -20°C up to +200°C.
