What pressure range is recommended for the Brass Spray Nozzle, Series 269 to achieve optimal 40° cone spray performance?

The recommended pressure range for the Brass Spray Nozzle, Series 269 to achieve optimal 40° cone spray performance is 1–6 bar (maximum working pressure 10 bar). For best atomization and consistent coverage operate within 1–6 bar; at 6 bar with the valve fully open the nozzle delivers the specified flow rate.

Can the Brass Spray Nozzle, Series 269 handle temperatures outside the +5°C to +50°C operating range without performance loss?

Brass Spray Nozzle, Series 269 is specified to operate safely and deliver optimal performance within the +5°C to +50°C range. Use outside this range is not covered by the provided specification and may risk degraded performance, altered spray characteristics (atomization, cone angle, flow rate) or reduced component life due to thermal effects on materials and seals. If you require operation below +5°C or above +50°C, consult the manufacturer for tested data, alternative materials/seals, or suggested modifications (heating, insulation, or cold-weather fluids) to ensure reliable performance.

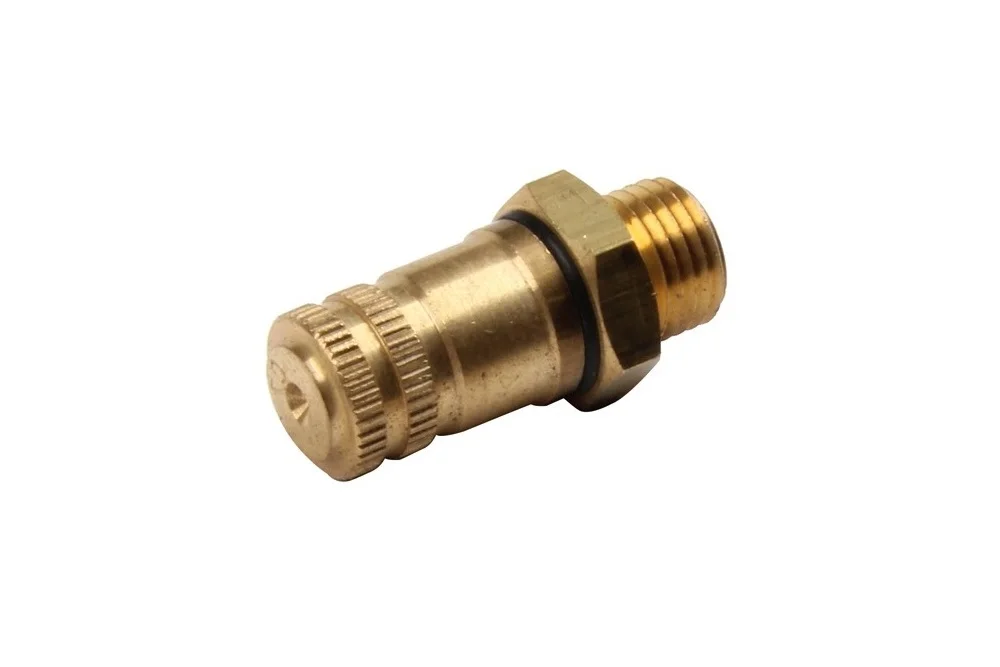

Brass Spray Nozzle, Series 269

All products, Special air guns/

Additional information

The Ø0.7 mm nozzle with a precision-engineered swirling insert is designed for efficient spraying of low-viscosity liquids, ensuring a consistent and finely atomized cone spray pattern of approximately 40°. Manufactured from durable brass, it guarantees long-lasting performance even under intensive use. The nozzle delivers optimal results at a recommended pressure range of 1–6 bar, with a maximum working pressure of 10 bar, offering flexibility for various applications. At 6 bar and with the valve fully open, the specified flow rate ensures reliable and uniform coverage. Operating safely within a temperature range of +5°C to +50°C, this nozzle is ideal for industries requiring accuracy, durability, and efficiency in liquid distribution. Its robust construction and precise spray characteristics make it a dependable choice for professional spraying systems, where consistent performance and high-quality results are essential.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
EW-269K46	0.7 mm spray nozzle, brass	-	10

The Ø0.7 mm nozzle with a precision-engineered swirling insert is designed for efficient spraying of low-viscosity liquids, ensuring a consistent and finely atomized cone spray pattern of approximately 40°. Manufactured from durable brass, it guarantees long-lasting performance even under intensive use. The nozzle delivers optimal results at a recommended pressure range of 1–6 bar, with a maximum working pressure of 10 bar, offering flexibility for various applications. At 6 bar and with the valve fully open, the specified flow rate ensures reliable and uniform coverage. Operating safely within a temperature range of +5°C to +50°C, this nozzle is ideal for industries requiring accuracy, durability, and efficiency in liquid distribution. Its robust construction and precise spray characteristics make it a dependable choice for professional spraying systems, where consistent performance and high-quality results are essential.
