Is the 30 mm Coil Compatible with PIV.B Valves rated IP65 for protection against dust and water jets?

Yes. The 30 mm Coil Compatible with PIV.B Valves is rated IP65 per EN60529, so it is fully protected against dust ingress and against low-pressure water jets from any direction, making it suitable for demanding industrial environments requiring that level of protection.

Does the 30 mm Coil Compatible with PIV.B Valves support continuous operation at insulation class F180 without performance degradation?

Yes. The 30 mm Coil Compatible with PIV.B Valves, built with insulation class F180, is specified for excellent thermal resistance and long-lasting durability, making it suitable for continuous operation without performance degradation. Its F180 rating indicates the coil materials can withstand elevated temperatures typical of sustained use. Combined with a voltage tolerance of -10% to +15% for stable electrical performance and IP65 protection against dust and water jets, this coil is engineered to maintain reliable functionality and minimize risk of thermal or environmental-related failure during continuous duty.

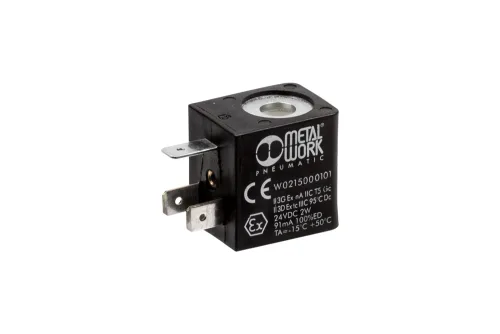

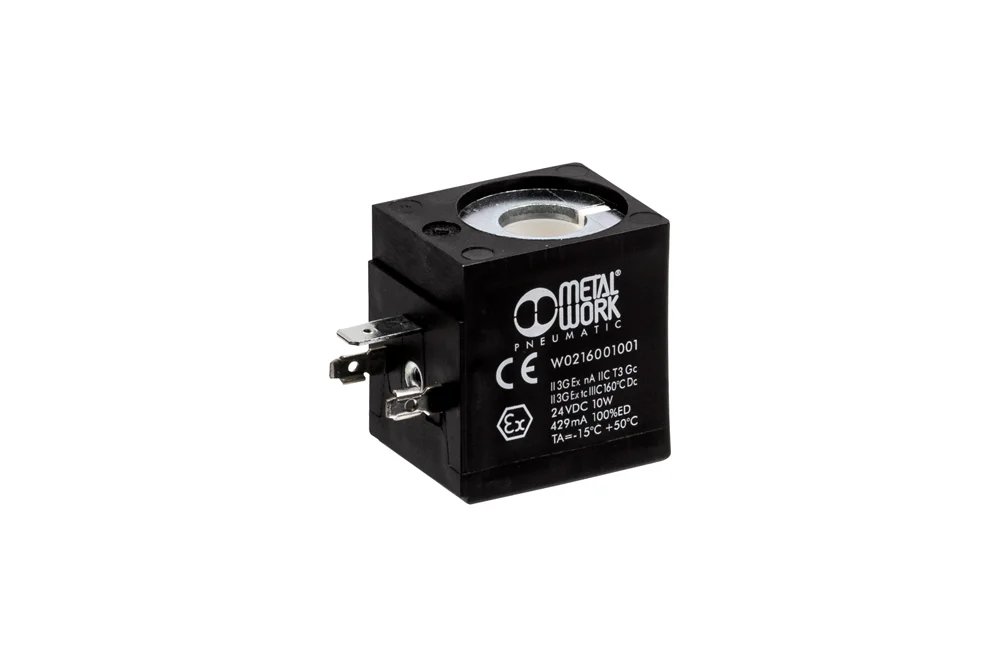

A coil 30 mm for valves PIV.B

All products, Equipment for pneumatic valves/

Additional information

A coil 30 mm for valves PIV.B. Insulation class: F180. Voltage tolerance: -10% for +15%. Protection degree: IP65 EN60529 with a connector.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-W0216001001	A coil 30 mm D13 10W 24V DC (valves PIV.B)	-	-	In stock	Enquiry
MW-W0216001011	A coil 30 mm D13 13VA 24V AC 50/60 Hz (valves PIV.B)	-	-	In stock	Enquiry
MW-W0216001021	A coil 30 mm D13 13VA 110V AC 50/60 Hz (valves PIV.B)	-	-	In stock	Enquiry
MW-W0216001031	A coil 30 mm D13 13VA 220V AC 50/60 Hz (valves PIV.B)	-	-	In stock	Enquiry
