Is the 45° Heavy Series Carbon Steel DKOS End Fitting, Type NMW322 compatible with hoses 4SP, 4SH, R13, and R15 when used with the TI-N crimping sleeve?

Yes. The 45° Heavy Series Carbon Steel DKOS End Fitting, Type NMW322 is compatible with hoses 4SP, 4SH, R13, and R15 when used with the TI-N crimping sleeve. It is a NON-SKIVE design with internal metric thread and 24° cone sealing with O-ring, engineered to crimp securely without stripping the rubber cover. Made from high-quality carbon steel with a galvanized coating, it provides corrosion resistance, mechanical strength, reliable leak-free sealing and durable performance in high-pressure hydraulic applications.

Can the 45° Heavy Series Carbon Steel DKOS End Fitting, Type NMW322 be crimped to high-pressure hoses without removing the hose rubber cover when using the TI-N sleeve?

Yes. The 45° Heavy Series Carbon Steel DKOS End Fitting, Type NMW322 can be crimped to high-pressure hoses without removing the hose rubber cover when used with the TI-N sleeve. It is a 45° NON SKIVE fitting with internal metric thread and 24° cone sealing with O‑ring, specifically engineered for secure crimping on hoses type 4SP, 4SH, R13, and R15 in combination with the TI-N crimping sleeve. This design permits crimping over the intact rubber cover, simplifying installation, saving assembly time, and maintaining hose integrity. Made of carbon steel with a galvanized protective coating, the fitting provides corrosion resistance and mechanical durability, while its optimized sealing system ensures leak-free, long-lasting performance in demanding hydraulic applications.

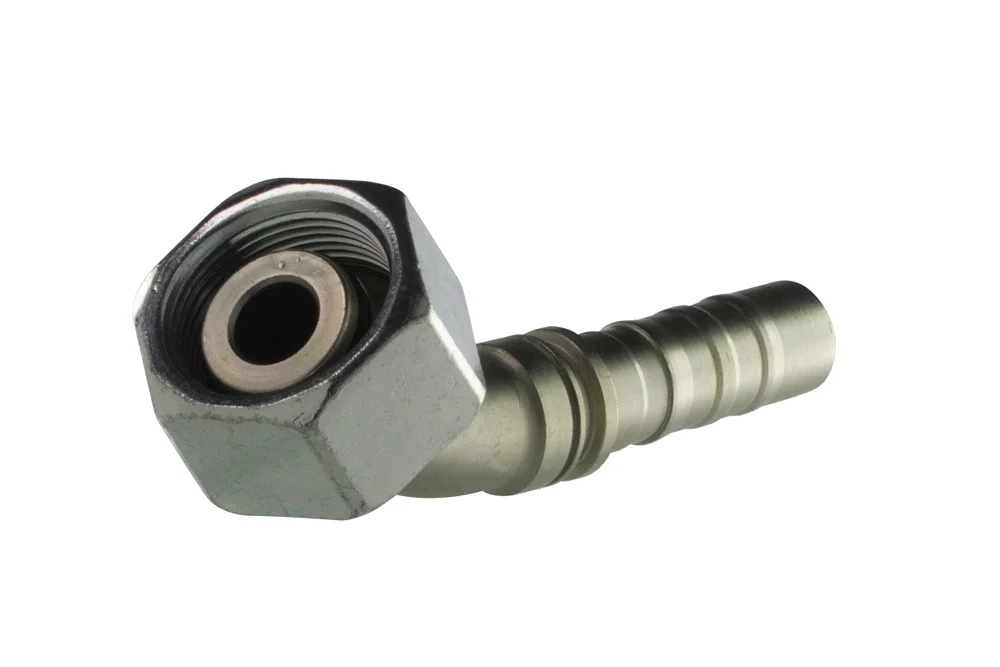

45° Heavy Series Carbon Steel DKOS End Fitting, Type NMW322

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	3

The 45° NON SKIVE fitting with internal metric thread and 24° cone sealing with O-ring (DKOS 45, heavy series) is designed for secure and reliable crimping in high-pressure hose applications. Engineered for use with hoses type 4SP, 4SH, R13, and R15 in combination with the TI-N crimping sleeve, it ensures a precise and durable connection without the need to strip the rubber layer of the hose, significantly simplifying installation and reducing assembly time. Manufactured from high-quality carbon steel with a protective galvanized coating, the fitting offers excellent resistance to corrosion and mechanical stress, guaranteeing long-lasting performance even in demanding industrial environments. Its robust construction and optimized sealing system provide maximum safety, leak-free operation, and extended service life, making it an ideal solution for hydraulic systems where reliability and efficiency are critical.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NMW322-30-12	End 45° NON SKIVE GWM30x2, hose 3/4"	20	420	In stock	Enquiry
TI-NMW322-36-12	End 45° NON SKIVE GW M36x2, hose 3/4"	20	420	In stock	Enquiry
TI-NMW322-36-16	End. 45° NON SKIVE GWM36x2, hose 1"	25	380	In stock	Enquiry
TI-NMW322-42-16	End 45° NON SKIVE GW M42x2, hose 1"	25	380	In stock	Enquiry
TI-NMW322-42-20	End 45° NON SKIVE GWM42x2, hose 1.1/4"	32	325	In stock	Enquiry
TI-NMW322-52-20	End fitting 45° NON SKIVE GWM52x2, hose 1.1/4"	32	325	In stock	Enquiry
TI-NMW322-52-24	End 45° NON SKIVE GWM52x2, hose 1.1/2"	38	290	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 45° NON SKIVE fitting with internal metric thread and 24° cone sealing with O-ring (DKOS 45, heavy series) is designed for secure and reliable crimping in high-pressure hose applications. Engineered for use with hoses type 4SP, 4SH, R13, and R15 in combination with the TI-N crimping sleeve, it ensures a precise and durable connection without the need to strip the rubber layer of the hose, significantly simplifying installation and reducing assembly time. Manufactured from high-quality carbon steel with a protective galvanized coating, the fitting offers excellent resistance to corrosion and mechanical stress, guaranteeing long-lasting performance even in demanding industrial environments. Its robust construction and optimized sealing system provide maximum safety, leak-free operation, and extended service life, making it an ideal solution for hydraulic systems where reliability and efficiency are critical.
