How do I troubleshoot common operational issues with the 70 Series 5/2 Pneumatic Diverter Valve, Lever Operated with Assisted Roller?

To troubleshoot common operational issues with the 70 Series 5/2 Pneumatic Diverter Valve, Lever Operated with Assisted Roller, follow these steps: 1. No actuation or slow response - Check supply pressure (should be up to 10 bar); ensure adequate and stable pressure. - Inspect 1/8" connections and tubing for leaks, kinks or blockages. - Verify actuator ports and downstream lines are not obstructed. - Confirm lever moves freely; clean and lubricate pivot and roller if sticky. 2. Air leakage - Examine NBR seals for wear, cuts or hardening; replace if damaged. - Tighten fittings on aluminum body and connections; ensure proper thread sealing. - Inspect nickel-plated slider surface for scratches or debris preventing tight sealing; clean or replace slider. 3. Inconsistent switching or sticking between positions - Check for contamination in valve body or slider; flush with clean, dry compressed air and remove particulates. - Ensure lightweight plastic end cover is correctly installed and not cracked or warped. - Verify mechanical linkage and assisted roller alignment; adjust or realign to ensure full travel. 4. Excessive wear or premature failure - Confirm operating temperature stays within -10°C to +60°C to prevent seal degradation. - Avoid abrasive or contaminated air; use filters and dryers as needed. - Regularly inspect aluminum body and nickel-plated slider for wear; replace worn components. 5. Installation and orientation issues - Although mountable in any position, ensure lever has sufficient clearance for full movement. - Use correct tubing size for 1/8" ports to prevent flow restriction. 6. Intermittent faults - Check for vibration or external mechanical interference affecting lever/roller. - Verify upstream pressure regulators and valves for stability. If basic checks fail, replace worn seals or slider, or contact supplier for repair/replacement.

70 Series 5/2 Pneumatic Diverter Valve, Lever Operated with Assisted Roller

Q: What maintenance is required for the 70 Series 5/2 Pneumatic Diverter Valve, Lever Operated with Assisted Roller to ensure long-term reliability?

What maintenance is required for the 70 Series 5/2 Pneumatic Diverter Valve, Lever Operated with Assisted Roller to ensure long-term reliability? - Regular visual inspection: check for external damage to the aluminum body, nickel-plated slider, plastic end cover, and lever/roller assembly. Look for corrosion, cracks or loose fasteners. - Seal and leak check: periodically inspect NBR seals for wear, hardening or deformation. Perform leak tests at operating pressure (up to 10 bar) and replace seals if leaks or pressure loss are detected. - Lubrication: apply suitable pneumatic-compatible lubricant sparingly to sliding surfaces of the nickel-plated aluminum slider and roller pivot points to reduce wear and ensure smooth actuation. Avoid over-lubrication that can attract contaminants. - Cleanliness: keep valve and surrounding area free of dust, debris and moisture. Clean external surfaces with a soft cloth; avoid harsh solvents that may damage NBR seals or plastics. - Functional testing: cycle the valve regularly through its two switching positions to verify smooth operation and proper diverter function. Confirm correct response at expected temperatures (-10°C to +60°C). - Fastener and mounting check: ensure connections (1/8" ports and mechanical mounts) remain tight and properly aligned to prevent stress on the valve body and actuator linkage. - Environmental protection: if used in corrosive or particularly dirty environments, increase inspection frequency, consider protective covers, and use filtered, dry compressed air to reduce contamination. - Replacement schedule: keep spare NBR seals and, if available, spare slider or lever components on hand; replace worn parts promptly to avoid secondary damage. Following these steps will help maintain the 70 Series 5/2 Pneumatic Diverter Valve, Lever Operated with Assisted Roller in reliable service life.

All products, Pneumatic valves/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-10

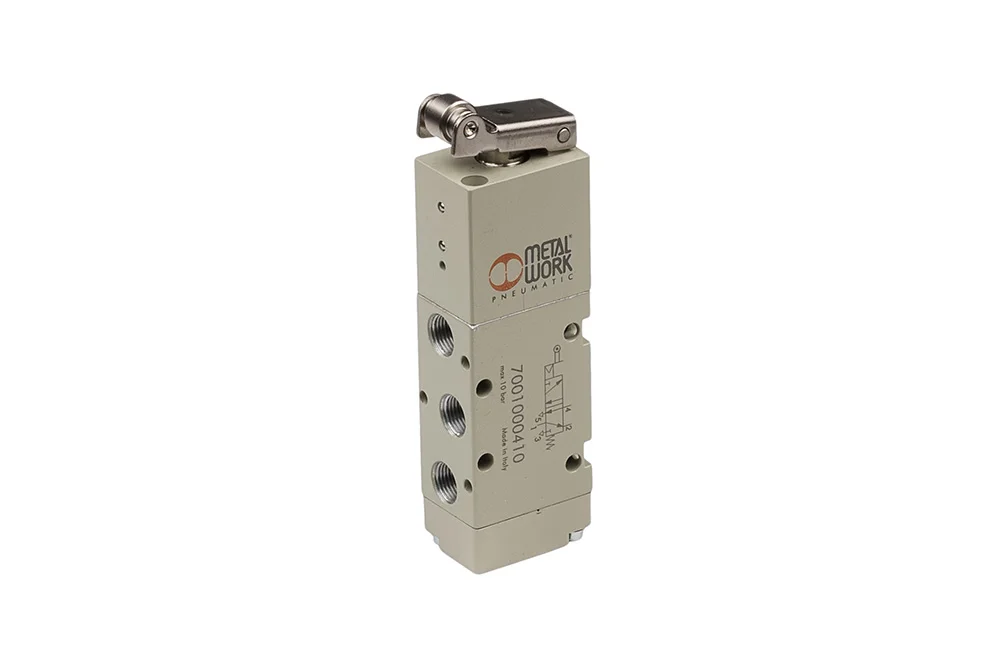

The universal dividing valve with mechanical control and roller-assisted lever is a compact and highly reliable solution for precise actuator operation. Designed in a 5/2 configuration, it offers five ports and two switching positions, ensuring smooth and efficient control in a wide range of pneumatic applications. Its robust aluminum body combined with a nickel-plated aluminum slider guarantees durability and resistance to wear, while NBR sealing ensures tightness and long-lasting performance. The lightweight plastic end cover complements the construction, making the valve easy to handle and install in any position without compromising functionality. With a working pressure capacity of up to 10 bar and an operating temperature range from -10°C to +60°C, this valve delivers consistent performance even under demanding conditions. Compact in size with a 1/8″ connection, it is an ideal choice for systems requiring reliability, flexibility, and efficiency, making it a versatile component for modern industrial automation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-7001000410	Valve series 70 MEV 25 RSS OO	-	10	In stock	0 €		Enquiry
