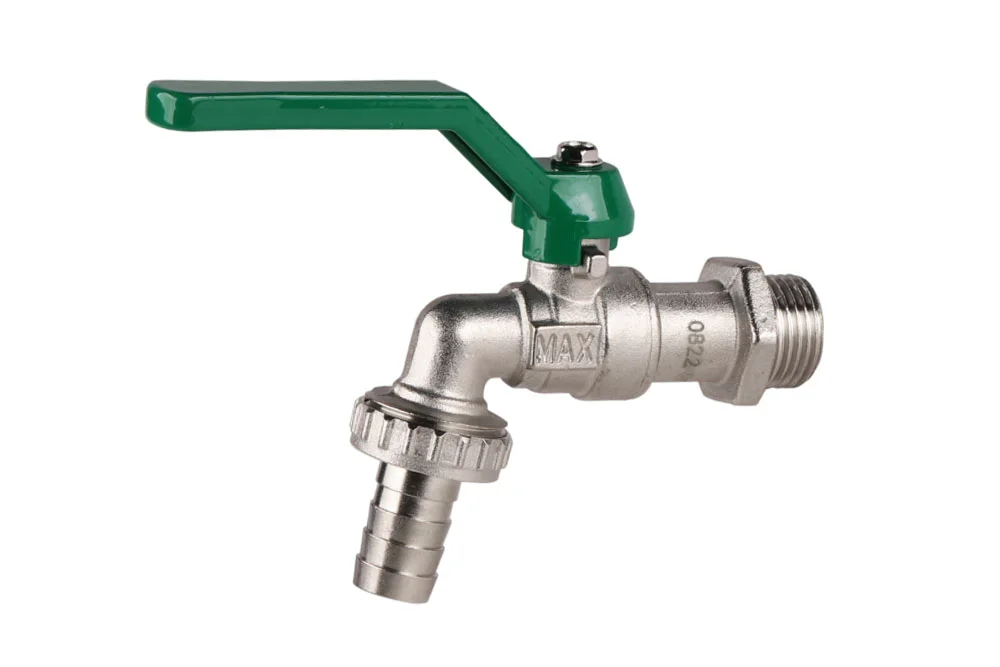

A universal, brass ball valve draw-off (tap), type 5600

Additional information

Material

B – brass (bronze)

A universal ball valve shut-off draw-off (tap) production European, made with casting, with a lever straight aluminum, with spigot under hose and an aerator, intended for installation industrial and water-supply. It can be used for water, chemicals, products petrochemical, etc., free od contaminants solid, compliant with resistance chemical materials valve. has protection stem against blow-out. meets requirements the directive pressure PED 2014/68/UE, in the scope sound practice engineering (SEP), in accordance with art. 4 ust. 3 (without markings CE). compliant with the directive material RoHS 2011/65/UE and the regulation REACH 1907/2006. pressure working dependent is od temperatures use. the given minimum temperature use refers to valve emptied with liquids freezing. Note: W case use on outside, necessary is emptying valve with water at negative temperature ambient! Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. Material aerator: polyamide (PA). sealing the ball: PTFE. sealing stem: 2 x O-ring NBR. Connection: thread BSP (ISO 228-1). Operating temperature: od -20°C up to +110°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RV-5600-10Valve ball draw-off type 5600, 3/8" BSP male, brass, aluminum lever-16In stock0 €
Enquiry
RV-5600-13Valve ball draw-off type 5600, 1/2" BSP male, brass, aluminum lever-16In stock0 €
Enquiry
RV-5600-19Valve ball draw-off type 5600, 3/4" BSP male, brass, aluminum lever-16In stock0 €
Enquiry
RV-5600-25Valve ball draw-off type 5600, 1" BSP male, brass, aluminum lever-16In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

A universal ball valve shut-off draw-off (tap) production European, made with casting, with a lever straight aluminum, with spigot under hose and an aerator, intended for installation industrial and water-supply. It can be used for water, chemicals, products petrochemical, etc., free od contaminants solid, compliant with resistance chemical materials valve. has protection stem against blow-out. meets requirements the directive pressure PED 2014/68/UE, in the scope sound practice engineering (SEP), in accordance with art. 4 ust. 3 (without markings CE). compliant with the directive material RoHS 2011/65/UE and the regulation REACH 1907/2006. pressure working dependent is od temperatures use. the given minimum temperature use refers to valve emptied with liquids freezing. Note: W case use on outside, necessary is emptying valve with water at negative temperature ambient! Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. Material aerator: polyamide (PA). sealing the ball: PTFE. sealing stem: 2 x O-ring NBR. Connection: thread BSP (ISO 228-1). Operating temperature: od -20°C up to +110°C.

Additional information

Material

B – brass (bronze)

Do you need a larger quantity of products or a bespoke quote?
