How does the FLEX-GEAR 843 Stainless Steel Compensation Spring Band maintain a leak-free seal during extreme temperature changes?

The FLEX-GEAR 843 Stainless Steel Compensation Spring Band maintains a leak-free seal during extreme temperature changes by using an integrated eight-disc spring mechanism under the screw head that automatically compensates for dimensional shifts (hose shrinkage or expansion). As temperatures fluctuate, the springs keep constant circumferential pressure on the hose, preserving tightness around the entire clamp and preventing gaps that cause leaks. An internal insert protects the hose surface from damage, ensuring a uniform seal, while the 300 stainless steel band and galvanized carbon steel screw/lock provide corrosion-resistant durability. Proper installation — confirmed when the screw end protrudes beyond the lock housing and the disc springs are flattened — ensures the clamp achieves its specified torque and reliable, maintenance-free sealing performance in demanding thermal conditions.

What maintenance, if any, does the FLEX-GEAR 843 Stainless Steel Compensation Spring Band require to ensure long-term corrosion resistance and performance?

FLEX-GEAR 843 Stainless Steel Compensation Spring Band requires minimal maintenance to ensure long-term corrosion resistance and performance. Key recommendations: - Inspection: Periodically check for visible corrosion, deformation or loosening—especially after exposure to aggressive environments or extreme temperature cycles. - Tightness verification: Confirm correct installation by ensuring the screw end protrudes beyond the lock housing and the disc springs are flattened; re-torque if necessary within specified range (recommended 5.6 Nm, max 9.6 Nm). - Cleaning: Remove dirt, salt deposits or chemical residues with fresh water and a mild detergent; rinse and dry to prevent crevice corrosion. Avoid harsh abrasives or strong acids/bases. - Replacement of damaged clamps: If the galvanized screw/lock shows significant corrosion or the band (Stainless Steel 300) or springs are visibly compromised, replace the clamp to maintain sealing integrity. - Environment-specific measures: In highly corrosive atmospheres (marine, chemical plants), increase inspection frequency and consider additional corrosion protection or more frequent replacement intervals. Following these simple steps preserves the inherent corrosion resistance of the stainless steel band and the functional reliability of the integrated spring system, while keeping maintenance effort minimal.

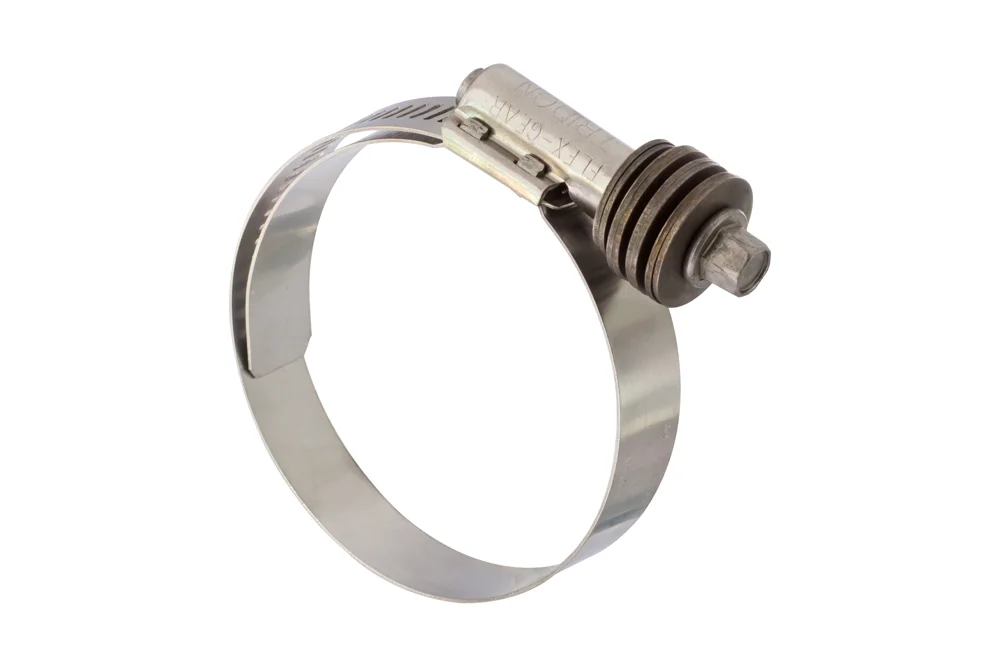

FLEX-GEAR 843 Stainless Steel Compensation Spring Band

All products, Clamps for mounting ends/

Additional information

Material	SS – stainless steel

The band clamp with worm drive and integrated spring system is designed to deliver reliable, long-lasting sealing performance even under demanding conditions. Its innovative spring mechanism, composed of eight disc springs positioned beneath the screw head, automatically compensates for dimensional changes caused by hose shrinkage or extreme temperature fluctuations. This ensures consistent pressure and tightness around the entire circumference of the hose, effectively preventing leaks and maintaining system integrity. The internal insert provides additional protection by safeguarding the hose surface from potential damage, while the stainless steel 300 band and galvanized carbon steel screw and lock guarantee durability and resistance to corrosion. With a 14.3 mm (9/16″) band width and an installation torque of 5.6 Nm (maximum 9.6 Nm), the clamp is engineered for secure and precise assembly. The correct installation is easily verified by the visible protrusion of the screw end beyond the lock housing and the flattened disc springs. This advanced clamp is particularly recommended for applications exposed to significant temperature variations, offering a dependable, maintenance-free solution that enhances both safety and efficiency in fluid systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-843010	FLEX-GEAR band 14÷27 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-843012	FLEX-GEAR band 16÷32 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-843016	FLEX-GEAR strap 21÷38 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-843020	FLEX-GEAR strap 20÷44 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-843024	FLEX-GEAR band 27÷51 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-843028	FLEX-GEAR strap 33÷57 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-843032	FLEX-GEAR clamp 40÷63 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-843036	FLEX-GEAR strap 46÷70 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-843040	FLEX-GEAR band 52÷76 mm, SS, galvanized steel screw.	-	-	In stock	Enquiry
AB-843044	FLEX-GEAR strap 59÷82 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
AB-843048	FLEX-GEAR strap 65÷89 mm, SS, steel screw galvanized.	-	-	In stock	Enquiry
