Is the 90° Connector for PP/PVDF Plastic Hose, Series 1C EM compatible with PTFE, PFA, FEP, PA, and PE smooth-walled unreinforced hoses?

Yes. The 90° Connector for PP/PVDF Plastic Hose, Series 1C EM is specifically engineered for smooth-walled, unreinforced hoses and tubes made from harder materials including PTFE, PFA, FEP, PA, and PE. It features a push-on integrated connecting sleeve, a PEEK locking ring with knurled nut for secure locking, and a PTFE sealing ring to ensure tight, durable connections under demanding conditions.

Can the 90° Connector for PP/PVDF Plastic Hose, Series 1C EM withstand continuous operation at elevated temperatures common in pharmaceutical and chemical processes?

Yes — the 90° Connector for PP/PVDF Plastic Hose, Series 1C EM is designed for continuous operation in the elevated-temperature environments typical of pharmaceutical and chemical processes, within the limits of its materials. Constructed from high-quality polypropylene or PVDF and using a PTFE sealing ring, it provides durable, tight connections under demanding conditions. The use of a PEEK locking ring adds thermal and chemical stability to the mechanical joint. It is specifically intended for smooth-walled, unreinforced hoses of higher-temperature polymers (PTFE, PFA, FEP, PA, PE), and is rated for working pressures up to 10 bar. Important caveats: continuous temperature limits depend on the specific base material chosen (PP vs. PVDF) and the hose material in use. PVDF, PEEK and PTFE tolerate substantially higher continuous temperatures than polypropylene. For exact operating-temperature ceilings, long-term stability, and compatibility with particular process media, consult the material temperature ratings and the connector/hose manufacturer’s specifications before final selection.

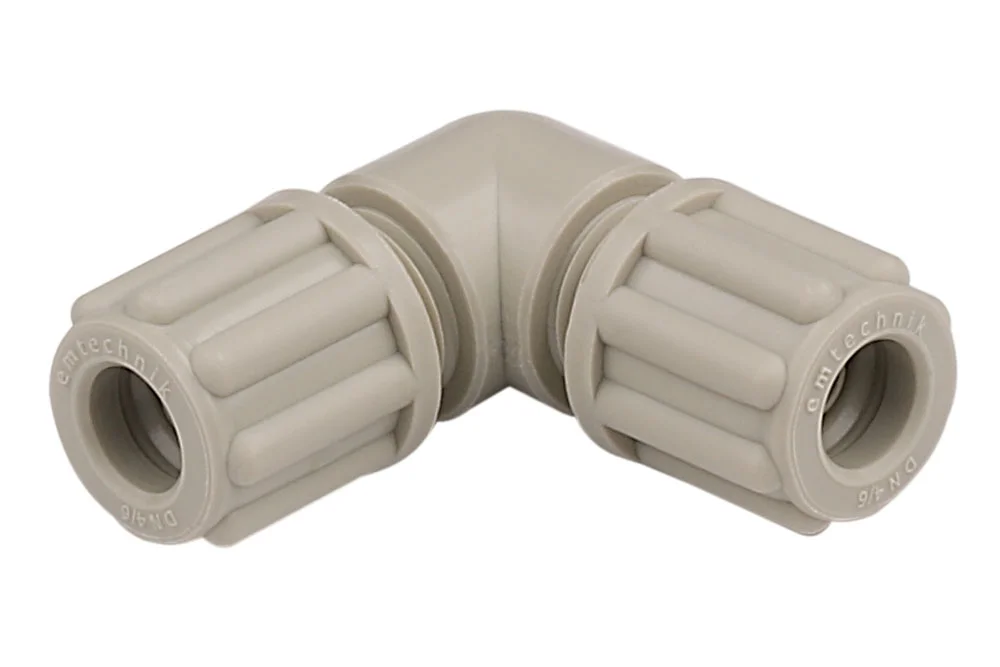

Connector 90° for hose with plastic PP, PVDF, series 1C type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Connector 90° for hoses plastic metric series 1C type EM, found wide use in laboratories, medicine, industry pharmaceutical, chemical and food. assembly takes place through pressing hose on integrated sleeve connecting. locking occurs using ring cutting, made with PEEK and a nut knurled. sealing ensures ring sealing made with PTFE. intended is for smooth unreinforced hoses and tubes with harder plastics e.g. with PTFE, PFA, FEP, PA, PE. available are other sizes and diameter ends and connector. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1C200T40PP	Connector 90° (1C series), hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1C200T40PV	Connector 90° (1C series), hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1C200T43PP	Connector 90° (1C series), hose 6x8 mm, polypropylene	6	10	In stock	Enquiry
EM-1C200T43PV	Connector 90° (1C series), hose 6x8 mm, PVDF	6	10	In stock	Enquiry
EM-1C200T45PP	Connector 90° (1C series), hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1C200T45PV	Connector 90° (1C series), hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1C200T48PP	Connector 90° (1C series), hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1C200T48PV	Connector 90° (1C series), hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1C200T51PP	Connector 90° (1C series), hose 12x14 mm, polypropylene	12	10	In stock	Enquiry
EM-1C200T51PV	Connector 90° (1C series), hose 12x14 mm, PVDF	12	10	In stock	Enquiry
EM-1C200T57PV	Connector 90° (1C series), hose 18x20 mm, PVDF	18	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Connector 90° for hoses plastic metric series 1C type EM, found wide use in laboratories, medicine, industry pharmaceutical, chemical and food. assembly takes place through pressing hose on integrated sleeve connecting. locking occurs using ring cutting, made with PEEK and a nut knurled. sealing ensures ring sealing made with PTFE. intended is for smooth unreinforced hoses and tubes with harder plastics e.g. with PTFE, PFA, FEP, PA, PE. available are other sizes and diameter ends and connector. Material: polypropylene, PVDF. Working pressure: 10 bar.
