Is the EVGEO-BE Adjustable Screw Connector, Carbon Steel compatible with both metric internal and BSP external threads while maintaining a leak-free seal?

Yes. The EVGEO-BE Adjustable Screw Connector, Carbon Steel is compatible with an internal metric thread and an external BSP thread and is designed to maintain a leak-free seal. It features a 24° DIN 2353 socket plus an integrated O-ring and is sealed per DIN 3852 type E with a rectangular-section elastomer gasket, providing reliable sealing under hydraulic conditions. Manufactured from carbon steel with galvanization and rated with a 4:1 safety factor, it is built for durable, leak-free performance in demanding applications.

Can the EVGEO-BE Adjustable Screw Connector, Carbon Steel be used in high-vibration environments without compromising the O-ring seal?

Yes — the EVGEO-BE Adjustable Screw Connector, Carbon Steel can be used in high-vibration environments without compromising the O-ring seal, provided installation and application limits are respected. Reasons: - Integrated O-ring with DIN 3852 type E elastomer gasket: the rectangular-cross-section elastomer seal is designed for reliable static and slight dynamic sealing, maintaining integrity under pressure fluctuations and movement. - Robust mechanical design: the 24° DIN 2353 socket combined with internal metric and external BSP threads creates a tight metal-to-metal and elastomer-assisted joint that resists loosening from vibration better than simple threaded-only fittings. - Safety factor 4:1 and carbon steel construction: high strength and fatigue resistance reduce deformation and micro-movement that could otherwise damage the O-ring. Galvanization adds corrosion resistance that preserves sealing surfaces over time. - Series options (L and S): choosing the appropriate series for load and duty cycle (S for heavier-duty/high-stress applications) improves vibration resilience. Caveats and best practices: - Ensure correct torque and assembly procedure per DIN 2353 to avoid O-ring extrusion or shear. - Use the heavier S series for high-amplitude or high-frequency vibration where possible. - Verify elastomer compatibility with system fluid and temperature; extreme temperatures or incompatible fluids can harden or swell the O-ring, lowering vibration tolerance. - Consider supplemental anti-vibration measures (locking compounds, clamping, vibration dampers) in very severe environments. When installed and specified correctly, the EVGEO-BE Adjustable Screw Connector, Carbon Steel will maintain O-ring sealing performance in high-vibration conditions.

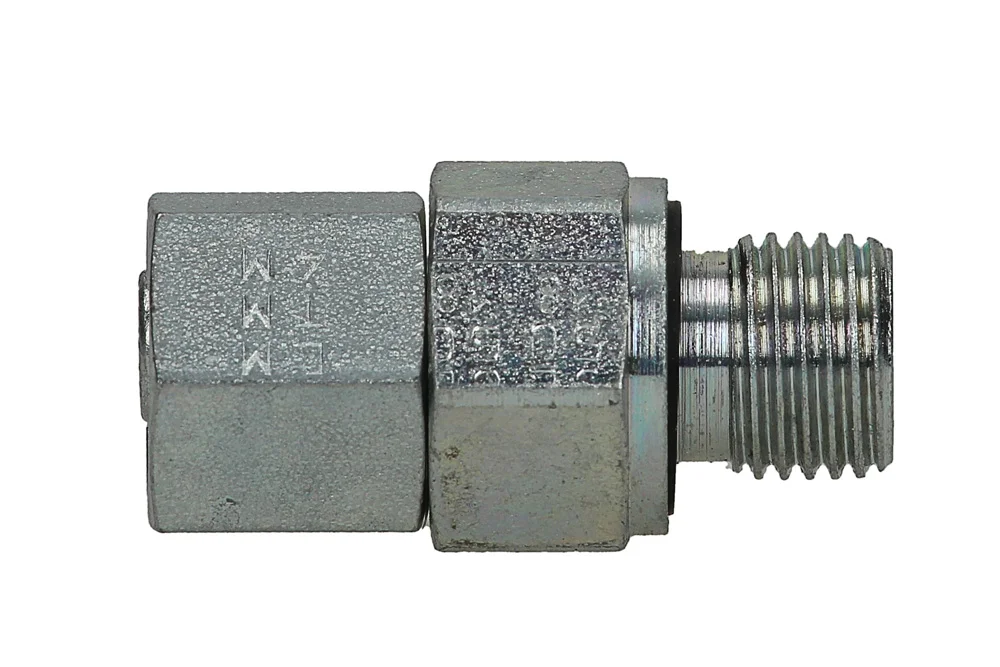

Fitting screw-in adjustable EVGEO-BE, steel carbon

Additional information

Material	CS – steel (cast iron)

Fitting DIN 2353 screw-in adjustable, type EVGEO-BE: socket 24° DIN 2353 with an O-ring with thread internal metric and with thread external BSP (sealing DIN 3852 type E – gasket elastomer o cross-section rectangular). Safety factor 4:1. occurs as: L (series light), S (series heavy). Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-EVGEO-06L-BE-02	Fitting DIN 2353 EVGEO 6L 1/8" BSP	-	315	In stock	Enquiry
HD-EVGEO-06S-BE-04	Fitting DIN 2353 EVGEO 6S 1/4" BSP	-	630	In stock	Enquiry
HD-EVGEO-08L-BE-04	Fitting DIN 2353 EVGEO 8L 1/4" BSP	-	315	In stock	Enquiry
HD-EVGEO-08S-BE-04	Fitting DIN 2353 EVGEO 8S 1/4" BSP	-	630	In stock	Enquiry
HD-EVGEO-10L-BE-04	Fitting DIN 2353 EVGEO 10L 1/4" BSP	-	315	In stock	Enquiry
HD-EVGEO-10S-BE-06	Fitting DIN 2353 EVGEO 10S 3/8" BSP	-	630	In stock	Enquiry
HD-EVGEO-12L-BE-04	Fitting DIN 2353 EVGEO 12L 1/4" BSP	-	315	In stock	Enquiry
HD-EVGEO-12L-BE-06	Fitting DIN 2353 EVGEO 12L 3/8" BSP	-	315	In stock	Enquiry
HD-EVGEO-12L-BE-08	Fitting DIN 2353 EVGEO 12L 1/2" BSP	-	315	In stock	Enquiry
HD-EVGEO-12S-BE-06	Fitting DIN 2353 EVGEO 12S 3/8" BSP	-	630	In stock	Enquiry
HD-EVGEO-14S-BE-08	Fitting DIN 2353 EVGEO 14S 1/2" BSP	-	630	In stock	Enquiry
HD-EVGEO-15L-BE-08	Fitting DIN 2353 EVGEO 15L 1/2" BSP	-	315	In stock	Enquiry
HD-EVGEO-16S-BE-08	Fitting DIN 2353 EVGEO 16S 1/2" BSP	-	400	In stock	Enquiry
HD-EVGEO-18L-BE-08	Fitting DIN 2353 EVGEO 18L 1/2" BSP	-	315	In stock	Enquiry
HD-EVGEO-20S-BE-12	Fitting DIN 2353 EVGEO 20S 3/4" BSP	-	400	In stock	Enquiry
HD-EVGEO-22L-BE-12	Fitting DIN 2353 EVGEO 22L 3/4" BSP	-	160	In stock	Enquiry
HD-EVGEO-25S-BE-12	Fitting DIN 2353 EVGEO 25S 3/4" BSP	-	400	In stock	Enquiry
HD-EVGEO-25S-BE-16	Fitting DIN 2353 EVGEO 25S 1" BSP	-	400	In stock	Enquiry
HD-EVGEO-28L-BE-16	Fitting DIN 2353 EVGEO 28L 1" BSP	-	160	In stock	Enquiry
HD-EVGEO-30S-BE-20	Fitting DIN 2353 EVGEO 30S 1.1/4" BSP	-	400	In stock	Enquiry
HD-EVGEO-35L-BE-20	Fitting DIN 2353 EVGEO 35L 1.1/4" BSP	-	160	In stock	Enquiry
HD-EVGEO-38S-BE-24	Fitting DIN 2353 EVGEO 38S 1.1/2" BSP	-	315	In stock	Enquiry
HD-EVGEO-42L-BE-24	Fitting DIN 2353 EVGEO 42L 1.1/2" BSP	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Fitting DIN 2353 screw-in adjustable, type EVGEO-BE: socket 24° DIN 2353 with an O-ring with thread internal metric and with thread external BSP (sealing DIN 3852 type E – gasket elastomer o cross-section rectangular). Safety factor 4:1. occurs as: L (series light), S (series heavy). Material: steel carbon, galvanized.
