Is the AGR Hydraulic End ZBZ110, Carbon Steel, Type Y compatible with standard crimping sleeves for hose type Z?

Yes. The AGR Hydraulic End ZBZ110, Carbon Steel, Type Y Format is compatible with standard crimping sleeves for hose type Z. The product description states it features a classic hydraulic tail designed for secure hose connection and is specifically "designed for professional crimping with a compatible crimping sleeve tailored to the specific hose type." Its external BSP thread with a 60° sealing cone (AGR) and robust carbon steel construction with zinc coating ensure reliable sealing and durability when crimped with the appropriate sleeve for hose type Z. Ensure you use the correct sleeve size and follow the hose and fitting manufacturer’s crimping specifications for proper assembly and safe, leak-free performance.

Can the AGR Hydraulic End ZBZ110, Carbon Steel, Type Y be used with BSP-threaded adapters or fittings without compromising the 60° sealing cone?

Yes — AGR Hydraulic End ZBZ110, Carbon Steel, Type Y is designed specifically with an external BSP thread incorporating a 60° sealing cone (AGR). Using BSP-threaded adapters or fittings that match the same BSP standard and are intended for a 60° cone seal will preserve the designed sealing geometry and maintain leak-free performance. To avoid compromising the cone seal, ensure the mating adapter/fitting: - Has the correct BSP thread type and size (matching pitch and diameter). - Is manufactured to the same 60° cone sealing specification (not a different cone angle or flat/seal type). - Is free of damage, burrs or debris on the cone face and threads. - Is tightened to the recommended torque and assembled with correct installation practice. Do not mate the ZBZ110 to non-BSP fittings, fittings with a different cone angle, or fittings relying on an alternative sealing method (e.g., O-ring face seal or taper without a 60° cone) — these will compromise the seal. When in doubt, use compatible BSP 60°-cone adapters from reputable manufacturers or consult technical drawings/specs to confirm correct fit.

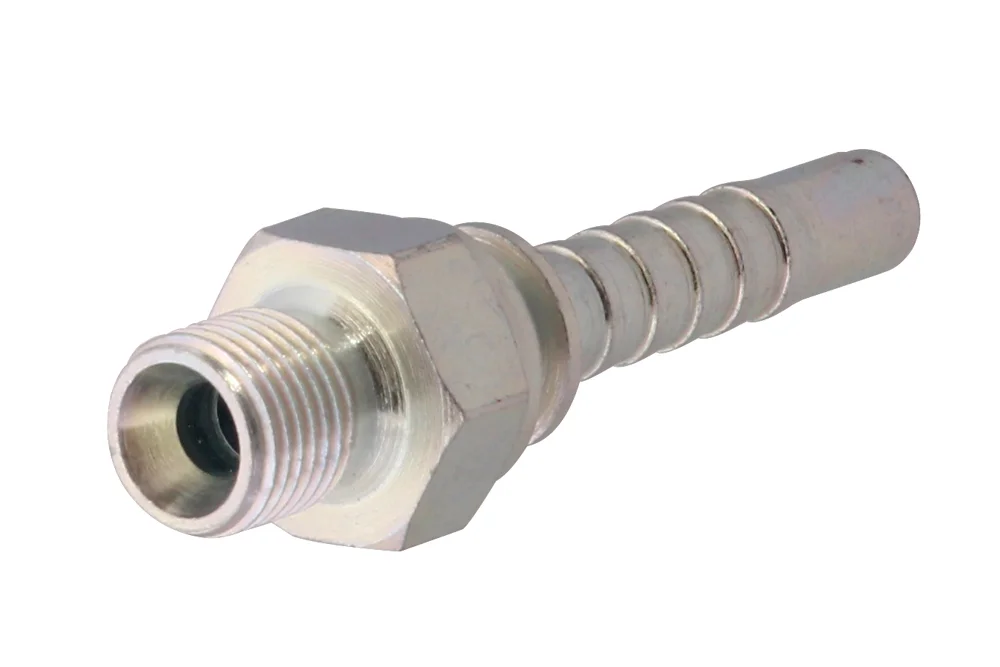

AGR Hydraulic End ZBZ110, Carbon Steel, Type Y

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	50

The standard hydraulic end type Z is equipped with a classic hydraulic tail for secure hose connection and features an external BSP thread with a 60° sealing cone (AGR), ensuring reliable and leak-free performance in demanding hydraulic and industrial applications. Designed for professional crimping with a compatible crimping sleeve tailored to the specific hose type, it guarantees durability, precision, and long-lasting efficiency. Manufactured from high-quality carbon steel and finished with a protective zinc coating, this fitting offers excellent resistance to wear and corrosion, extending service life even in challenging working environments. Its robust construction and precise engineering make it an ideal choice for industries seeking dependable solutions that combine strength, safety, and ease of installation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBZ110-02-04-Y	End. GZ 1/8" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBZ110-04-04-Y	End. GZ 1/4" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBZ110-04-06-Y	End. GZ 1/4" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBZ110-06-05-Y	End. GZ 3/8" BSP, hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBZ110-06-06-Y	End. GZ 3/8" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBZ110-08-04-Y	End. GZ 1/2" BSP, hose 1/4", cone 60°	6	-	In stock	Enquiry
TI-ZBZ110-08-05-Y	End. GZ.1/2" BSP, hose 5/16", cone 60°	8	-	In stock	Enquiry
TI-ZBZ110-08-06-Y	End. GZ 1/2" BSP, hose 3/8", cone 60°	10	-	In stock	Enquiry
TI-ZBZ110-08-08-Y	End. GZ 1/2" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBZ110-10-08-Y	End. GZ 5/8" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBZ110-10-10-Y	End. GZ 5/8" BSP, hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBZ110-12-08-Y	End. GZ 3/4" BSP, hose 1/2", cone 60°	12	-	In stock	Enquiry
TI-ZBZ110-12-10-Y	End. GZ 3/4" BSP, hose 5/8", cone 60°	16	-	In stock	Enquiry
TI-ZBZ110-12-12-Y	End. GZ 3/4" BSP, hose 3/4", cone 60°	20	-	In stock	Enquiry
TI-ZBZ110-20-16-Y	End. GZ 1.1/4" BSP, hose 1", cone 60°	25	-	In stock	Enquiry
TI-ZBZ110-24-20-Y	End. GZ 1.1/2" BSP, hose 1.1/4", cone 60°	32	-	In stock	Enquiry
