Is the AGR hydraulic end ZBZ110 stainless steel AISI 316L compatible with standard BSP-threaded hydraulic hoses and crimp sleeves?

Yes. The AGR hydraulic end ZBZ110, stainless steel AISI 316L is compatible with standard BSP-threaded hydraulic hoses and crimp sleeves. It features an external BSP thread and a 60° sealing cone (AGR) designed for leak-free BSP connections, and it is specifically intended to be crimped with a sleeve matched to the hose type. Manufactured from AISI 316L, it also offers excellent corrosion resistance for demanding environments. Ensure you use the correct sleeve and hose specification recommended by the hose manufacturer to guarantee proper crimp dimensions and safe operation under pressure.

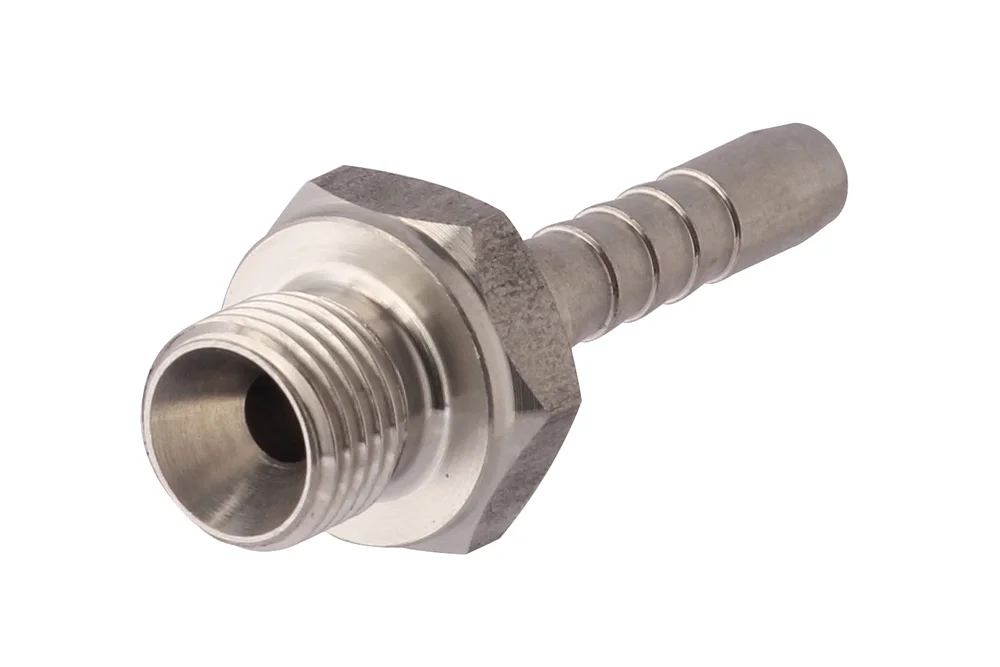

AGR hydraulic end ZBZ110, stainless steel AISI 316L

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	15, 30

The standard hydraulic end fitting type Z is engineered for reliable performance in demanding hydraulic and industrial applications. Featuring a classic hydraulic tail designed for secure hose connection, it is equipped with an external BSP thread and a 60° sealing cone (AGR) to ensure tight, leak-free joints even under high pressure. Manufactured from premium AISI 316L stainless steel, the fitting offers outstanding resistance to corrosion, making it ideal for use in harsh environments, including marine, chemical, and heavy-duty industrial settings. Designed for crimping with a compatible sleeve matched to the specific hose type, it guarantees durability, safety, and long service life. This versatile solution combines precision engineering with robust materials, providing a dependable connection that supports efficiency and minimizes downtime in hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBZ110-02-04-SS	End. GZ 1/8" BSP, hose 1/4", cone 60°, AISI 316L	6		In stock	Enquiry
TI-ZBZ110-04-02-SS	End. GZ 1/4" BSP, hose 1/8", cone 60°, AISI 316	3	450	In stock	Enquiry
TI-ZBZ110-04-03-SS	End. GZ 1/4" BSP, hose 3/16", cone 60°, AISI 316L	5	450	In stock	Enquiry
TI-ZBZ110-04-04-SS	End. GZ 1/4" BSP, hose 1/4", cone 60°, AISI 316L	6	450	In stock	Enquiry
TI-ZBZ110-04-06-SS	End. GZ 1/4" BSP, hose 3/8", cone 60°, AISI 316L	10	445	In stock	Enquiry
TI-ZBZ110-06-04-SS	End. GZ 3/8" BSP, hose 1/4", cone 60°, AISI 316L	6	445	In stock	Enquiry
TI-ZBZ110-06-05-SS	End. GZ 3/8" BSP, hose 5/16", cone 60°, AISI 316L	8	445	In stock	Enquiry
TI-ZBZ110-06-06-SS	End. GZ 3/8" BSP, hose 3/8", cone 60°, AISI 316L	10	445	In stock	Enquiry
TI-ZBZ110-08-06-SS	End. GZ 1/2" BSP, hose 3/8", cone 60°, AISI 316L	10	415	In stock	Enquiry
TI-ZBZ110-08-08-SS	End. GZ 1/2" BSP, hose 1/2", cone 60°, AISI 316L	12	415	In stock	Enquiry
TI-ZBZ110-10-10-SS	End. GZ 5/8" BSP, hose 5/8", cone 60°, AISI 316L	16	350	In stock	Enquiry
TI-ZBZ110-12-10-SS	End. GZ 3/4" BSP, hose 5/8", cone 60°, AISI 316L	16	350	In stock	Enquiry
TI-ZBZ110-12-12-SS	End. GZ 3/4" BSP, hose 3/4", cone 60°, AISI 316L	20	350	In stock	Enquiry
TI-ZBZ110-16-12-SS	End. GZ 1" BSP, hose 3/4", cone 60°, AISI 316L	20	280	In stock	Enquiry
TI-ZBZ110-16-16-SS	End. GZ 1" BSP, hose 1", cone 60°, AISI 316L	25	280	In stock	Enquiry
TI-ZBZ110-20-16-SS	End. GZ 1.1/4" BSP, hose 1", cone 60°, AISI 316L	25	210	In stock	Enquiry
TI-ZBZ110-20-20-SS	End. GZ 1.1/4" BSP, hose 1.1/4", cone 60°, AISI 316L	32	210	In stock	Enquiry
TI-ZBZ110-24-20-SS	End. GZ 1.1/2" BSP, hose 1.1/4", cone 60°, AISI 316L	32	185	In stock	Enquiry
TI-ZBZ110-24-24-SS	End. GZ 1.1/2" BSP, hose 1.1/2", cone 60°, AISI 316L	38	185	In stock	Enquiry
TI-ZBZ110-32-32-SS	End. GZ 2" BSP, hose 2", cone 60°, AISI 316L	50	175	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The standard hydraulic end fitting type Z is engineered for reliable performance in demanding hydraulic and industrial applications. Featuring a classic hydraulic tail designed for secure hose connection, it is equipped with an external BSP thread and a 60° sealing cone (AGR) to ensure tight, leak-free joints even under high pressure. Manufactured from premium AISI 316L stainless steel, the fitting offers outstanding resistance to corrosion, making it ideal for use in harsh environments, including marine, chemical, and heavy-duty industrial settings. Designed for crimping with a compatible sleeve matched to the specific hose type, it guarantees durability, safety, and long service life. This versatile solution combines precision engineering with robust materials, providing a dependable connection that supports efficiency and minimizes downtime in hydraulic systems.
