Can the AGR-K Hydraulic End ZBZ130, AISI 316L stainless steel be sealed with BSPT using Teflon tape or on a 60° cone for leak-free installation?

Yes — the AGR-K Hydraulic End ZBZ130, AISI 316L Stainless Steel can be sealed with BSPT using Teflon tape or by sealing on a 60° cone for a leak-free installation. The fitting features an external BSPT thread specifically designed to achieve a tight, durable seal when used with Teflon tape or liquid sealant. It also offers the AGR-K option for sealing on a 60° cone, providing an alternative metal-to-metal sealing method. For best results, use the correct crimp sleeve matched to your hose type and follow proper installation torque and assembly procedures to ensure a precise, leak-free connection.

Is the AGR-K Hydraulic End ZBZ130, AISI 316L Stainless Steel compatible with standard crimping sleeves for different hose types to ensure leak-free assembly?

Yes — the AGR-K Hydraulic End ZBZ130, AISI 316L Stainless Steel is compatible with standard crimping sleeves designed for the specific hose type. The fitting is optimized for crimping and intended to be used with dedicated sleeves matched to the hose construction, which ensures a precise mechanical grip and a reliable, leak-free assembly. Its AGR-K design also offers a 60° cone sealing option (in addition to BSPT with Teflon or liquid sealant), providing versatility for different sealing methods and hose systems. Manufactured from AISI 316L stainless steel, it combines corrosion and pressure resistance with a geometry engineered for proper sleeve compression and durable sealing when the correct sleeve and crimping specifications for the hose are used.

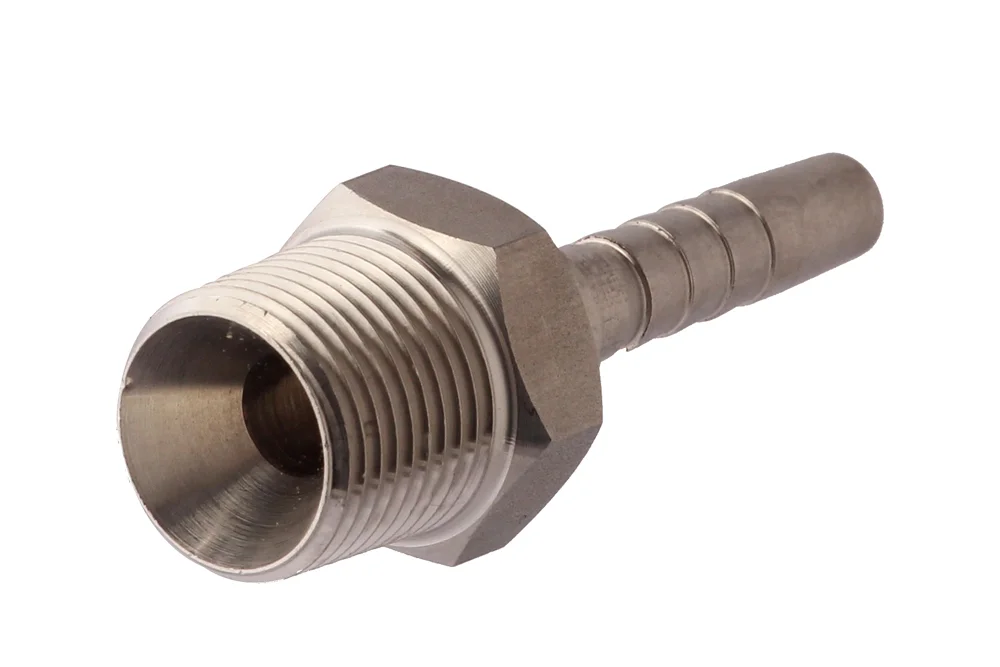

AGR-K Hydraulic End ZBZ130, AISI 316L Stainless Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	30

The standard hydraulic end fitting type Z is engineered for reliable performance in demanding hydraulic and industrial applications, featuring a classic hydraulic tail designed for secure hose connection. Equipped with an external BSPT thread, it ensures tight and durable sealing with the use of Teflon tape or liquid sealant, while also offering the option of sealing on a 60° cone (AGR-K) for added versatility. Optimized for crimping with dedicated sleeves matched to the specific hose type, this fitting guarantees a precise and leak-free assembly. Manufactured from premium AISI 316L stainless steel, it delivers exceptional resistance to corrosion, high pressure, and harsh working environments, making it a long-lasting solution for industries where reliability and safety are paramount. Its robust construction and universal compatibility make it an excellent choice for professionals seeking efficiency, durability, and consistent performance in hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBZ130-02-03-SS	End. GZ 1/8" BSPT, hose 3/16", AISI 316	5		In stock	Enquiry
TI-ZBZ130-02-04-SS	End. GZ 1/8" BSPT, hose 1/4", AISI 316	6		In stock	Enquiry
TI-ZBZ130-04-04-SS	End. GZ 1/4" BSPT, hose 1/4", AISI 316L	6	350	In stock	Enquiry
TI-ZBZ130-04-05-SS	End. GZ 1/4" BSPT, hose 5/16", AISI 316L	8	350	In stock	Enquiry
TI-ZBZ130-04-06-SS	End. GZ 1/4" BSPT, hose 3/8", AISI 316L	10	350	In stock	Enquiry
TI-ZBZ130-06-04-SS	End. GZ 3/8" BSPT, hose 1/4", AISI 316L	6	280	In stock	Enquiry
TI-ZBZ130-06-05-SS	End. GZ 3/8" BSPT, hose 5/16", AISI 316L	8	280	In stock	Enquiry
TI-ZBZ130-06-06-SS	End. GZ 3/8" BSPT, hose 3/8", AISI 316L	10	280	In stock	Enquiry
TI-ZBZ130-08-06-SS	End. GZ 1/2" BSPT, hose 3/8", AISI 316L	10	280	In stock	Enquiry
TI-ZBZ130-08-08-SS	End. GZ 1/2" BSPT, hose 1/2", AISI 316L	12	280	In stock	Enquiry
TI-ZBZ130-08-10-SS	End. GZ 1/2" BSPT, hose 5/8", AISI 316L	16	280	In stock	Enquiry
TI-ZBZ130-12-08-SS	End. GZ 3/4" BSPT, hose 1/2", AISI 316L	12	280	In stock	Enquiry
TI-ZBZ130-12-10-SS	End. GZ 3/4" BSPT, hose 5/8", AISI 316L	16	280	In stock	Enquiry
TI-ZBZ130-12-12-SS	End. GZ 3/4" BSPT, hose 3/4", AISI 316L	20	280	In stock	Enquiry
TI-ZBZ130-16-12-SS	End. GZ 1" BSPT, hose 3/4", AISI 316L	20	280	In stock	Enquiry
TI-ZBZ130-16-16-SS	End. GZ 1" BSPT, hose 1", AISI 316L	25	280	In stock	Enquiry
TI-ZBZ130-20-16-SS	End. GZ 1.1/4" BSPT, hose 1", AISI 316L	25	210	In stock	Enquiry
TI-ZBZ130-20-20-SS	End. GZ 1.1/4" BSPT, hose 1.1/4", AISI 316L	32	210	In stock	Enquiry
TI-ZBZ130-24-20-SS	End. GZ 1.1/2" BSPT, hose 1.1/4", AISI 316L	32	185	In stock	Enquiry
TI-ZBZ130-24-24-SS	End. GZ 1.1/2" BSPT, hose 1.1/2", AISI 316L	38	185	In stock	Enquiry
TI-ZBZ130-32-32-SS	End. GZ 2" BSPT, hose 2", AISI 316L	50	175	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The standard hydraulic end fitting type Z is engineered for reliable performance in demanding hydraulic and industrial applications, featuring a classic hydraulic tail designed for secure hose connection. Equipped with an external BSPT thread, it ensures tight and durable sealing with the use of Teflon tape or liquid sealant, while also offering the option of sealing on a 60° cone (AGR-K) for added versatility. Optimized for crimping with dedicated sleeves matched to the specific hose type, this fitting guarantees a precise and leak-free assembly. Manufactured from premium AISI 316L stainless steel, it delivers exceptional resistance to corrosion, high pressure, and harsh working environments, making it a long-lasting solution for industries where reliability and safety are paramount. Its robust construction and universal compatibility make it an excellent choice for professionals seeking efficiency, durability, and consistent performance in hydraulic systems.
