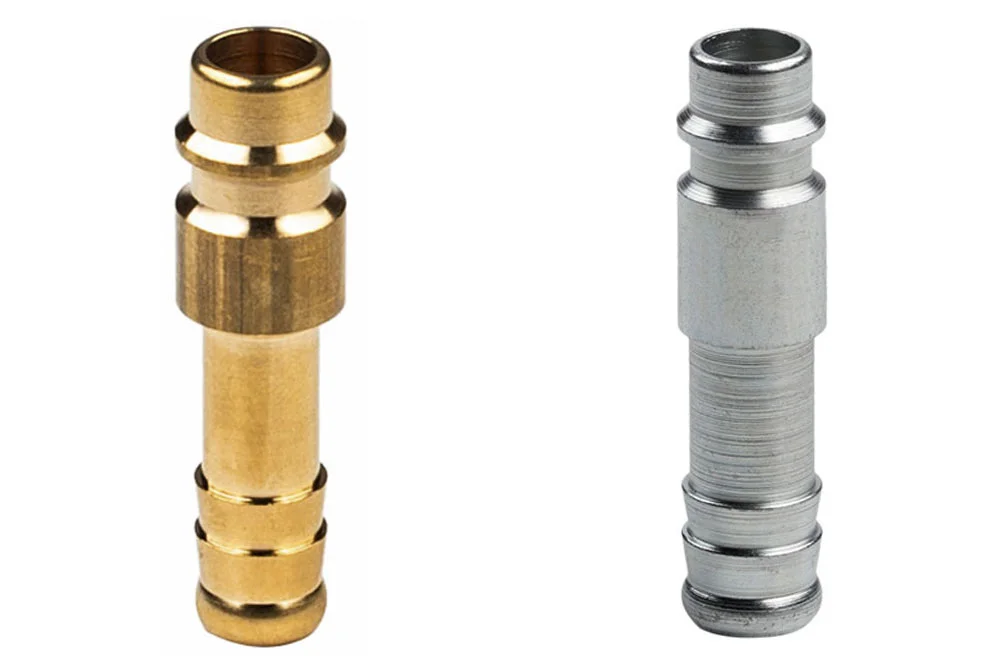

Plug quick coupling for air DN7.2 Eurostandard, without valve, with fitting for hose, 35 bar

Additional information

Material

B – brass (bronze)

Plug quick coupling o popular profile Eurostandard DN7.2 without valve, with serrated fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). W case intensive use, vibration and tools pneumatic recommended is use plugs of carbon steel (smaller wear). quick coupling are interchangeable with all acc. to Eurostandard DN7.2 ÷ 7.8, other manufacturers. Working pressure: up to 35 bar. Material: brass or steel carbon galvanized. Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TP-ES72-WK-04Quick coupling plug DN7.2, for 4 mm hose, brass435In stock0 €
Enquiry
TP-ES72-WK-06Quick coupling plug DN7.2, for 6 mm hose, brass635In stock0 €
Enquiry
TP-ES72-WK-06-STQuick coupling plug DN7.2, for 6 mm hose, galvanized steel635In stock0 €
Enquiry
TP-ES72-WK-08Quick coupling plug DN7.2, for 8 mm hose, brass835In stock0 €
Enquiry
TP-ES72-WK-08-STQuick coupling plug DN7.2, for 8 mm hose, galvanized steel835In stock0 €
Enquiry
TP-ES72-WK-09Quick coupling plug DN7.2, for 9 mm hose, brass835In stock0 €
Enquiry
TP-ES72-WK-09-STQuick coupling plug DN7.2, for 9 mm hose, galvanized steel835In stock0 €
Enquiry
TP-ES72-WK-10Quick coupling plug DN7.2, for 10 mm hose, brass1035In stock0 €
Enquiry
TP-ES72-WK-13Quick coupling plug DN7.2, for 13 mm hose, brass1235In stock0 €
Enquiry
TP-ES72-WK-13-STQuick coupling plug DN7.2, for 13 mm hose, galvanized steel1235In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug quick coupling o popular profile Eurostandard DN7.2 without valve, with serrated fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). W case intensive use, vibration and tools pneumatic recommended is use plugs of carbon steel (smaller wear). quick coupling are interchangeable with all acc. to Eurostandard DN7.2 ÷ 7.8, other manufacturers. Working pressure: up to 35 bar. Material: brass or steel carbon galvanized. Operating temperature: od -20°C up to +100°C.
