Is the Air outlet coupling DN7.2 Eurostandard, double shut-off, hose connection, 16 bar compatible with nitrogen and other non-flammable gases?

Yes. The Air outlet coupling DN7.2 Eurostandard, double shut-off, hose connection, 16 bar is compatible with nitrogen and other non-flammable gases. The product description explicitly states it ensures secure, leak-free connections for compressed air, nitrogen, and other non-flammable gases. Its double shut-off valve design, NBR sealing, and brass/stainless steel construction support safe use up to the specified working pressure (16 bar) and temperature range (-20°C to +100°C). For specific gas applications, pressures, or purity requirements, verify compatibility with applicable standards and consult the supplier if in doubt.

Can the Air outlet coupling DN7.2 Eurostandard, double shut-off, hose connection, 16 bar be used with lubricated compressed air systems without affecting valve seals or performance?

Yes. The Air outlet coupling DN7.2 Eurostandard, double shut-off, hose connection, 16 bar is suitable for use with lubricated compressed air systems. Key reasons: - Seals: It uses high-quality NBR (nitrile) seals, which are compatible with common lubricants used in compressed air systems and offer good resistance to oil and greases. - Materials and durability: Brass body with stainless steel pins and spring provides corrosion and wear resistance that tolerates lubricated environments without degrading valve components. - Valve performance: The integrated double shut-off valve design ensures reliable sealing and controlled flow even when lubrication is present; the mechanism is designed for high flow (734 l/min at Pe=6 bar, Δp=1 bar) and up to 16 bar working pressure. - Operating range: Temperature rating −20°C to +100°C covers typical lubricated system conditions. Recommendation: Verify compatibility of your specific lubricant with NBR (most mineral- and synthetic-based lubricants are compatible). For unusual additives or extreme conditions, test a sample or consult lubricant and seal manufacturers.

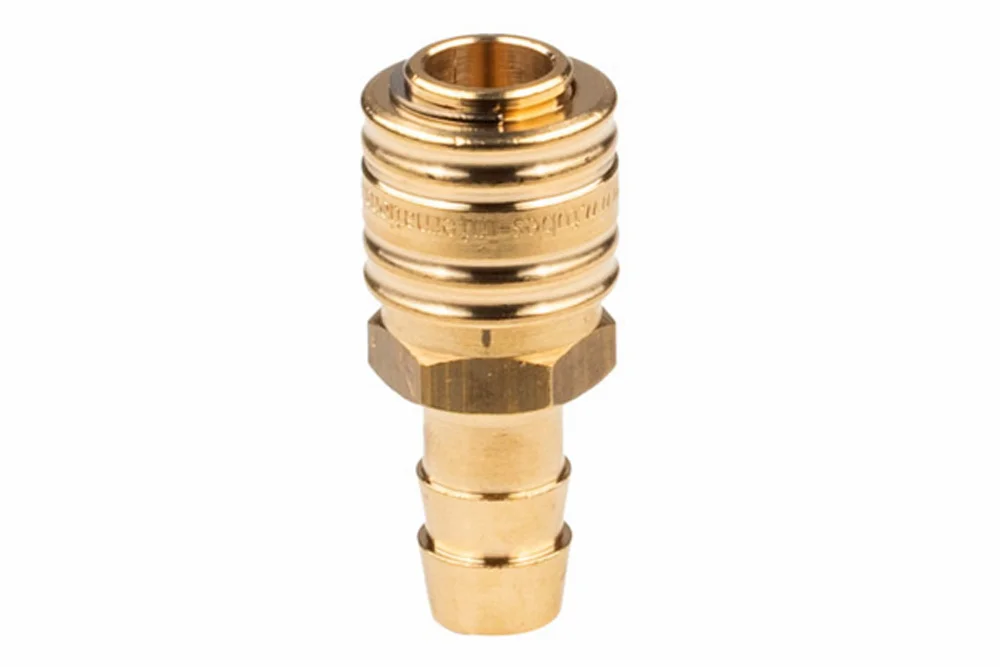

Air outlet coupling DN7.2 Eurostandard, double shut-off, hose connection, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

The quick-release socket with double shut-off is designed for maximum safety and efficiency in pneumatic systems, offering a reliable Eurostandard DN7.2 profile with integrated valve technology. Equipped with a practical hose coupling, it ensures secure and leak-free connections for compressed air, nitrogen, and other non-flammable gases. The double shut-off mechanism, featuring valves in both the socket and the plug, guarantees controlled flow and prevents accidental leaks, while its intuitive one-hand operation up to 8 bar makes daily use exceptionally convenient. Built to withstand demanding conditions, the connector operates at a working pressure of 16 bar and delivers an impressive flow rate of 734 l/min (Pe=6 bar, Δp=1 bar), ensuring optimal performance in industrial applications. Crafted from durable brass with stainless steel pins and spring, and sealed with high-quality NBR, it offers long-lasting resistance to wear, corrosion, and temperature fluctuations ranging from -20°C to +100°C. This robust and versatile solution is ideal for professionals seeking reliability, safety, and efficiency in their pneumatic installations.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72D-GK-06X	Quick coupling socket DN7.2 double shut-off, for 6 mm hose, brass	6	16	In stock	Enquiry
TP-ES72D-GK-08X	Quick coupling socket DN7.2 double shut-off, for 8 mm hose, brass	8	16	In stock	Enquiry
TP-ES72D-GK-09X	Quick coupling socket DN7.2 double shut-off, for 9 mm hose, brass	8	16	In stock	Enquiry
TP-ES72D-GK-10X	Quick coupling socket DN7.2 double shut-off, for 10 mm hose, brass	10	16	In stock	Enquiry
TP-ES72D-GK-13X	Quick coupling socket DN7.2 double shut-off, for 13 mm hose, brass	12	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The quick-release socket with double shut-off is designed for maximum safety and efficiency in pneumatic systems, offering a reliable Eurostandard DN7.2 profile with integrated valve technology. Equipped with a practical hose coupling, it ensures secure and leak-free connections for compressed air, nitrogen, and other non-flammable gases. The double shut-off mechanism, featuring valves in both the socket and the plug, guarantees controlled flow and prevents accidental leaks, while its intuitive one-hand operation up to 8 bar makes daily use exceptionally convenient. Built to withstand demanding conditions, the connector operates at a working pressure of 16 bar and delivers an impressive flow rate of 734 l/min (Pe=6 bar, Δp=1 bar), ensuring optimal performance in industrial applications. Crafted from durable brass with stainless steel pins and spring, and sealed with high-quality NBR, it offers long-lasting resistance to wear, corrosion, and temperature fluctuations ranging from -20°C to +100°C. This robust and versatile solution is ideal for professionals seeking reliability, safety, and efficiency in their pneumatic installations.
