Socket quick coupling for air DN7.2 Eurostandard with valve, angled, with fitting for hose, 35 bar

Additional information

Material

B – brass (bronze)

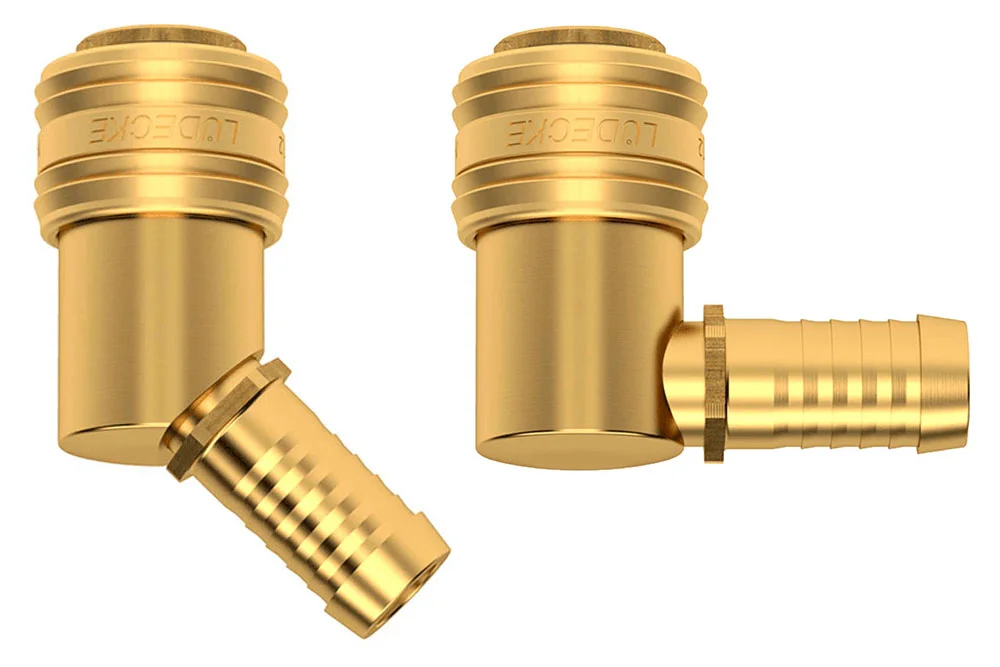

Socket quick coupling o popular profile Eurostandard DN7.2 with valve, angled, with fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). socket occurs in two variants, with serrated fitting for hose inclined under angle 45° or 90°. quick coupling are interchangeable of all quick coupling, other manufacturers acc. to Eurostandard DN7.2 ÷ 7.8. Working pressure: up to 35 bar. Material: brass. sealing: NBR. Flow rate: 1100 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TP-ES72-GK-06-45Socket 45° quick coupling DN7.2, for 6 mm hose, brass635In stock0 €
Enquiry
TP-ES72-GK-06-90Socket 90° quick coupling DN7.2, for 6 mm hose, brass635In stock0 €
Enquiry
TP-ES72-GK-09-45Socket 45° quick coupling DN7.2, for 9 mm hose, brass835In stock0 €
Enquiry
TP-ES72-GK-09-90Socket 90° quick coupling DN7.2, for 9 mm hose, brass835In stock0 €
Enquiry
TP-ES72-GK-13-45Socket 45° quick coupling DN7.2, for 13 mm hose, brass1235In stock0 €
Enquiry
TP-ES72-GK-13-90Socket 90° quick coupling DN7.2, for 13 mm hose, brass1235In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling o popular profile Eurostandard DN7.2 with valve, angled, with fitting for hose, for use in installations pneumatic (air, nitrogen, other non-flammable gases). socket occurs in two variants, with serrated fitting for hose inclined under angle 45° or 90°. quick coupling are interchangeable of all quick coupling, other manufacturers acc. to Eurostandard DN7.2 ÷ 7.8. Working pressure: up to 35 bar. Material: brass. sealing: NBR. Flow rate: 1100 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: od -20°C up to +100°C.
