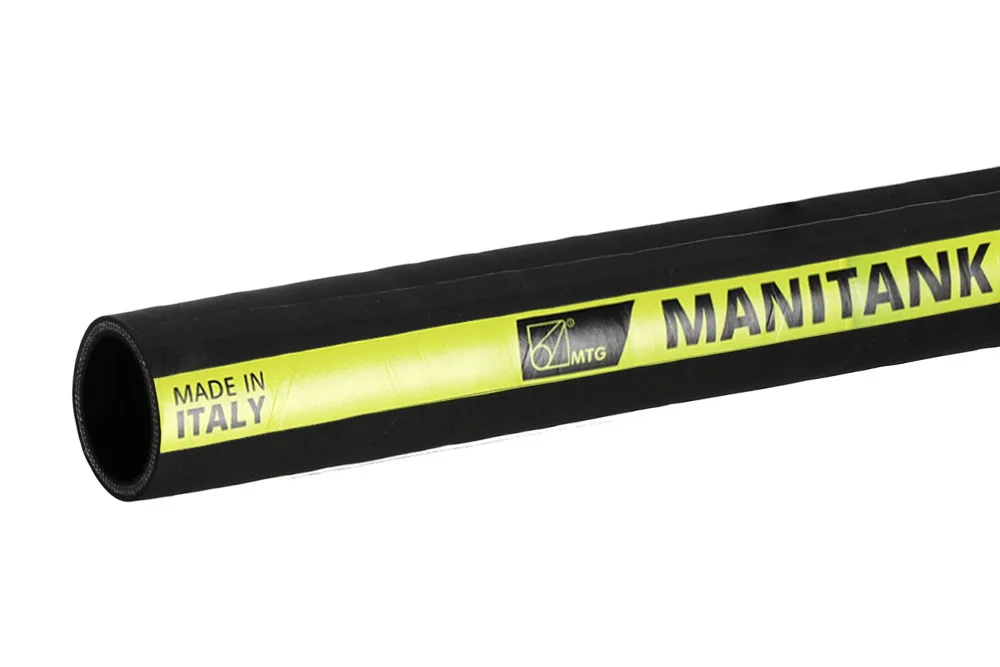

MANITANK AVIO “C” aircraft refueling delivery hose

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

40

Reinforcement

synthetic braid

This high-performance aviation fuel transfer hose is engineered for maximum reliability in direct pressure refueling of aircraft on the ground, as well as for use in airport tankers and dispensers where high vacuum is not required. Specially developed for kerosene-based turbine fuels such as JET A1, aviation gasoline, and fuels containing up to 50% aromatic hydrocarbons, it guarantees safe and efficient fuel handling. The smooth, antistatic NBR inner layer ensures optimal flow and chemical resistance, while the robust reinforcement of high-strength synthetic cord provides exceptional durability under demanding conditions. Its outer layer, made of black antistatic and self-extinguishing CR rubber, offers superior resistance to abrasion, hydrocarbons, and harsh weather, ensuring long service life even in intensive operations. Fully compliant with EN ISO 1825, EN 1361, BS 3158, and EI 1529 standards, this hose meets the strictest aviation requirements, including low electrical resistance between ends (10³ Ω ‹ R ‹ 10⁶ Ω, ISO 8031). With a working pressure of 20 bar and an operating temperature range from -30°C to +70°C, it delivers outstanding performance and safety, making it the ideal solution for professional aviation fuel transfer applications.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MT-MANITANK-AVIO-C-019MANITANK AVIO C hose 19x31 mm2020In stock
Enquiry
MT-MANITANK-AVIO-C-025MANITANK AVIO C hose 25x38.5 mm2520In stock
Enquiry
MT-MANITANK-AVIO-C-032MANITANK AVIO C hose 32x46 mm3220In stock
Enquiry
MT-MANITANK-AVIO-C-038MANITANK AVIO C hose 38x52 mm3820In stock
Enquiry
MT-MANITANK-AVIO-C-050MANITANK AVIO C hose 50x65 mm5020In stock
Enquiry
MT-MANITANK-AVIO-C-063MANITANK AVIO C hose 63.5x81 mm6520In stock
Enquiry
MT-MANITANK-AVIO-C-075MANITANK AVIO C hose 75x93.5 mm7520In stock
Enquiry
MT-MANITANK-AVIO-C-100MANITANK AVIO C hose 100x122 mm10020In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This high-performance aviation fuel transfer hose is engineered for maximum reliability in direct pressure refueling of aircraft on the ground, as well as for use in airport tankers and dispensers where high vacuum is not required. Specially developed for kerosene-based turbine fuels such as JET A1, aviation gasoline, and fuels containing up to 50% aromatic hydrocarbons, it guarantees safe and efficient fuel handling. The smooth, antistatic NBR inner layer ensures optimal flow and chemical resistance, while the robust reinforcement of high-strength synthetic cord provides exceptional durability under demanding conditions. Its outer layer, made of black antistatic and self-extinguishing CR rubber, offers superior resistance to abrasion, hydrocarbons, and harsh weather, ensuring long service life even in intensive operations. Fully compliant with EN ISO 1825, EN 1361, BS 3158, and EI 1529 standards, this hose meets the strictest aviation requirements, including low electrical resistance between ends (10³ Ω ‹ R ‹ 10⁶ Ω, ISO 8031). With a working pressure of 20 bar and an operating temperature range from -30°C to +70°C, it delivers outstanding performance and safety, making it the ideal solution for professional aviation fuel transfer applications.

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

40

Reinforcement

synthetic braid
