Is the Lightweight Polyamide Foam & Spray Gun with Flat Nozzle, AKBO compatible with standard GW 1/2" BSP fittings and safe at pressures up to 12 bar?

Yes. The Lightweight Polyamide Foam & Spray Gun with Flat Nozzle, AKBO features a GW 1/2" BSP inlet connection, making it compatible with standard GW 1/2" BSP fittings. It is also rated for a maximum working pressure of 12 bar, so it is safe to use up to that pressure (operationally optimized at 2.5 bar, with peak performance between 3.5–4 bar).

Can the Lightweight Polyamide Foam & Spray Gun with Flat Nozzle, AKBO be used safely at elevated temperatures up to +50°C during continuous operation?

Yes. The Lightweight Polyamide Foam & Spray Gun with Flat Nozzle, AKBO is rated to withstand operating temperatures up to +50°C and supports a maximum working pressure of 12 bar. Its reinforced fiberglass polyamide PA66 body, stainless steel trigger/spring/valve stem, and EPDM seals and protective cover are specified for durability and reliable leak protection at that temperature, so it can be used safely during continuous operation up to +50°C.

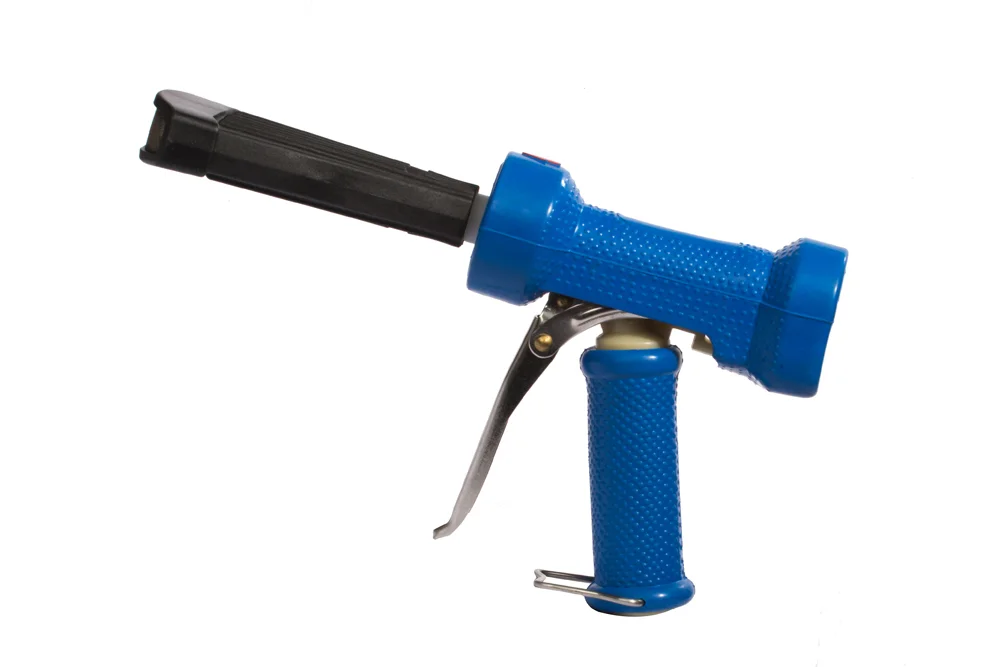

Lightweight Polyamide Foam & Spray Gun with Flat Nozzle, AKBO

Additional information

This lightweight foam and spray gun is engineered for precision and durability, featuring a flat nozzle with rotation capability that ensures optimal coverage at low pressure of 2.5 bar, with peak performance achieved between 3.5 and 4 bar. Crafted from reinforced fiberglass polyamide PA66, it combines strength with reduced weight, making it comfortable for extended use. The trigger, spring, and valve stem are manufactured from high-quality stainless steel, guaranteeing long-lasting resistance to wear and corrosion. A protective blue EPDM rubber cover enhances grip and durability, while EPDM sealing ensures reliable leak protection. Designed with a GW 1/2″ BSP inlet connection, the gun supports a maximum working pressure of 12 bar and withstands operating temperatures up to +50°C, making it a versatile and dependable tool for professional cleaning and spraying applications.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
AK-NLFW2	Light pistol for AKBO lances and nozzles, (inlet) GW 1/2" BSP, (outlet) flat nozzle, PA66, blue	-	12

This lightweight foam and spray gun is engineered for precision and durability, featuring a flat nozzle with rotation capability that ensures optimal coverage at low pressure of 2.5 bar, with peak performance achieved between 3.5 and 4 bar. Crafted from reinforced fiberglass polyamide PA66, it combines strength with reduced weight, making it comfortable for extended use. The trigger, spring, and valve stem are manufactured from high-quality stainless steel, guaranteeing long-lasting resistance to wear and corrosion. A protective blue EPDM rubber cover enhances grip and durability, while EPDM sealing ensures reliable leak protection. Designed with a GW 1/2″ BSP inlet connection, the gun supports a maximum working pressure of 12 bar and withstands operating temperatures up to +50°C, making it a versatile and dependable tool for professional cleaning and spraying applications.
