Is the Aluminum Branch Block with Ø 4-6-8 mm Connections compatible with standard pneumatic fittings and tubing?

Yes. The Aluminum Branch Block with Ø 4-6-8 mm Connections is designed to integrate smoothly with standard pneumatic fittings and tubing sized for 4 mm, 6 mm, and 8 mm diameters. Its anodized aluminum body and common connection dimensions allow straightforward mating with typical push-to-connect fittings, barbed fittings, and compatible tubing used in pneumatic systems. With a working pressure rating up to 12 bar and operating temperature range of -10°C to +80°C, it supports the pressure and thermal conditions of standard pneumatic installations. Ensure you match the exact connection type (e.g., metric OD) and use compatible seals or ferrules where required for leak-free performance.

Aluminum Branch Block with Ø 4-6-8 mm Connections

Q: Can the Aluminum Branch Block with Ø 4-6-8 mm Connections be mounted in confined spaces without affecting airflow or pressure performance?

Yes — the Aluminum Branch Block with Ø 4-6-8 mm Connections can be mounted in confined spaces without adversely affecting airflow or pressure performance, provided a few standard installation considerations are observed. Its compact anodized aluminum construction and multiple mounting holes allow secure, space-efficient placement. The block is rated for up to 12 bar and an operating range of -10°C to +80°C, so when installed in a tight area that does not obstruct inlet/outlet ports or create excessive bends or restrictions in connected tubing, the distribution of compressed air to multiple branches remains smooth and consistent. Ensure that: - Tubing runs to and from the block are as short and straight as practical, avoiding sharp bends or kinks. - Port access is sufficient for proper sealing and quick connection/disconnection. - Ambient temperature and ventilation in the confined space stay within the specified operating range. - Mounting does not compress or deform the block or fittings. With these precautions, the Aluminum Branch Block with Ø 4-6-8 mm Connections will maintain airflow and pressure performance even when installed in limited spaces.

Accessories for pneumatic fittings, All products/

Additional information

Material	AL – aluminum

The distribution rail with O 4-6-8 mm connections is a versatile solution designed for efficient air management in pneumatic systems, enabling the smooth distribution of compressed air to multiple branches simultaneously. Crafted from high-quality anodized aluminum, it ensures durability, resistance to corrosion, and long-lasting performance even in demanding industrial environments. With a working pressure capacity of up to 12 bar and an operating temperature range from -10°C to +80°C, it guarantees reliable operation under varying conditions. The rail is equipped with additional mounting holes, allowing secure and flexible installation exactly where it is needed within the system. Its compact design and robust construction make it an ideal choice for optimizing pneumatic installations, improving workflow efficiency, and ensuring consistent air supply across different application points. This practical and durable component is a smart investment for professionals seeking reliability, precision, and easy integration into existing setups.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-7304106	Distribution block with R26 connectors, 2 x BSP 1/8" female thread, 6 x 4 mm hose.	-	12	In stock	Enquiry
MW-7304112	Distribution block with R26 connectors, 2 x BSP 1/8" female thread, 12 x 4 mm hose	-	12	In stock	Enquiry

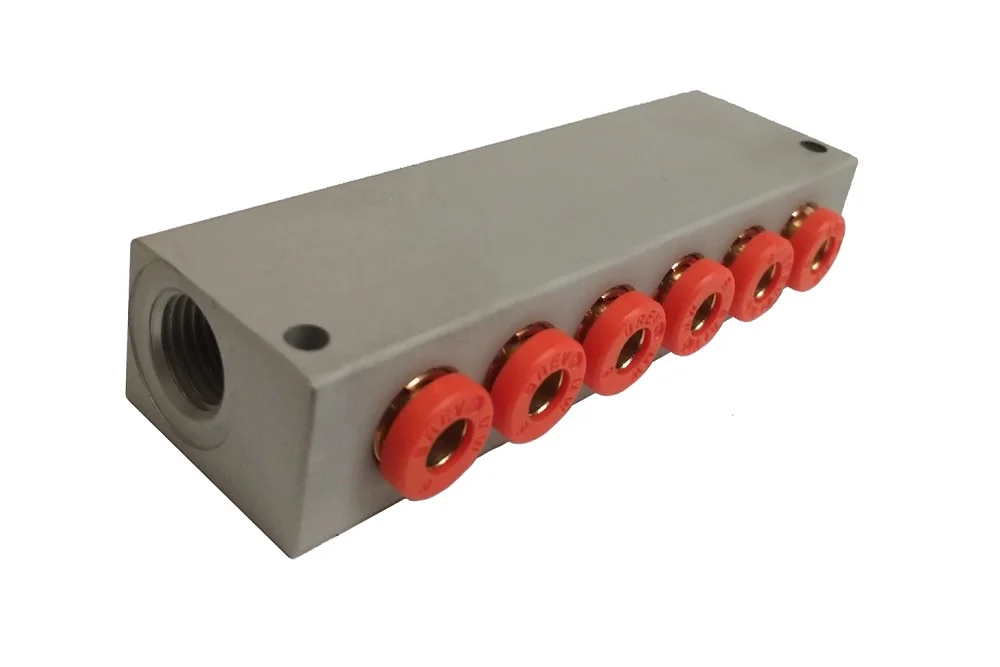

MW-7306206	Distribution block with R26 connectors, 2 x BSP 1/4" female thread, 6 x 6 mm hose.	-	12	In stock	Enquiry
MW-7306212	Distribution block with R26 connectors, 2 x BSP 1/4" female thread, 12 x 6 mm hose	-	12	In stock	Enquiry
MW-7308306	Distribution block with R26 connectors, 2 x BSP 3/8" female threads, 6 x 8 mm hose.	-	12	In stock	Enquiry
MW-7308312	Distribution block with R26 connectors, 2 x BSP 3/8" female thread, 12 x 8 mm hose	-	12	In stock	Enquiry
