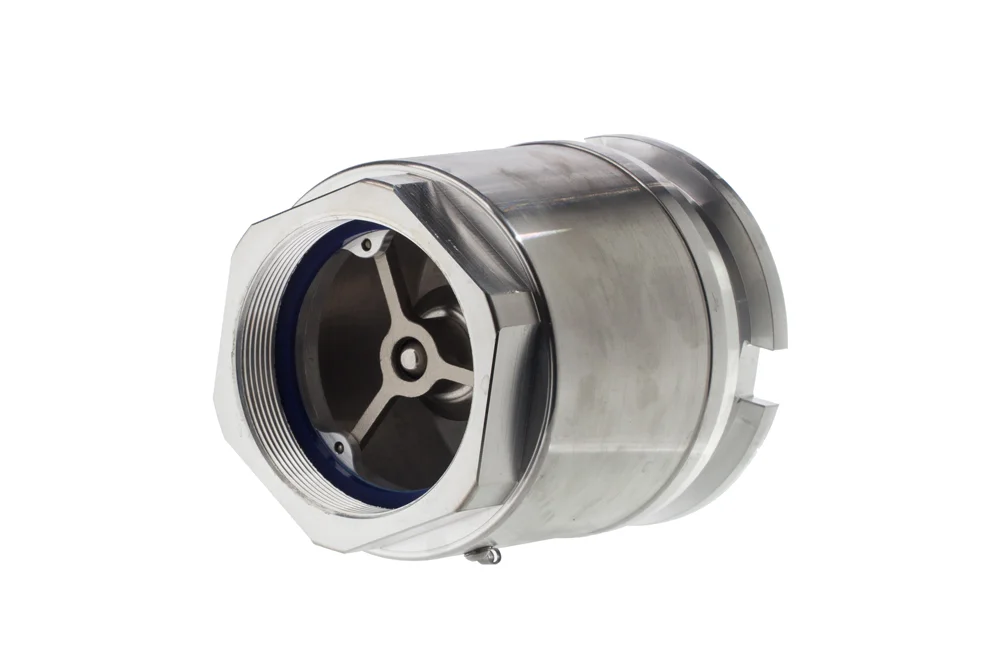

Plug coupling dry-break DDC with female thread, aluminum

Additional information

Material

AL – aluminum

Plug coupling dry-break DDC with thread internal BSP with aluminum Widely used in transport road, railway, marine, aviation and in industry petrochemical, chemical and pharmaceutical. installed po side tanker. The design plug based is on a valve piston (opens during connecting and closes at disconnection coupling, co eliminates leakage liquids). meets all requirements regarding safety, protection environment natural and reliability at transferring hazardous, toxic or costly liquids. made acc. to standard NATO STANAG 3756 (DDC 2″, 2.1/2″, 3″ and 4″) and ATOFINA SGM 2049.TUY.C. (DDC 2″, 3″). coupling meet requirements ATEX, TDT, ADR, RID, IMDG, the directive pressure 97/23/WE. has also recommendation council european industry chemical CEFIC. sealing: O-ring (Viton), gasket flat (PTFE). Working pressure: 10 bar. Operating temperature: od -25°C up to +80°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MK-DDC-T414A1101BPlug DDC 119 mm with 3" BSP female, Al, Viton, PUR-10In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Plug coupling dry-break DDC with thread internal BSP with aluminum Widely used in transport road, railway, marine, aviation and in industry petrochemical, chemical and pharmaceutical. installed po side tanker. The design plug based is on a valve piston (opens during connecting and closes at disconnection coupling, co eliminates leakage liquids). meets all requirements regarding safety, protection environment natural and reliability at transferring hazardous, toxic or costly liquids. made acc. to standard NATO STANAG 3756 (DDC 2″, 2.1/2″, 3″ and 4″) and ATOFINA SGM 2049.TUY.C. (DDC 2″, 3″). coupling meet requirements ATEX, TDT, ADR, RID, IMDG, the directive pressure 97/23/WE. has also recommendation council european industry chemical CEFIC. sealing: O-ring (Viton), gasket flat (PTFE). Working pressure: 10 bar. Operating temperature: od -25°C up to +80°C.

Additional information

Material

AL – aluminum
