Can PINCLAMP Aluminum Shell Bracket, RS Type be installed without special tools and still meet EN 14420-3 pressure ratings up to 25 bar?

Yes. PINCLAMP Aluminum Shell Bracket, RS Type can be installed without special tools: installation is achieved by tightening the bracket in a vice and driving in the included stainless-steel mounting pin, so no complex or specialized tools are required. When used with a hose and hose end properly selected and assembled in accordance with EN 14420-3, the clamp will meet the standard’s working pressure capacity and withstand pressures up to 25 bar.

Can PINCLAMP Aluminum Shell Bracket, RS Type achieve EN 14420-3 compliance and 25 bar performance when installed using only a vice and the supplied stainless steel mounting pin?

Yes — PINCLAMP Aluminum Shell Bracket, RS Type can achieve EN 14420-3 compliance and 25 bar performance when installed using only a vice and the supplied stainless steel mounting pin, provided two conditions are met: 1) the clamp is used with a hose and hose end selected and fitted in accordance with EN 14420-3 (correct type, size, material and flange compatibility), and 2) installation follows the prescribed method (tightening in a vice and proper driving of the supplied stainless steel mounting pin). The product description explicitly states that, when paired with a properly selected hose and end per EN 14420-3, the clamp withstands working pressures up to 25 bar. Ensure you verify hose/end conformity to EN 14420-3 and perform the vice-and-pin assembly correctly to achieve the stated performance and compliance.

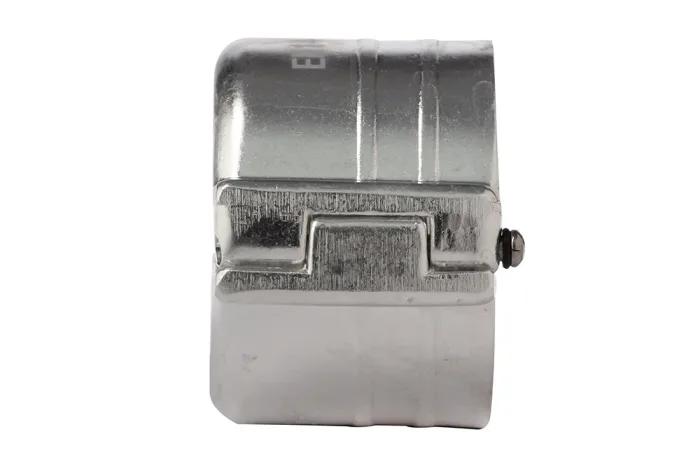

PINCLAMP Aluminum Shell Bracket, RS Type

Additional information

Material	AL – aluminum

The aluminum shell clamp is a reliable solution for fastening industrial hoses, designed to ensure secure connections on both smooth and corrugated hose ends with the added protection of a flange. Its innovative closure system, achieved by tightening in a vice and driving in the included stainless steel mounting pin, guarantees durability and ease of installation without the need for complex tools. Compared to traditional screw-type clamps, it offers significantly smaller external dimensions, making it ideal for applications where space efficiency and streamlined design are essential. Manufactured from high-quality aluminum with a robust stainless steel pin, the clamp delivers long-lasting performance even under demanding conditions. When paired with a properly selected hose and end in accordance with EN 14420-3, it withstands working pressures of up to 25 bar, ensuring safety and reliability in industrial environments. This combination of compact design, strength, and ease of use makes it a practical and cost-effective choice for professionals seeking secure hose connections with minimal maintenance requirements.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
RS-634050008040	PINCLAMP shell clamp 50x8 mm, Al	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The aluminum shell clamp is a reliable solution for fastening industrial hoses, designed to ensure secure connections on both smooth and corrugated hose ends with the added protection of a flange. Its innovative closure system, achieved by tightening in a vice and driving in the included stainless steel mounting pin, guarantees durability and ease of installation without the need for complex tools. Compared to traditional screw-type clamps, it offers significantly smaller external dimensions, making it ideal for applications where space efficiency and streamlined design are essential. Manufactured from high-quality aluminum with a robust stainless steel pin, the clamp delivers long-lasting performance even under demanding conditions. When paired with a properly selected hose and end in accordance with EN 14420-3, it withstands working pressures of up to 25 bar, ensuring safety and reliability in industrial environments. This combination of compact design, strength, and ease of use makes it a practical and cost-effective choice for professionals seeking secure hose connections with minimal maintenance requirements.
