What is the operating pressure, temperature range, and electrical rating of the Aluminum Float Level Gauge with Sensor, APWE?

Aluminum Float Level Gauge with Sensor, APWE — Operating pressure, temperature range, and electrical rating: - Operating pressure: maximum 2 bar - Temperature range: +5°C to +80°C - Electrical rating: up to 48 V AC/DC, 0.5 A; protection class IP65

How does the BANJO-type mounting screw design improve installation and leak prevention on the Aluminum Float Level Gauge with Sensor, APWE?

How does the BANJO-type mounting screw design improve installation and leak prevention on the Aluminum Float Level Gauge with Sensor, APWE? The BANJO-type mounting screws on the Aluminum Float Level Gauge with Sensor, APWE provide a compact, robust path for oil to enter the gauge while minimizing leak risk and simplifying installation. Their key benefits: - Integrated flow channel: The screws incorporate openings that allow oil to pass directly into the gauge body, eliminating the need for additional piping or complex fittings and reducing potential leak points. - Secure mechanical sealing: BANJO screws clamp tightly against the tank wall and gauge housing, creating a reliable metal-to-metal or gasket-assisted seal that resists vibration and pressure up to the device’s 2 bar rating. - Space-efficient mounting: The low-profile, single-point attachment reduces installation complexity and alignment issues, enabling quicker, more consistent assembly and fewer opportunities for improper sealing. - Durable construction: Made of robust materials compatible with the APWE’s polyamide/aluminum construction, the screws maintain sealing integrity over time and under temperature variation (+5°C to +80°C). - Serviceability: The design allows easy removal and reinstallation for inspection or maintenance without disturbing surrounding connections, lowering the chance of inadvertent leaks during service. Together, these features ensure secure, efficient oil flow into the gauge and enhance leak prevention for reliable long-term operation.

Aluminum Float Level Gauge with Sensor, APWE

All products, Other high-pressure accessories/

Additional information

Material	AL – aluminum

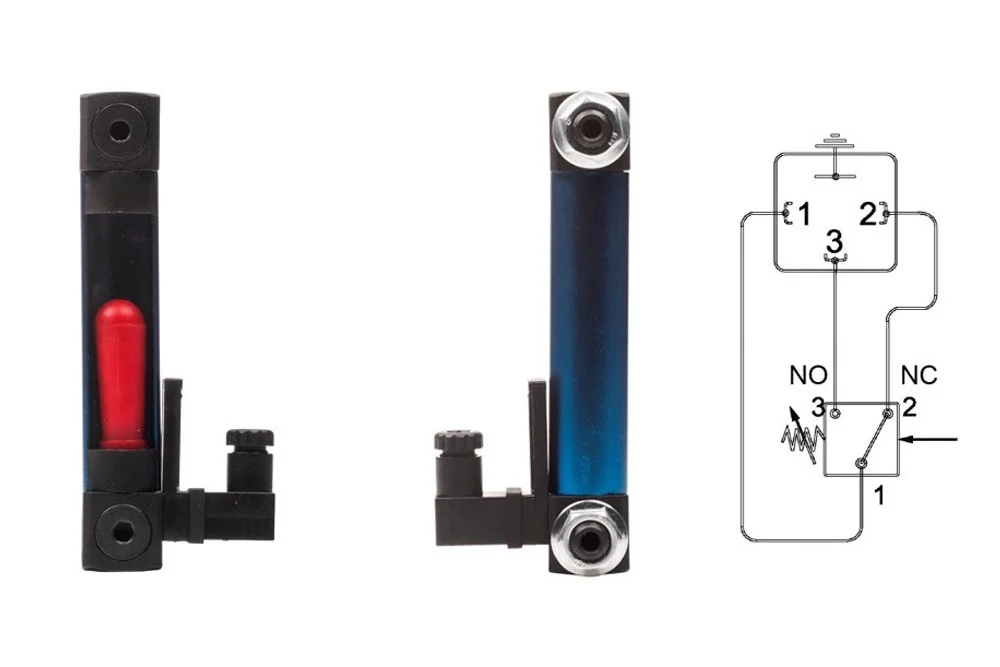

The level gauge is a reliable solution for precise monitoring of hydraulic oil levels, designed for side-wall installation on tanks. Its integrated float automatically rises with the oil surface, ensuring continuous and accurate indication of the fluid status, while a clear signal is triggered when the minimum level is reached. Oil flows into the gauge through openings in robust BANJO-type mounting screws, guaranteeing secure and efficient operation. The device is manufactured from high-quality materials: a durable polyamide body, a solid aluminum housing, and a transparent polymethyl methacrylate inspection window for easy visual control. With a maximum operating pressure of 2 bar, electrical signaling capacity of up to 48V AC/DC and 0.5 A, and IP65 protection class, it offers dependable performance even in demanding industrial environments. Designed to operate within a temperature range of +5°C to +80°C, this level gauge combines durability, precision, and safety, making it an essential component for maintaining optimal efficiency and protection of hydraulic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AH-APWE-02	Level gauge, D=127 mm, max. 48V	-	-	In stock	0 €		Enquiry
AH-APWE-03	Level gauge, D=254 mm, max. 48V	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The level gauge is a reliable solution for precise monitoring of hydraulic oil levels, designed for side-wall installation on tanks. Its integrated float automatically rises with the oil surface, ensuring continuous and accurate indication of the fluid status, while a clear signal is triggered when the minimum level is reached. Oil flows into the gauge through openings in robust BANJO-type mounting screws, guaranteeing secure and efficient operation. The device is manufactured from high-quality materials: a durable polyamide body, a solid aluminum housing, and a transparent polymethyl methacrylate inspection window for easy visual control. With a maximum operating pressure of 2 bar, electrical signaling capacity of up to 48V AC/DC and 0.5 A, and IP65 protection class, it offers dependable performance even in demanding industrial environments. Designed to operate within a temperature range of +5°C to +80°C, this level gauge combines durability, precision, and safety, making it an essential component for maintaining optimal efficiency and protection of hydraulic systems.
