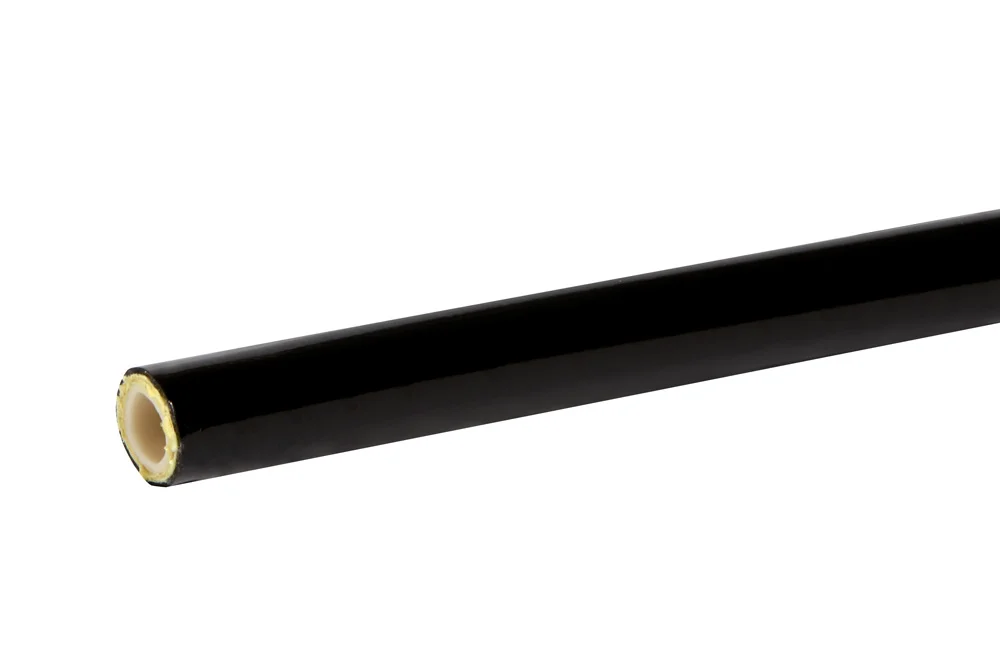

Thermoplastic Hose Reinforced with Aramid Braid F0220

Additional information

Material

PEE – polyester

Maximum operating temperature [°C]

93

Minimum operating temperature [°C]

-40

Vacuum resistance

check

This lightweight and highly flexible hose is engineered for maximum performance in demanding hydraulic oil systems, as well as for use with gases, compressed air, fuels, and water-based fluids. Built to meet SAE 100R8 and ISO 3949-R8 standards (excluding DN8), it features a durable polyester inner layer, reinforced with a robust double aramid braid for exceptional strength and reliability under pressure. The outer layer, crafted from micro-perforated polyurethane, ensures excellent resistance to abrasion and environmental factors, extending service life even in intensive applications. With a working pressure range from 140 bar up to 362 bar, depending on the diameter, this hose guarantees consistent efficiency and safety across a wide spectrum of industrial uses. Its broad operating temperature range, from -40°C to +93°C (and up to +65°C for water and air), makes it a versatile solution for both extreme cold and high-heat environments. Designed for professionals who demand durability, flexibility, and uncompromising performance, this hose delivers reliability that keeps operations running smoothly and efficiently.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MC-F0220A-04Thermoplastic hose F0220A 1/8"4362In stock
Enquiry
MC-F0220B-05Thermoplastic hose F0220B 3/16"5362In stock
Enquiry
MC-F0220C-06Thermoplastic hose F0220C 1/4"6362In stock
Enquiry
MC-F0220D-08Thermoplastic hose F0220D 5/16"8350In stock
Enquiry
MC-F0220E-10Thermoplastic hose F0220E 3/8"10300In stock
Enquiry
MC-F0220F-13Thermoplastic hose F0220F 1/2"12250In stock
Enquiry
MC-F0220G-16Thermoplastic hose F0220G 5/8"16200In stock
Enquiry
MC-F0220H-19Thermoplastic hose F0220H 3/4"20162In stock
Enquiry
MC-F0220I-26Thermoplastic hose F0220I 1"25140In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This lightweight and highly flexible hose is engineered for maximum performance in demanding hydraulic oil systems, as well as for use with gases, compressed air, fuels, and water-based fluids. Built to meet SAE 100R8 and ISO 3949-R8 standards (excluding DN8), it features a durable polyester inner layer, reinforced with a robust double aramid braid for exceptional strength and reliability under pressure. The outer layer, crafted from micro-perforated polyurethane, ensures excellent resistance to abrasion and environmental factors, extending service life even in intensive applications. With a working pressure range from 140 bar up to 362 bar, depending on the diameter, this hose guarantees consistent efficiency and safety across a wide spectrum of industrial uses. Its broad operating temperature range, from -40°C to +93°C (and up to +65°C for water and air), makes it a versatile solution for both extreme cold and high-heat environments. Designed for professionals who demand durability, flexibility, and uncompromising performance, this hose delivers reliability that keeps operations running smoothly and efficiently.

Additional information

Material

PEE – polyester

Maximum operating temperature [°C]

93

Minimum operating temperature [°C]

-40

Vacuum resistance

check

Do you need a larger quantity of products or a bespoke quote?
