Does the Reflective Heat Shield Roll – PYREFLECT Aramid Fabric Blanket reflect over 90% of radiant heat and withstand continuous temperatures up to +343°C?

Yes. The Reflective Heat Shield Roll – PYREFLECT Aramid Fabric Blanket reflects over 90% of radiant heat and is rated for continuous operation up to +343°C, with short-term peak resistance up to +538°C.

Can the Reflective Heat Shield Roll – PYREFLECT Aramid Fabric Blanket be used on vehicle exhaust systems and maintain performance under intermittent temperature peaks up to +538°C?

Yes. Reflective Heat Shield Roll – PYREFLECT Aramid Fabric Blanket is suitable for use on vehicle exhaust systems and will maintain performance under intermittent temperature peaks up to +538°C. It is engineered from aramid fabric laminated with aluminum foil to reflect over 90% of radiant energy, resist abrasion, water and oil, and provide flame resistance. Its continuous operating temperature is up to +343°C with the capability to withstand short-term temperature spikes up to +538°C, making it appropriate for demanding automotive exhaust applications where intermittent high-temperature exposure occurs. Ensure correct installation and secure fastening to accommodate thermal cycling and prevent mechanical damage for optimal longevity and performance.

A guard thermal reflective in the molds roll with fabric aramid PYREFLECT BLANKET

All products, Covers/

Additional information

Maximum operating temperature [°C]	343
Standard length [m]	100

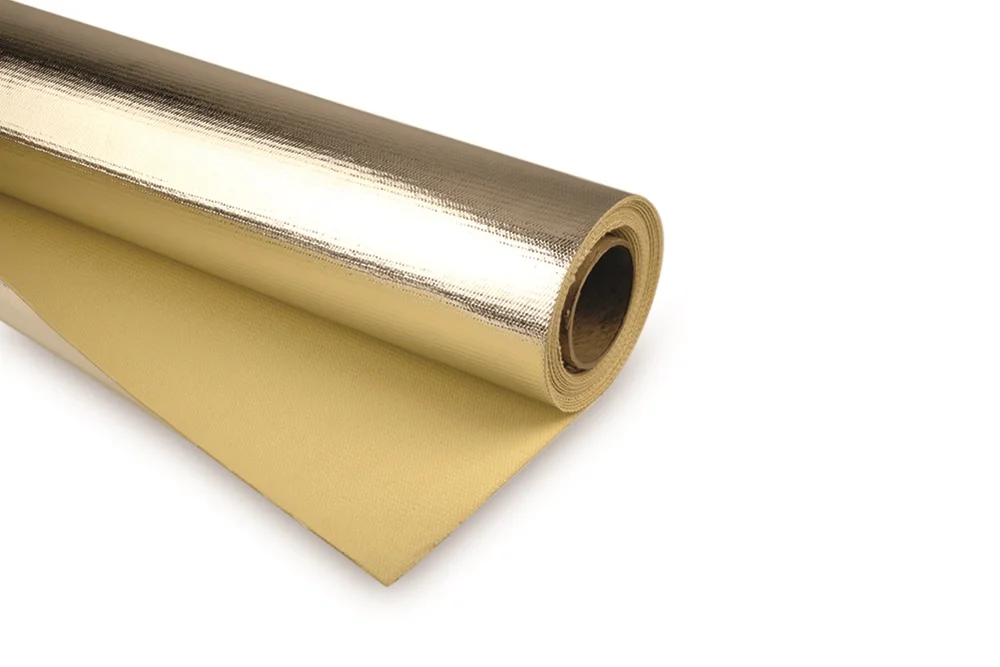

Thermal A guard reflective in the molds rolls or shorter sheets, o basis weight 678 g/m 2, designed for reflecting above 90% energy heat radiation. used in cases, when radiating heat (radiation infrared) must be stopped and reflected. resistant to abrasion, water and oil. good resistance to flame. A guard Available o wide roll 1016 mm and 1525 mm. Material: fabric aramid, foil aluminum. Operating temperature: up to +343°C (momentarily up to +538°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
FQ-PRFB20-1016	Guard PYREFLECT BLANKET 1016 mm	-	-	In stock	0 €		Enquiry
FQ-PRFB20-1525	Guard PYREFLECT BLANKET 1525 mm	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Thermal A guard reflective in the molds rolls or shorter sheets, o basis weight 678 g/m 2, designed for reflecting above 90% energy heat radiation. used in cases, when radiating heat (radiation infrared) must be stopped and reflected. resistant to abrasion, water and oil. good resistance to flame. A guard Available o wide roll 1016 mm and 1525 mm. Material: fabric aramid, foil aluminum. Operating temperature: up to +343°C (momentarily up to +538°C).
