Is the ECODORA E-530 Automatic Hose Reel, Carbon Steel Construction ATEX-certified for use in explosive atmospheres?

Yes. The ECODORA E-530 Automatic Hose Reel, Carbon Steel Construction is ATEX-certified for use in potentially explosive atmospheres. It is fully compliant with ATEX directive 94/9 IIB 2GD c T4 T135°C X, ensuring safe operation in such environments.

Can the ECODORA E-530 Automatic Hose Reel, Carbon Steel Construction, handle high-temperature fluids up to +130°C and which seal materials are used for temperature and chemical resistance?

Yes. The ECODORA E-530 Automatic Hose Reel, Carbon Steel Construction, is designed for hot fluids and is rated to handle temperatures up to +130°C (note: this temperature rating applies to the reel’s rotating connection and seals; the hose itself must be selected separately to match fluid temperature). Sealing and materials: - Rotating connection: AISI 304 stainless steel with Viton (FKM) sealing — provides excellent chemical resistance and high-temperature performance up to +130°C. - Drum and structure: powder-coated carbon steel for durability. - ATEX compliance: certified to 94/9/EC IIB 2GD c T4 T135°C X for safe use in potentially explosive atmospheres. Choose a hose compatible with +130°C and your specific fluid/chemical to ensure full system compatibility.

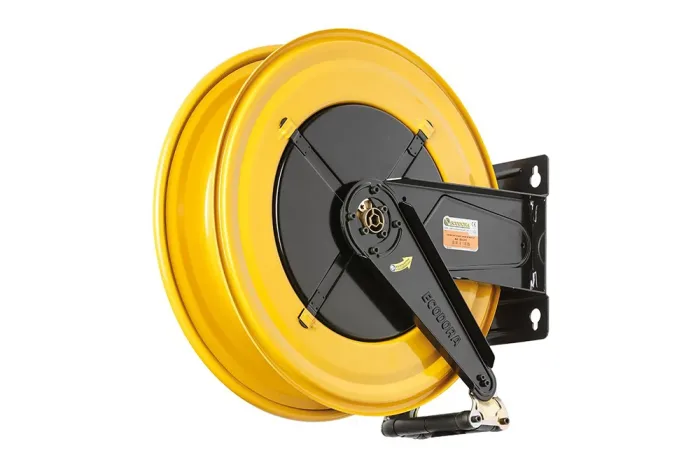

ECODORA E-530 Automatic Hose Reel, Carbon Steel Construction

All products, Spring-driven hose reels/

Additional information

Material	CS – steel (cast iron)
Maximum operating temperature [°C]	130

The automatic drum hose reel is a durable and versatile solution designed for use with cold and hot water, oil, lubricants, and various other media, ensuring reliable performance even in demanding industrial environments. Equipped with a retractable spring tested for 25,000 winding and unwinding cycles, it guarantees long-lasting efficiency and reduced maintenance needs. Fully compliant with ATEX directive 94/9 IIB 2GD c T4 T135°C X, the reel offers safe operation in potentially explosive atmospheres. The robust drum, made of powder-coated carbon steel, is complemented by a high-quality rotating connection in AISI 304 stainless steel with viton sealing, ensuring excellent resistance to wear, chemicals, and high temperatures up to +130°C (without hose). For added convenience, the reel includes a hose bumper, while the hose itself can be selected and ordered separately to match specific requirements. Optional rotating or fixed suspension systems allow quick disassembly, for example during seasonal downtime, making the reel highly adaptable to different working conditions. This combination of durability, safety, and flexibility makes it an ideal choice for professional applications where reliability and efficiency are essential.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
ED-530-15	E-530 drum for 1" hose / 8 m, carbon steel	25	20
ED-530-20	E-530 drum for 1/2" hose / 25 m, carbon steel	12	150
ED-530-35	E-530 drum for 3/8" hose / 25 m, carbon steel	10	400

The automatic drum hose reel is a durable and versatile solution designed for use with cold and hot water, oil, lubricants, and various other media, ensuring reliable performance even in demanding industrial environments. Equipped with a retractable spring tested for 25,000 winding and unwinding cycles, it guarantees long-lasting efficiency and reduced maintenance needs. Fully compliant with ATEX directive 94/9 IIB 2GD c T4 T135°C X, the reel offers safe operation in potentially explosive atmospheres. The robust drum, made of powder-coated carbon steel, is complemented by a high-quality rotating connection in AISI 304 stainless steel with viton sealing, ensuring excellent resistance to wear, chemicals, and high temperatures up to +130°C (without hose). For added convenience, the reel includes a hose bumper, while the hose itself can be selected and ordered separately to match specific requirements. Optional rotating or fixed suspension systems allow quick disassembly, for example during seasonal downtime, making the reel highly adaptable to different working conditions. This combination of durability, safety, and flexibility makes it an ideal choice for professional applications where reliability and efficiency are essential.
