Is the Ball Valve 1/2", Quick Coupling Seat DN11.8, Stainless Steel BALR compatible with standard lances and nozzles and safe under 60 bar pressure?

Yes. The Ball Valve 1/2", Quick Coupling Seat DN11.8, Stainless Steel BALR is compatible with standard lances and nozzles when used with quick couplings (it includes a DN11.8 quick coupling socket and a BSP female thread with flat Viton gasket for secure connections). It is engineered for safety—including a mechanism to prevent accidental opening if the lever is dropped and a protective EPDM rubber cover—and is rated for a working pressure up to 60 bar and temperatures up to +95°C, making it safe for use at or below 60 bar.

Can the Ball Valve 1/2", Quick Coupling Seat DN11.8, Stainless Steel BALR be used with chemical detergents and foam without degrading the EPDM cover or Viton gasket?

Yes. The Ball Valve 1/2", Quick Coupling Seat DN11.8, Stainless Steel BALR is designed for professional use with water, cleaning agents and foam and is suitable for chemical detergents and foaming agents typically used in cleaning applications. Its construction features AISI 304 stainless steel for corrosion resistance, an EPDM rubber cover that protects the valve and floor, and a flat Viton (FKM) gasket in the BSP female thread for secure, chemical-resistant sealing. Operating limits of up to 60 bar and +95°C further support use under demanding cleaning conditions. Notes and caveats: - EPDM is generally resistant to many detergents, soaps and hot water but can be attacked by certain solvents, oils and strong oxidizers. - Viton (FKM) offers superior resistance to a wide range of aggressive chemicals, oils and fuels compared with EPDM, but compatibility should be checked for specific aggressive solvents or specialty chemicals. - For confirmation with a particular detergent or concentrated chemical/foam formulation, consult the chemical supplier’s compatibility chart or perform a compatibility test to ensure long-term durability.

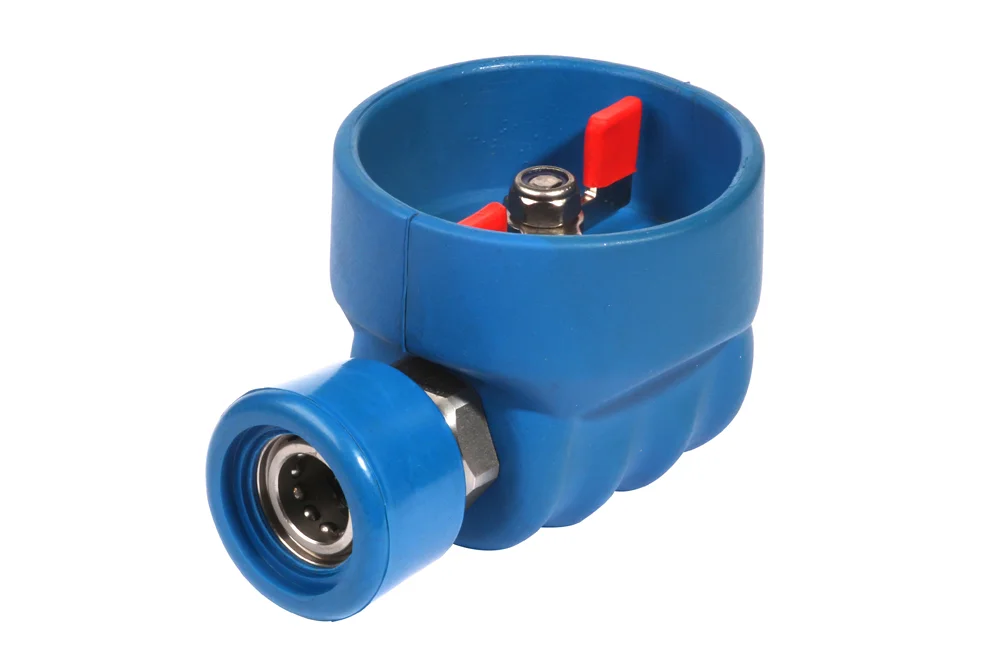

Ball Valve 1/2″, Quick Coupling Seat DN11.8, Stainless Steel BALR

Additional information

Material	SS – stainless steel

The 1/2″ stainless steel ball valve is a versatile and durable solution designed for professional applications with water, cleaning agents, and foam. It can be used as a standalone component or combined with quick couplings, enabling effortless connection to a wide range of lances and nozzles for maximum flexibility. Engineered with safety in mind, the valve is equipped with a mechanism that prevents accidental opening if the lever is dropped, ensuring reliable operation in demanding environments. A robust EPDM rubber cover provides additional protection, safeguarding both the valve and the floor from potential damage in case of impact. The connection system includes a quick coupling socket DN11.8 integrated into the EPDM cover, as well as a BSP female thread with a flat Viton gasket for secure and leak-free assembly. Manufactured from high-quality AISI 304 stainless steel, the valve guarantees long-lasting resistance to corrosion and wear. With a working pressure of up to 60 bar and an operating temperature tolerance reaching +95°C, it delivers consistent performance even under intensive use. This makes it an ideal choice for industries requiring reliability, safety, and efficiency in their cleaning and fluid handling processes.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AK-BALRCP1-BL	AKBO ball valve, rubber cover, 1/2" BSP thread, DN11.8 socket in cover, AISI 304, blue	12	60	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 1/2″ stainless steel ball valve is a versatile and durable solution designed for professional applications with water, cleaning agents, and foam. It can be used as a standalone component or combined with quick couplings, enabling effortless connection to a wide range of lances and nozzles for maximum flexibility. Engineered with safety in mind, the valve is equipped with a mechanism that prevents accidental opening if the lever is dropped, ensuring reliable operation in demanding environments. A robust EPDM rubber cover provides additional protection, safeguarding both the valve and the floor from potential damage in case of impact. The connection system includes a quick coupling socket DN11.8 integrated into the EPDM cover, as well as a BSP female thread with a flat Viton gasket for secure and leak-free assembly. Manufactured from high-quality AISI 304 stainless steel, the valve guarantees long-lasting resistance to corrosion and wear. With a working pressure of up to 60 bar and an operating temperature tolerance reaching +95°C, it delivers consistent performance even under intensive use. This makes it an ideal choice for industries requiring reliability, safety, and efficiency in their cleaning and fluid handling processes.
